1987 Suzuki GSXR50 Front Caliper Diagram

← All diagrams

Find the part on the Front Caliper diagram for your 1987 Suzuki GSXR50, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

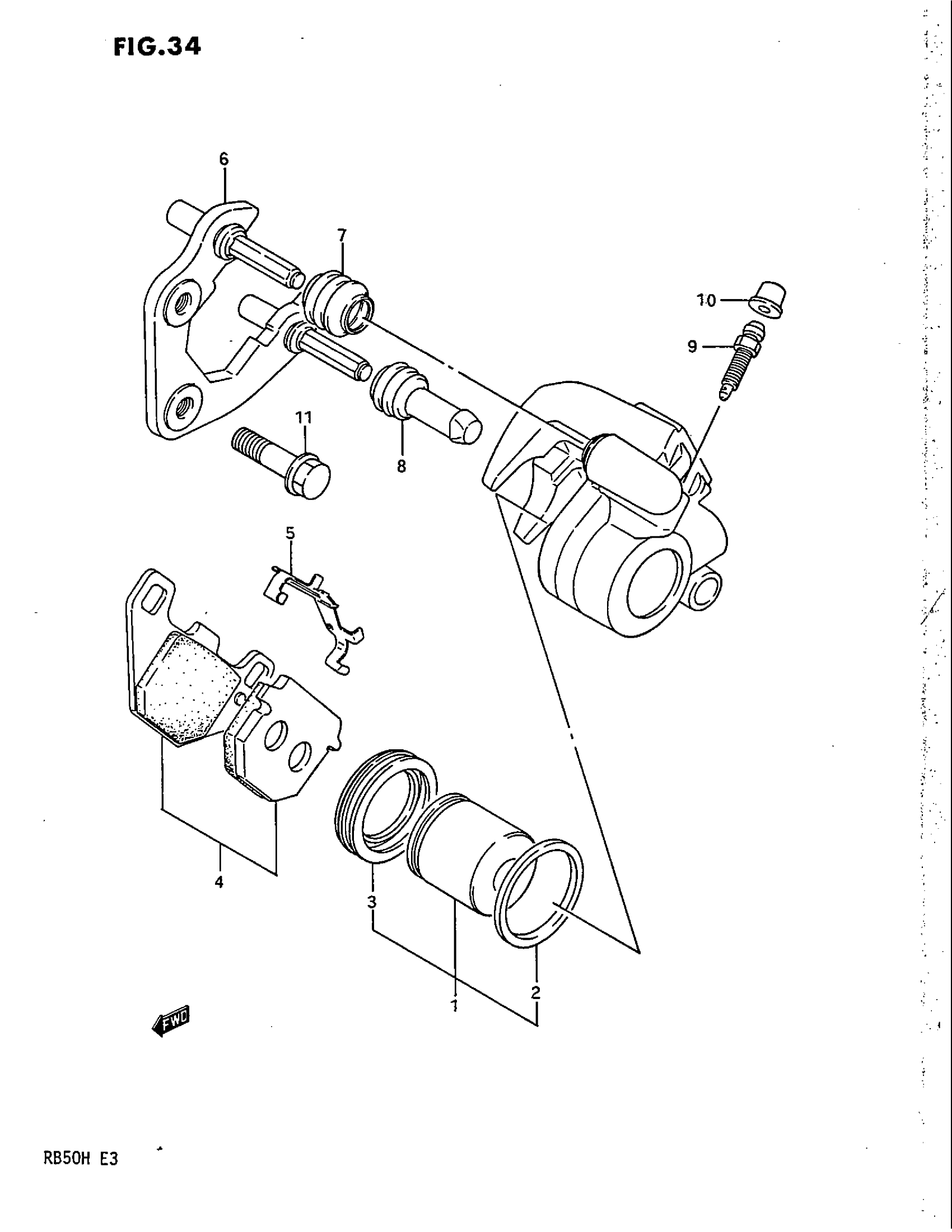

1987 Suzuki GSXR50 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

CALIPER ASSY,FR | Includes Item(s) 1 - 10 This part replaces 59300-03A30.

59300-03A32

1
Out of stock

1

PISTON SET This part replaces 59300-03810.

59300-02811

1
Out of stock

2

SEAL,PISTON This part replaces 59107-03A00.

59307-35F00

1
Out of stock

3

BOOT

59308-03A00

1
Out of stock

4

PAD SET This part replaces 59300-03860.

59300-03861

1
Out of stock

5

SPRING

59315-36500

1
Out of stock

6

CARRIER

59350-03A00

1
Out of stock

7

.BOOT, AXLE

59312-36500

1
Out of stock

8

.INSULATOR, AXLE

59313-36500

1
Out of stock

9

BLEEDER

59121-18410

1
Out of stock

10

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

1
Out of stock

11

BOLT This part replaces 01517-08307.

01550-08307

2
Out of stock
