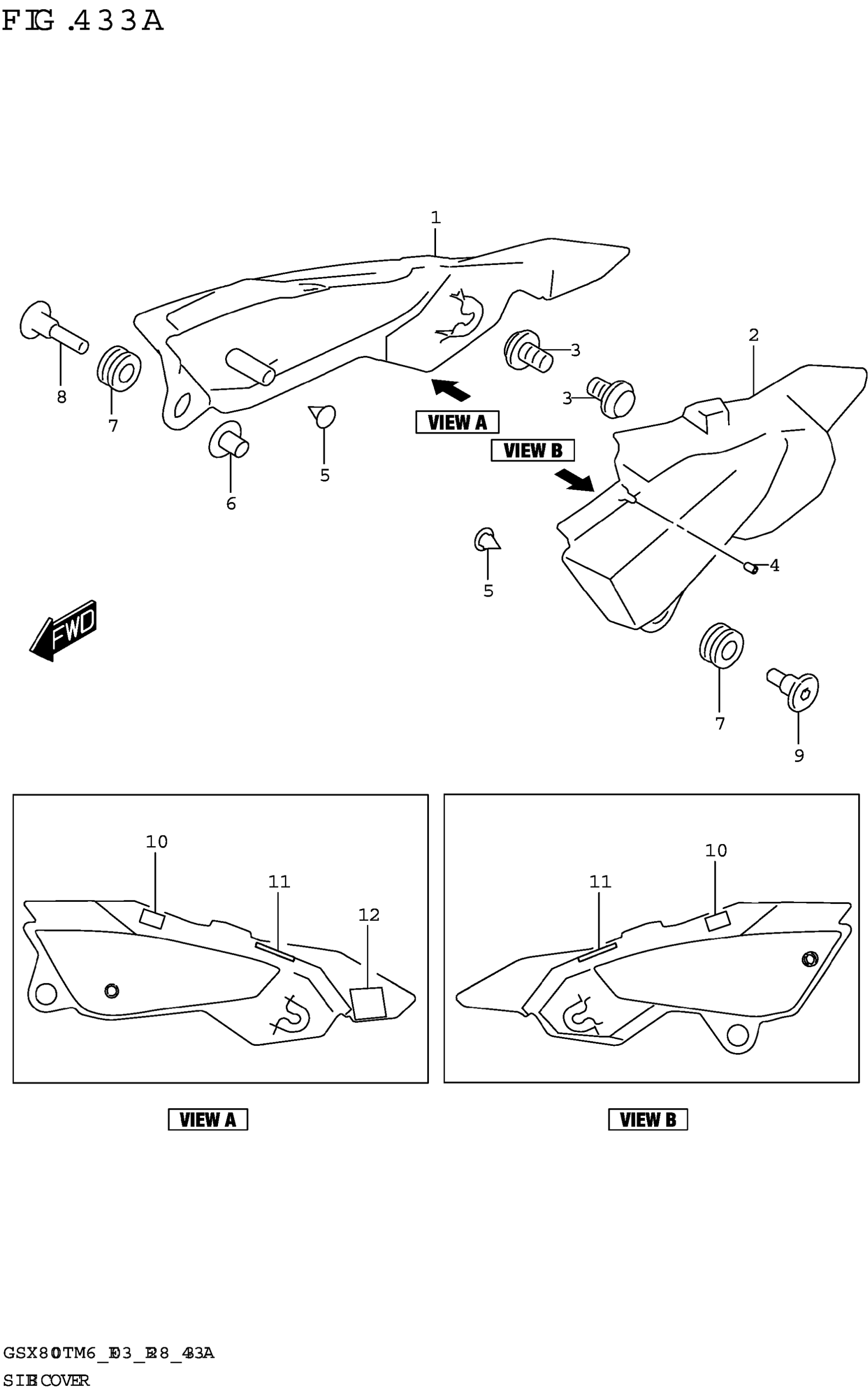

Suzuki GSX800TRQBM6 (2026) SIDE COVER Diagram

#

Description
Price

1

COVER,FRAME FRONT,R

47311-47L00

$32.35

2

COVER,FRAME FRONT,L

47321-47L00

$32.35

3

CLIP

09409-10314

$2.06

4

CUSHION,FUEL TANK COVER NO.4

44294-43H20

$2.50

5

PLUG (OD:10)

09250-06017

$2.80

6

SPACER (6.2X8.4X10.9)

09180-06331

$5.17

7

CUSHION (9X18X9.5)

09320-09016

$2.01

8

SCREW,FRAME COVER FRONT,R

47318-47L00

$4.97

9

SCREW (6X20)

09139-06211

$3.27

10

.CUSHION (20X20X1)

47123-17K00

$4.09

11

CUSHION

94675-07L10

$2.22

12

.CUSHION (20X20X1)

47123-17K00

$4.09
