2026 Suzuki GSX800TRQBM6 Battery Diagram

← All diagrams

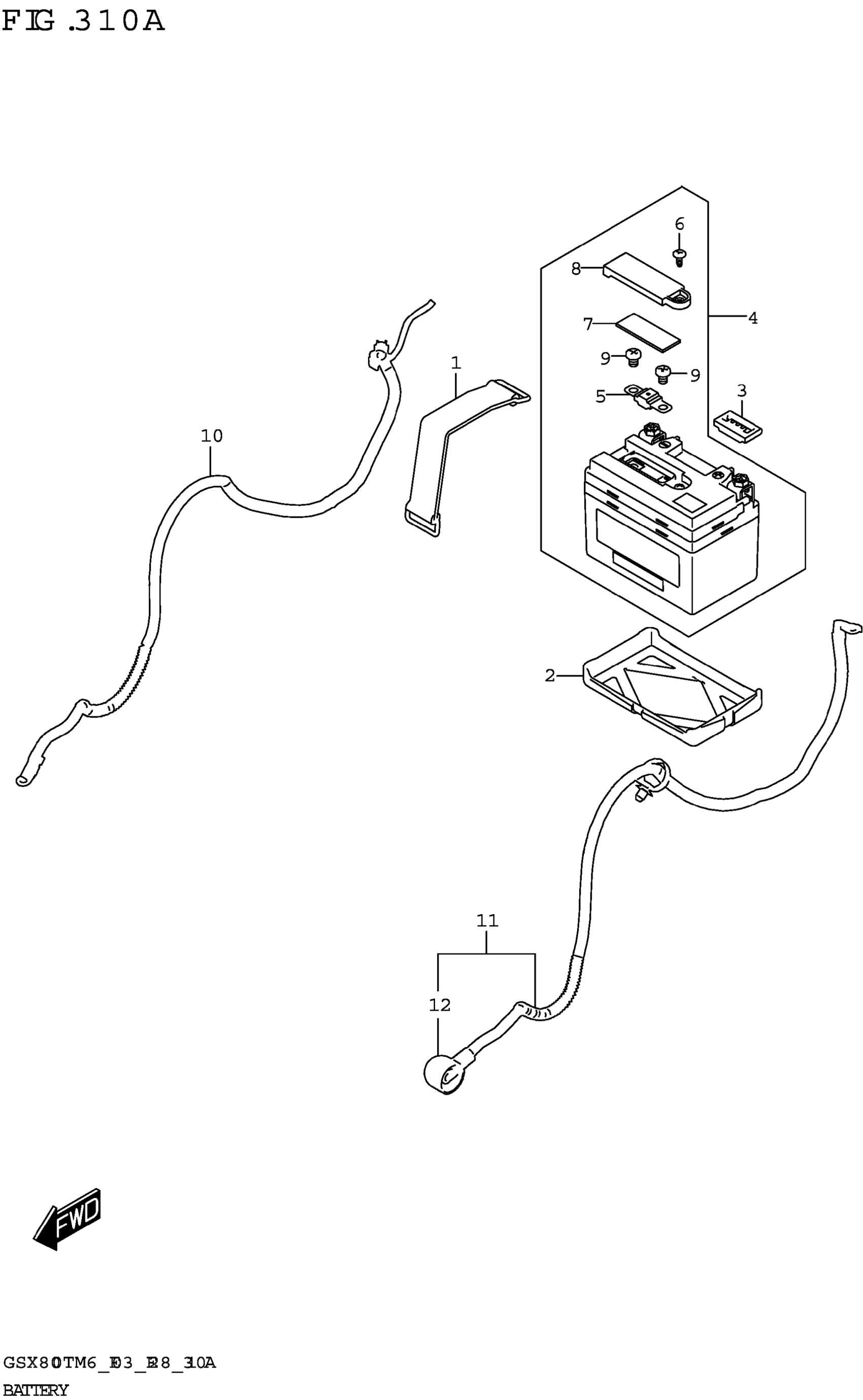

Find the part on the Battery diagram for your 2026 Suzuki GSX800TRQBM6, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Suzuki GSX800TRQBM6 Battery Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAND

09462-00043

1

$3.98

In stock

2

1

$5.50

In stock

3

1

$3.82

In stock

4

1

$296.70

In stock

5

.FUSE

33673-25L00

1

$8.30

In stock

6

.SCREW,FUSE COVER

33677-25L00

1

$2.38

In stock

7

.RUBBER SEAL,FUSE

33676-25L00

1

$3.70

In stock

8

.COVER,FUSE

33675-25L00

1

$5.58

In stock

9

.SCREW,FUSE

33678-25L00

2

$2.18

In stock

10

1

$42.48

In stock

11

1

$22.23

In stock

12

1

$4.53

In stock
