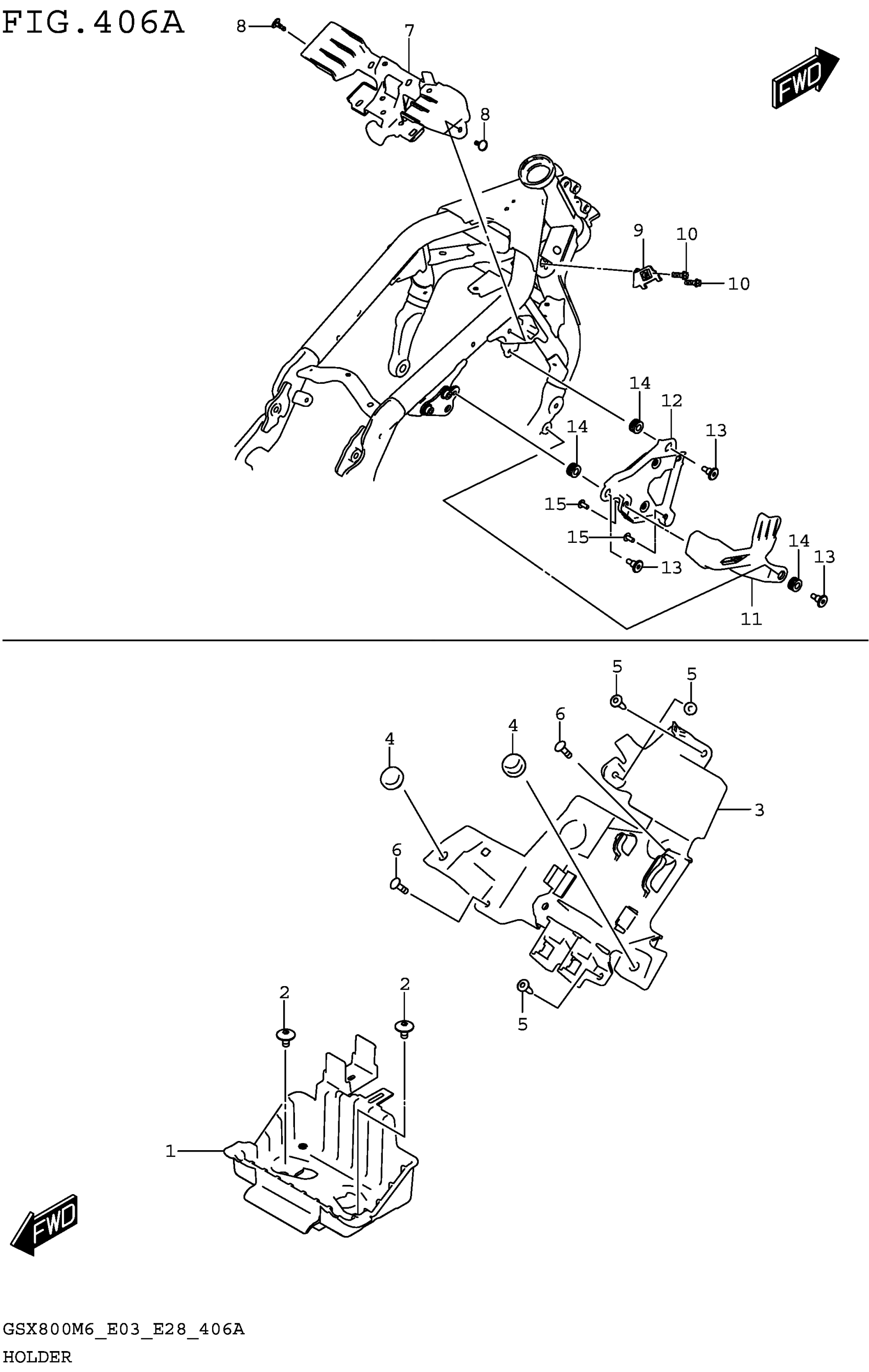

Suzuki GSX800RQM6 (2026) HOLDER Diagram

#

Description
Price

1

HOLDER,BATTERY

47431-25L00

$30.93

2

SCREW (6X12)

09139-06188

$4.03

3

HOLDER,ELECTRIC PARTS

47433-25L02

$9.17

4

CUSHION

09321-10012

$2.80

5

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

6

SCREW

03541-0516A

$1.37

7

BRACKET,COUPLER

47430-25L00

$22.55

8

CLIP

94479-35F00

$5.14

9

BRACKET,HORN

46420-25L00

$8.68

10

BOLT

01547-0616B

$2.43

11

GUARD,RECTIFIER

47436-25L00

$14.55

12

HOLDER,RECTIFIER

47437-25L00

$15.50

13

SCREW (6X20)

09139-06211

$3.15

14

CUSHION (9X18X9.5)

09320-09016

$1.97

15

SCREW

03541-0512A

$1.37
