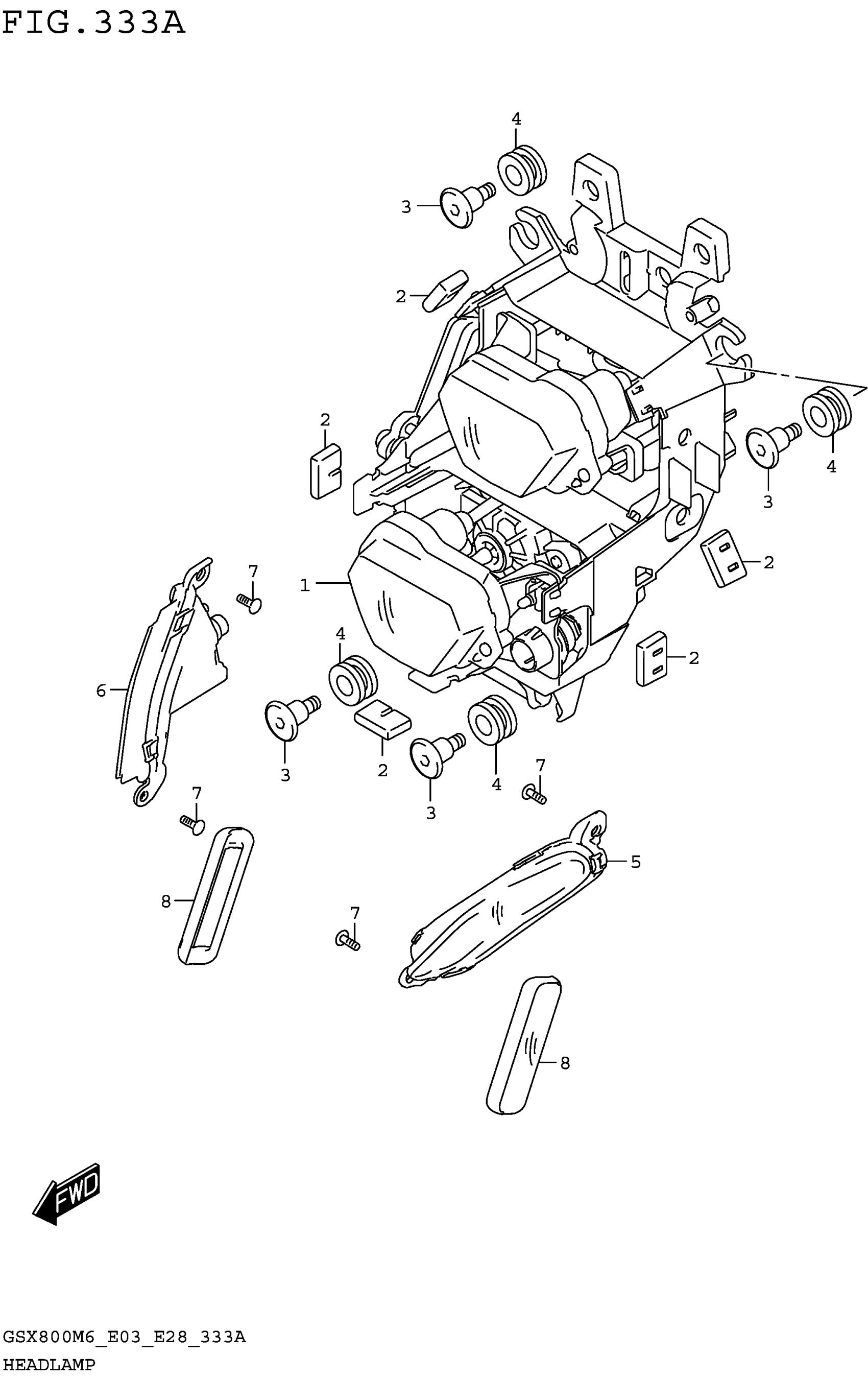

Suzuki GSX800RQM6 (2026) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY

35100-48K04

$871.52

2

CUSHION

35781-17K00

$11.40

3

SCREW (6X20)

09139-06206

$3.09

4

CUSHION (9X18X10)

09320-09501

$2.13

5

LAMP ASSY, FRONT POSITION LH

36102-25L00

$160.83

6

LAMP ASSY, FRONT POSITION RH

36101-25L00

$119.19

7

SCREW

03541-0516A

$1.41

8

REFLEX REFLECTOR,FR SIDE

35950-25LA0

$11.20
