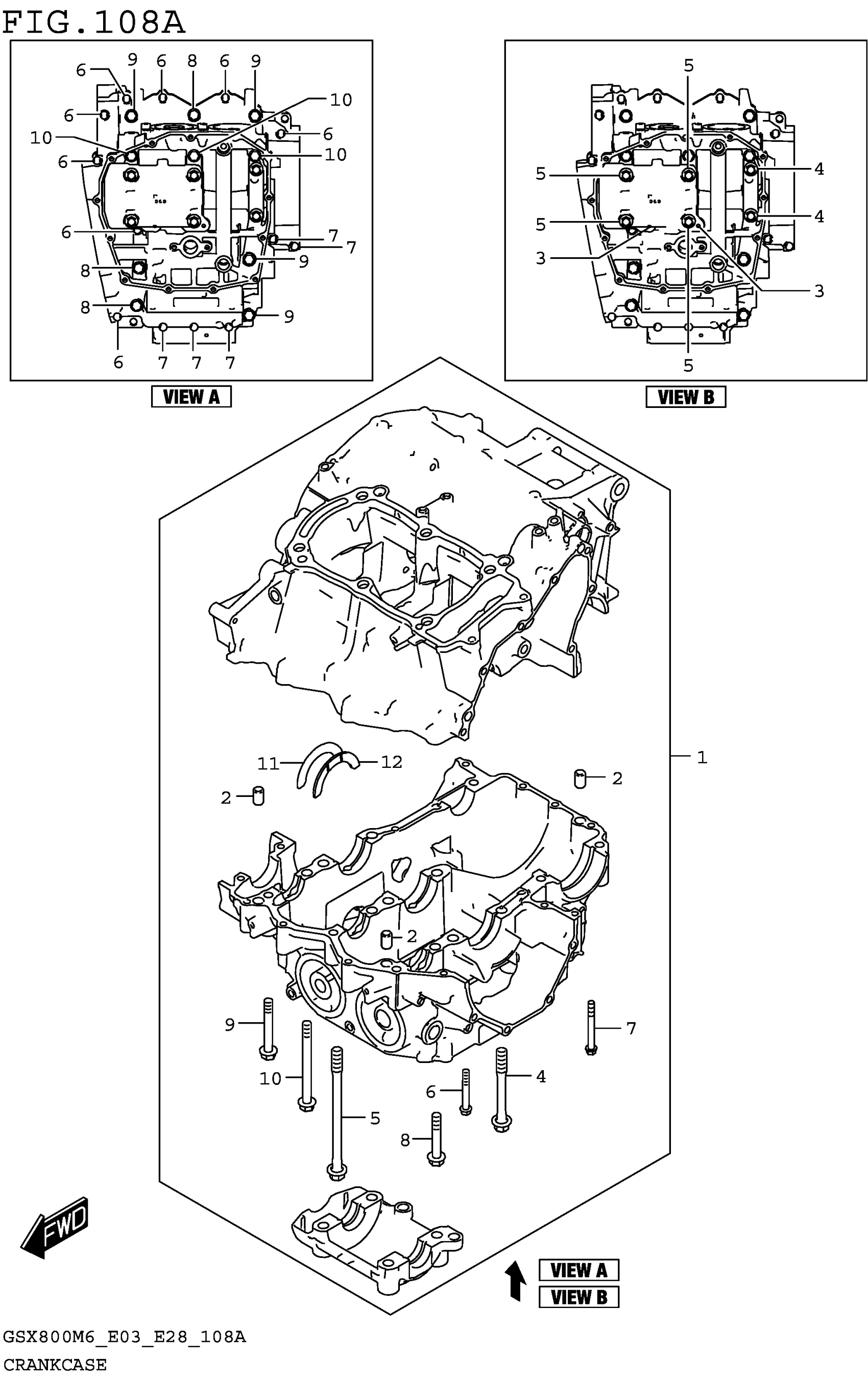

Suzuki GSX800RQM6 (2026) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-25820

$972.90

2

PIN,CRANKCASE

11319-33E50

$5.01

3

PIN,CRANKCASE

11319-33E50

$5.01

4

.BOLT,CRANKCASE

11322-25L00

$8.38

5

.BOLT,CRANKCASE

11323-25L00

$10.55

6

BOLT

01547-0645A

$2.43

7

.BOLT

01547-0655A

$2.43

8

.BOLT

01550-0850A

$3.98

9

.BOLT

01550-0860A

$1.37

10

BOLT

01550-0895A

$5.00

11

.BEARING,CRANK THRUST (GREEN) | GREEN

12228-24F00-0D0

$10.18

12-1

.BEARING,CRANK THRUST,L (RED) | RED

12228-24F00-0A0

$14.45

12-2

.BEARING,CRANK THRUST,L (BLAC | BLACK

12228-24F00-0B0

$10.18

12-3

.BEARING,CRANK THRUST,L (BLUE | BLUE

12228-24F00-0C0

$14.35

12-4

.BEARING,CRANK THRUST (GREEN) | GREEN

12228-24F00-0D0

$10.18

12-5

.BEARING,CRANK THRUST,L (YELL | YELLOW

12228-24F00-0E0

$14.98

12-6

.BEARING,CRANK THRUST,L (WHIT | WHITE

12228-24F00-0F0

$14.98
