Partiron

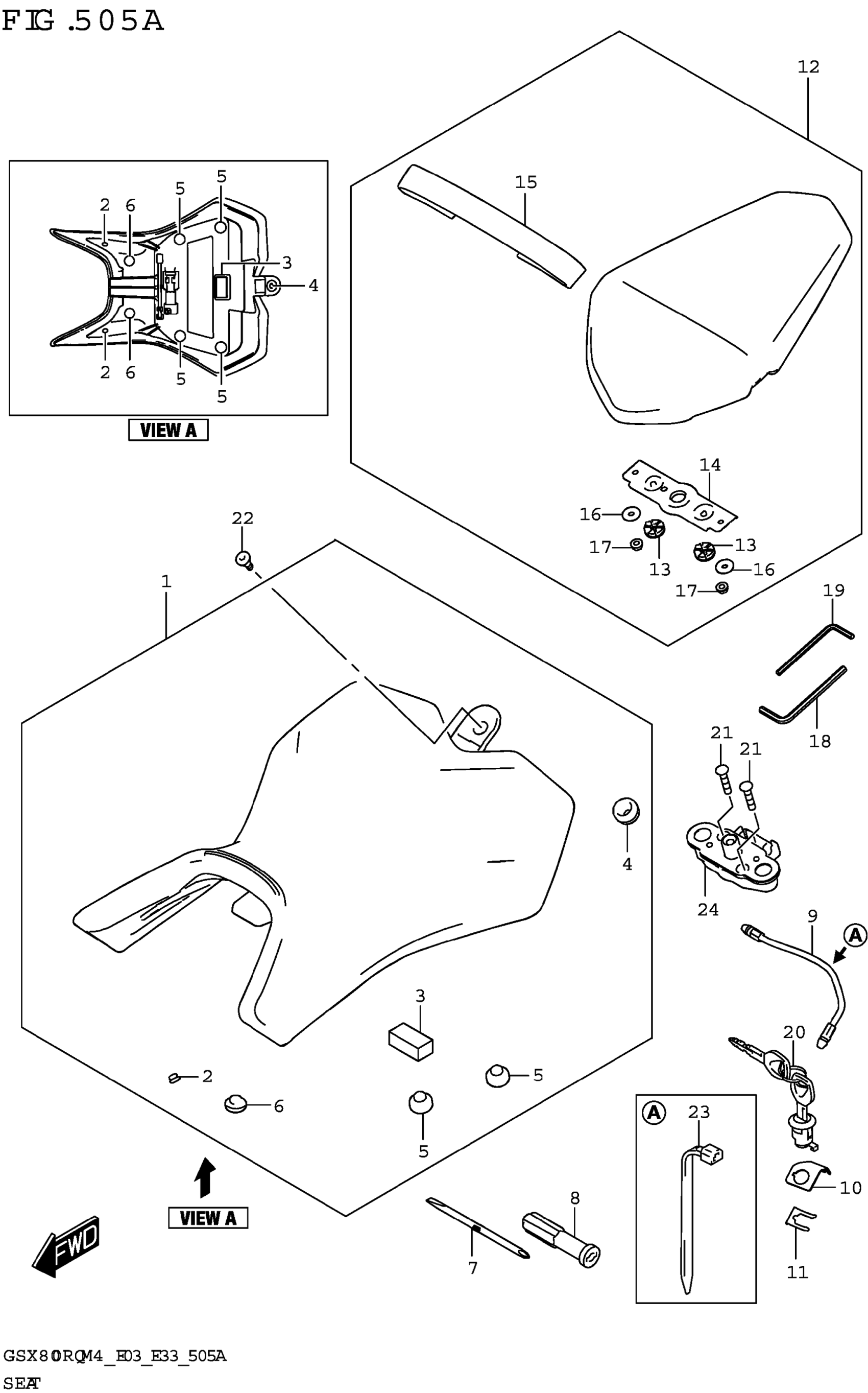

Suzuki GSX800RQM4 (2024) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) This part replaces 45100-25L20-QZF.

45100-25L22-QZF

$230.52

2

CUSHION,SEAT MOUNT

45148-27J00

$19.43

3

.CUSHION

45149-20K00

$4.77

4

.CUSHION,FRAME COVER,R

47321-20K01

$2.92

5

CUSHION

09321-10012

$2.80

6

CUSHION

09329-10001

$2.21

7

DRIVER (+,-)

96515-48H00

$3.98

8

GRIP,DRIVER

96515-48H10

$3.17

9

CABLE,SEAT LOCK

45280-20K00

$9.37

10

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.14

11

PLATE,SEAT LOCK ASSY

45289-11F00

$5.93

12

SEAT ASSY,PILLION (BLACK)

45300-25L20-QZF

$241.50

13

.CUSHION

45210-21K00

$2.60

14

.STRIKER,SEAT LOCK

45290-20K00

$26.55

15

.BAND,PILLION SEAT GRIP

45380-25L00

$19.05

16

.WASHER (6.5X20X1.6)

09160-06088

$1.73

17

NUT (6X12)

08316-1006A

$2.25

18

HEXAGON,SPANNER (5)

96514-48H00

$2.90

19

HEXAGON,SPANNER (4)

96514-48H10

$3.17

20

LOCK SET,SEAT

95700-14810

$102.14

21

SCREW (6X30)

09126-06019

$2.28

22

SCREW

09139-06244

$3.87

23

CLAMP (L:165)

09407-18402

$2.29

24

BRACKET,SEAT SUPPORT

45220-47H00

$155.43
