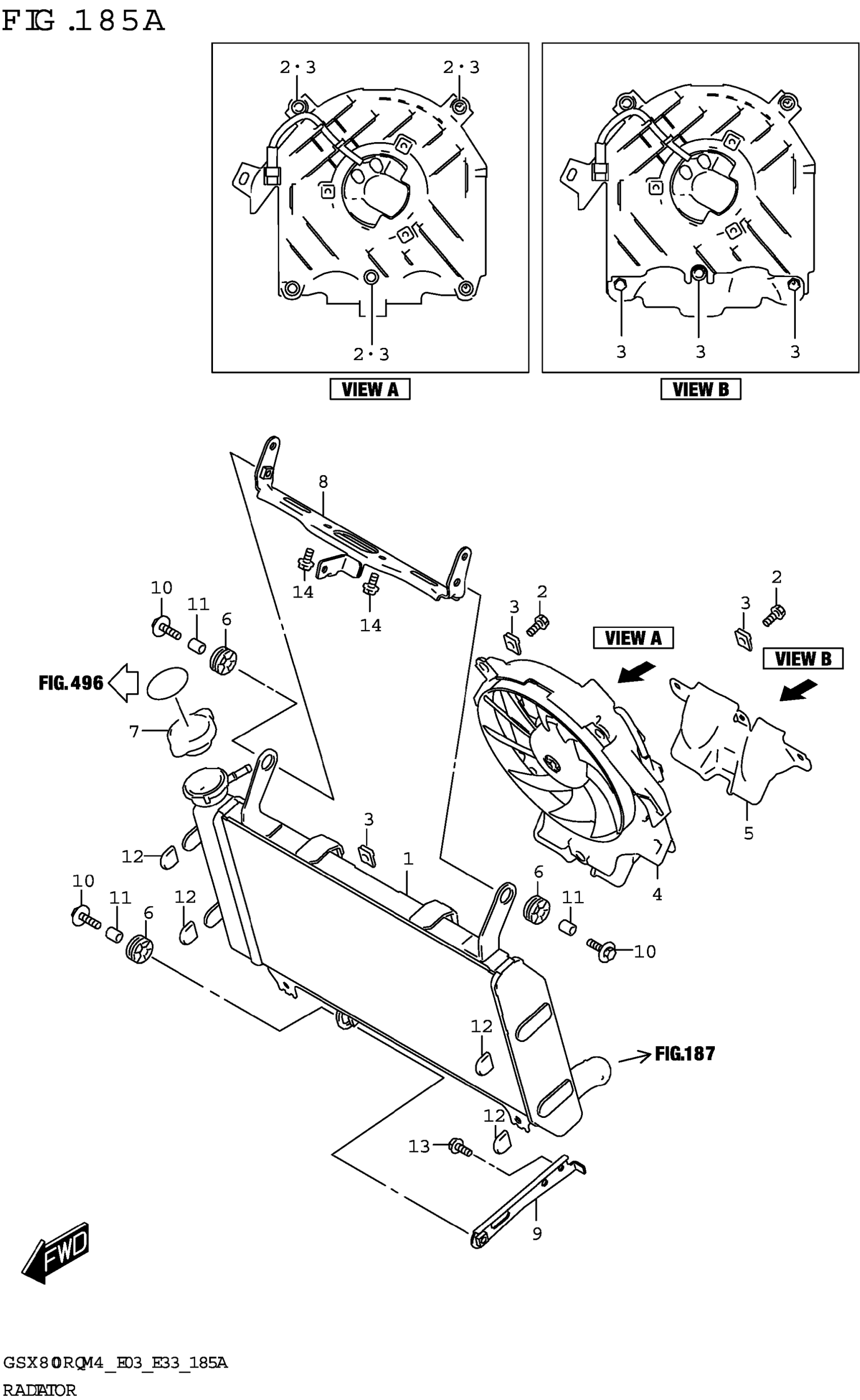

Suzuki GSX800RQM4 (2024) RADIATOR Diagram

#

Description
Price

1

RADIATOR

17700-25L00

$543.72

2

BOLT,FAN ASSY

17711-14G00

$4.62

3

NUT,RADIATOR FAN

17802-14F00

$3.33

4

SHROUD FAN ASSY

17810-25L00

$226.73

5

PLATE

17812-25L00

$20.78

6

CUSHION

09320-10051

$2.91

7

CAP,RADIATOR (1.1)

17730-14G00

$40.97

8

BRACKET,RADIATOR UPPER

17740-25L00

$34.62

9

BRACKET,RADIATOR LOWER

17750-25L00

$11.03

10

BOLT (6X25)

09118-06097

$2.57

11

SPACER (6.5X10X12)

09180-06290

$2.09

12

CUSHION

09329-18001

$1.97

13

BOLT

01550-0616A

$2.01

14

SCREW

02162-0612A

$1.93
