2024 Suzuki GSX800RQM4 Control Cable Diagram

← All diagrams

Find the part on the Control Cable diagram for your 2024 Suzuki GSX800RQM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

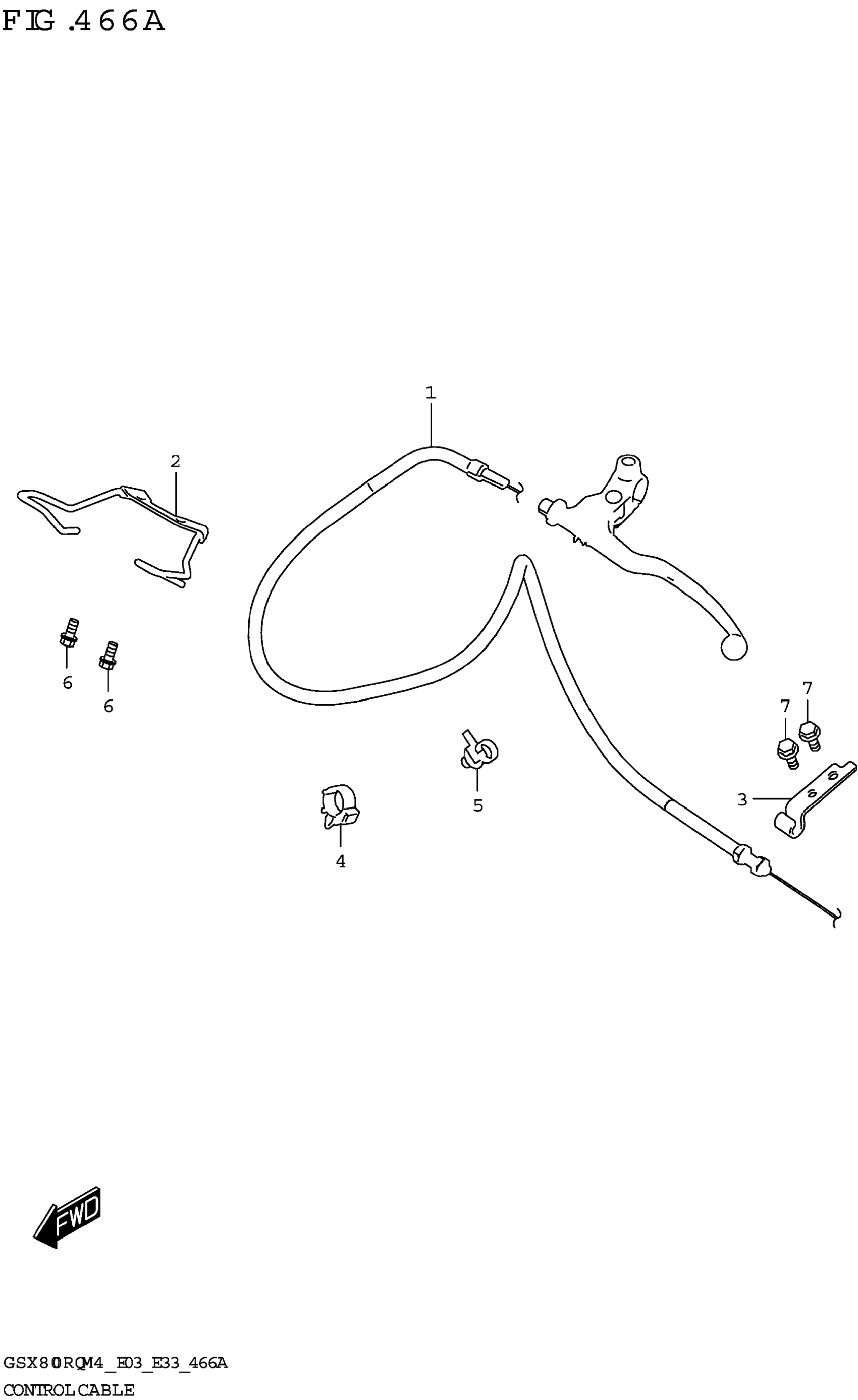

2024 Suzuki GSX800RQM4 Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CABLE ASSY, CLUTCH

58200-25L00

1
Out of stock

2

GUIDE,CLUTCH CABLE

58620-25L00

1
Out of stock

3

STOPPER,CLUTCH CABLE

58634-25L00

1
Out of stock

4

CLAMP

09403-20311

1
Out of stock

5

CLAMP (L:170)

09407-17403

1
Out of stock

6

BOLT

01547-0612A

2
Out of stock

7

BOLT

01550-0616A

2
Out of stock
