Description

Price

1

GEAR ASSY,PRI DRIVEN (NT:62)

21200-25810

$312.17

2

SPACER,OIL PUMP DRIVE SPROCKE

21253-01H10

$46.80

3

WASHER (25X30X3)

09160-25036

Unavailable

4

WASHER (25X54X2.4)

09160-25073

$15.75

5

BEARING (35X40X12)

09263-35045

$25.43

6

.HUB,CLUTCH SLEEVE

21411-25L00

$95.50

7

.BOLT,CLUTCH SPRING

21412-31J00

$4.63

8

.SPRING,CLUTCH

21413-25L00

$6.50

9

.PLATE,STOPPER

21414-25L00

$14.03

10

.SEAT,CLUTCH SPRING

21415-31J00

$17.43

11

.PLATE,CLUTCH DRIVE NO.1 (T:2 | )

21441-36F50

$26.85

12

.PLATE,CLUTCH DRIVE NO.2 (T:2 | )

21442-41G20

$34.48

13

.PLATE,CLUTCH DRIVEN NO.2 (T: | 6)

21451-25L10

$10.12

14

.PLATE,CLUTCH DRIVEN (T:1.6)

21451-41G30

$13.05

15

.PLATE,CLUTCH DRIVEN NO.3 (T: | 0)

21452-25L00

$6.21

16

.DISC,CLUTCH PRESSURE

21462-25L00

$79.22

17

.SEAT,WAVE WASHER

21471-41G00

$13.59

18

.WASHER,CLUTCH PLATE WAVE

21472-41G20

$19.64

19

.WASHER (25X50X2.5)

09160-25056

$10.94

20

NUT

09159-24010

$12.27

21

WASHER (24.2X35X2.7)

09164-24008

$5.00

22

SHIM (25X38X1)

09181-25223

$3.00

23

ROD,CLUTCH PUSH,R

23110-38B00

$22.18

24

ROD,CLUTCH PUSH,L

23111-25L00

$11.42

25

PIECE,CLUTCH PUSH

23121-25L00

$48.35

26

CAMSHAFT,CLUTCH RELEASE

23122-25L00

$42.28

27

CAP,CLUTCH PUSH ROD

23123-41G00

$10.46

28

SCREW,CLUTCH PUSH ROD

23124-25L00

$23.10

29

SPRING,CLUTCH RELEASE RETURN

23125-44G00

$3.38

30

ARM,CLUTCH RELEASE

23271-41G00

$53.05

31

BOLT (6X20)

09103-06527

$2.07

32

WASHER (10.5X24X1.0)

09160-10020

$1.93

33

WASHER (15.5X28X1)

09160-15045

$3.62

34

BEARING (10X14X10)

09263-10014

$12.57

35

BEARING (12X18X12)

09263-12027

$6.79

36

BEARING (15X28X2)

09263-15003

$7.70

37

SEAL,OIL (10X20X6)

09282-10012

$7.42

38

SEAL,OIL

09283-06013

$12.23

39

SEAL,OIL (10X17X5)

09285-10004

$3.13

40

NUT

08310-0006A

$1.89

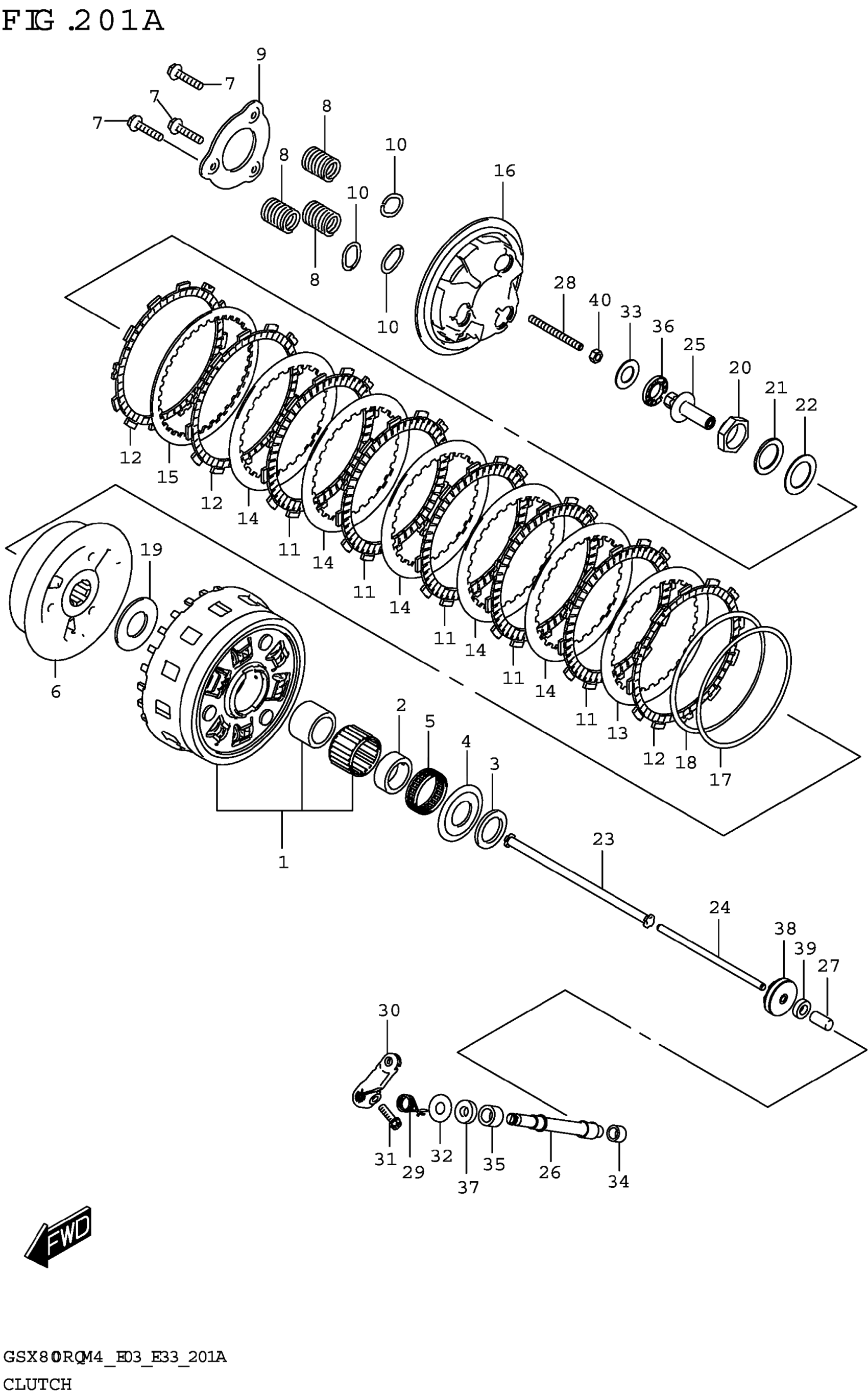

Suzuki GSX800RQM4 (2024) CLUTCH Diagram
