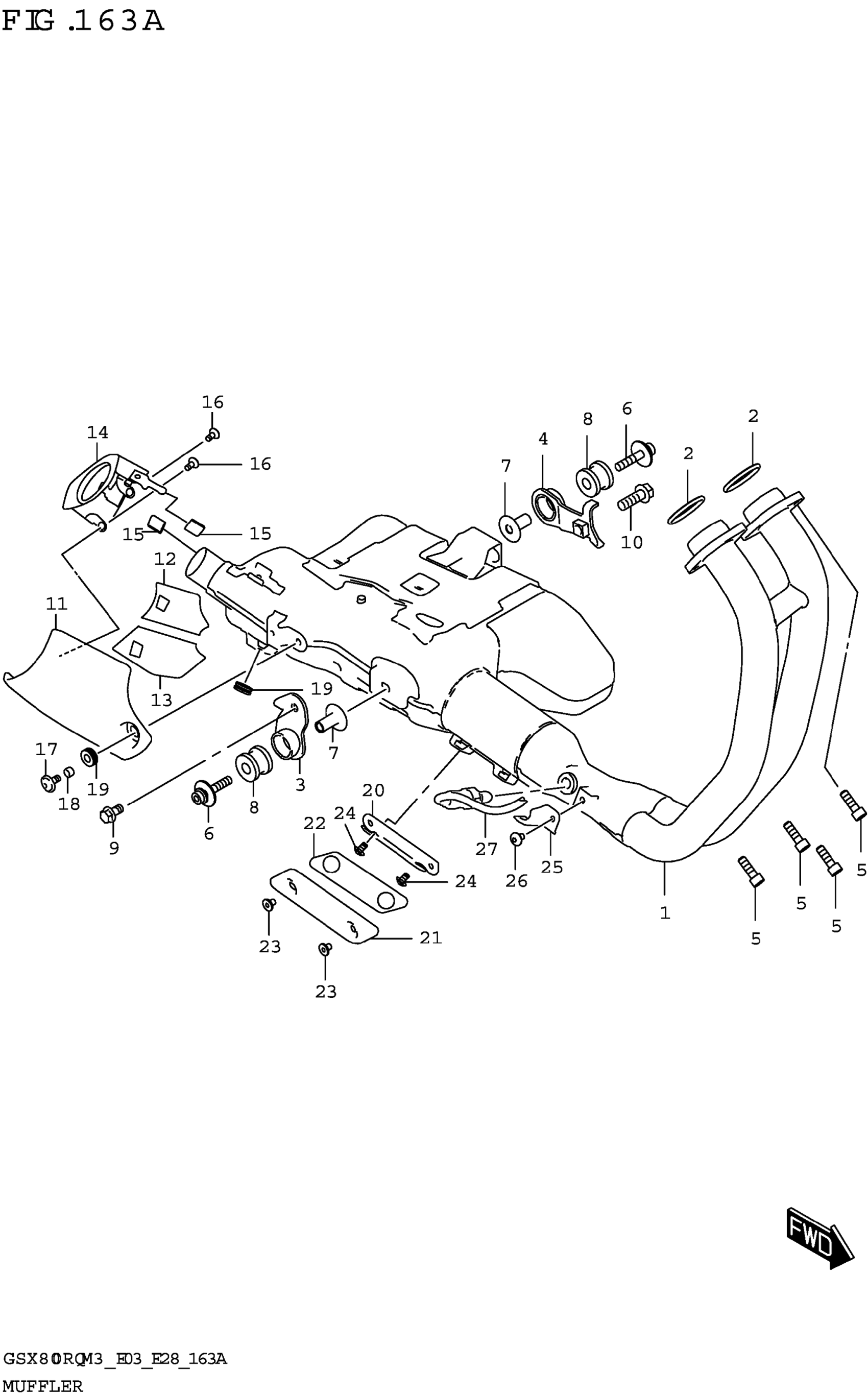

Find the part on the Muffler diagram for your 2023 Suzuki GSX800RQM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Suzuki GSX800RQM3 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST

14100-25L00-H01

1
Out of stock

2

.GASKET,EXHAUST PIPE

14181-04K00

2
Out of stock

3

BRACKET,CHAMBER SPRT R

14760-25L00

1
Out of stock

4

BRACKET,CHAMBER SPRT L

14770-25L00

1
Out of stock

5

BOLT (8X25)

09106-08178

4
Out of stock

6

BOLT

09116-08176

2
Out of stock

7

SPACER (8.6X12X24.2)

09180-08152

2
Out of stock

8

CUSHION (12X30X24)

09320-12077

2
Out of stock

9

BOLT

01550-0816B

1
Out of stock

10

BOLT

01550-1030B

1
Out of stock

11

COVER,CHAMBER

14781-25L00

1

$15.33

In stock

12

1

$3.77

In stock

14

STAY,CHAMBER RR COV

14790-25L00

1
Out of stock

15

GROMMET

14795-10FA0

2
Out of stock

16

SCREW

09132-05068

2

$3.20

In stock

17

SCREW

09139-06240

1

$3.42

In stock

18

SPACER (6.5X9X5.7)

09180-06256

1
Out of stock

19

CUSHION (8.4X18X6)

09320-08066

2
Out of stock

20

BRACKET, EXH COV

14140-25L00

1

$19.97

In stock

21

COVER, EXH PIPE

14181-25L00

1

$8.88

In stock

22

SHIELD, EXH COV HEAT

14182-25L00

1
Out of stock

23

SCREW

14789-29F01

2
Out of stock

24

SCREW (6X10)

09139-06122

2
Out of stock

25

COVER,OXYGEN SENSOR

14183-25L00

1
Out of stock

26

SCREW (6X10)

09139-06122

1
Out of stock

27

SENSOR,OXYGEN

18213-25L40

1
Out of stock
