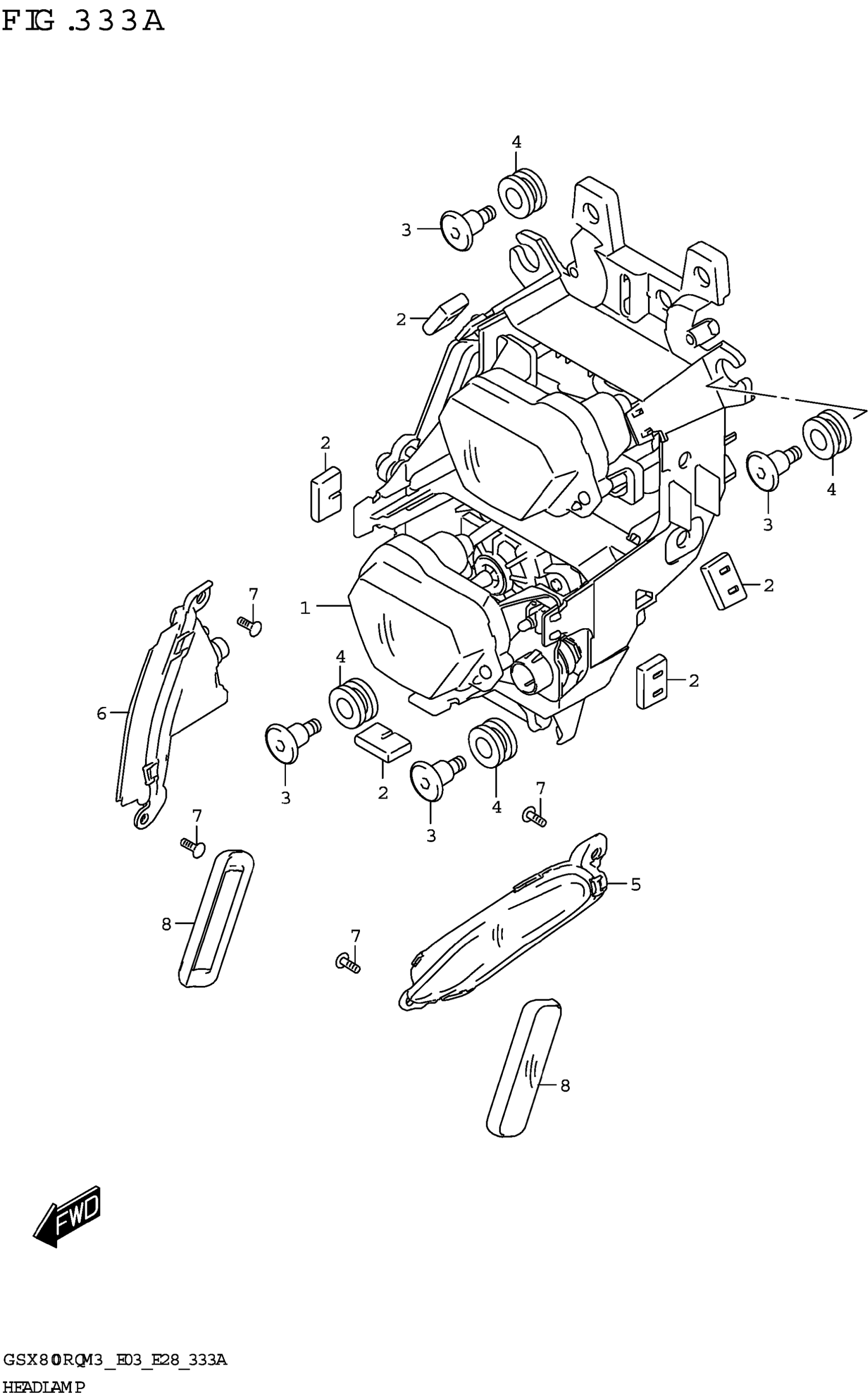

Suzuki GSX800RQM3 (2023) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY This part replaces 35100-48K02.

35100-48K04

$871.52

2

CUSHION

35781-17K00

$10.92

3

SCREW (6X20)

09139-06206

$2.99

4

CUSHION (9X18X10)

09320-09501

$2.06

5

LAMP ASSY, FRONT POSITION RH

36101-25L00

$160.83

6

LAMP ASSY, FRONT POSITION LH

36102-25L00

$160.83

7

SCREW

03541-0516A

$1.37

8

REFLEX REFLECTOR,FR SIDE

35950-25LA0

$15.10
