Description

Price

1-1

WHEEL,FRONT (17M/CXMT3.50,BLU | BODY COLOR:QU1,QU2

54111-25L00-QZB

$373.12

1-2

WHEEL,FRONT (17M/CXMT3.50,BLA | BODY COLOR:KGL

54111-25L00-019

$518.65

2

SPACER,FR HUB BEARING

54731-14J00

$19.75

3

BEARING

09262-22049

$39.53

4

SEAL,OIL

09283-28028

$8.24

5

AXLE,FRONT

54711-25L10

$89.77

6

SPACER,FR AXLE,L

54751-14J00

$16.79

7

DISC,FR BRAKE

59210-44G11

$462.72

8

BOLT (8X21)

09106-08160

$3.22

9

RING,SPEED SENSOR FR (50T)

54162-44H00

$26.80

10

BOLT

07130-0512A

$2.19

11

TIRE,FRONT (120/70ZR17M/C(58W

55110-25L00

$230.83

12

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

13-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

13-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

13-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

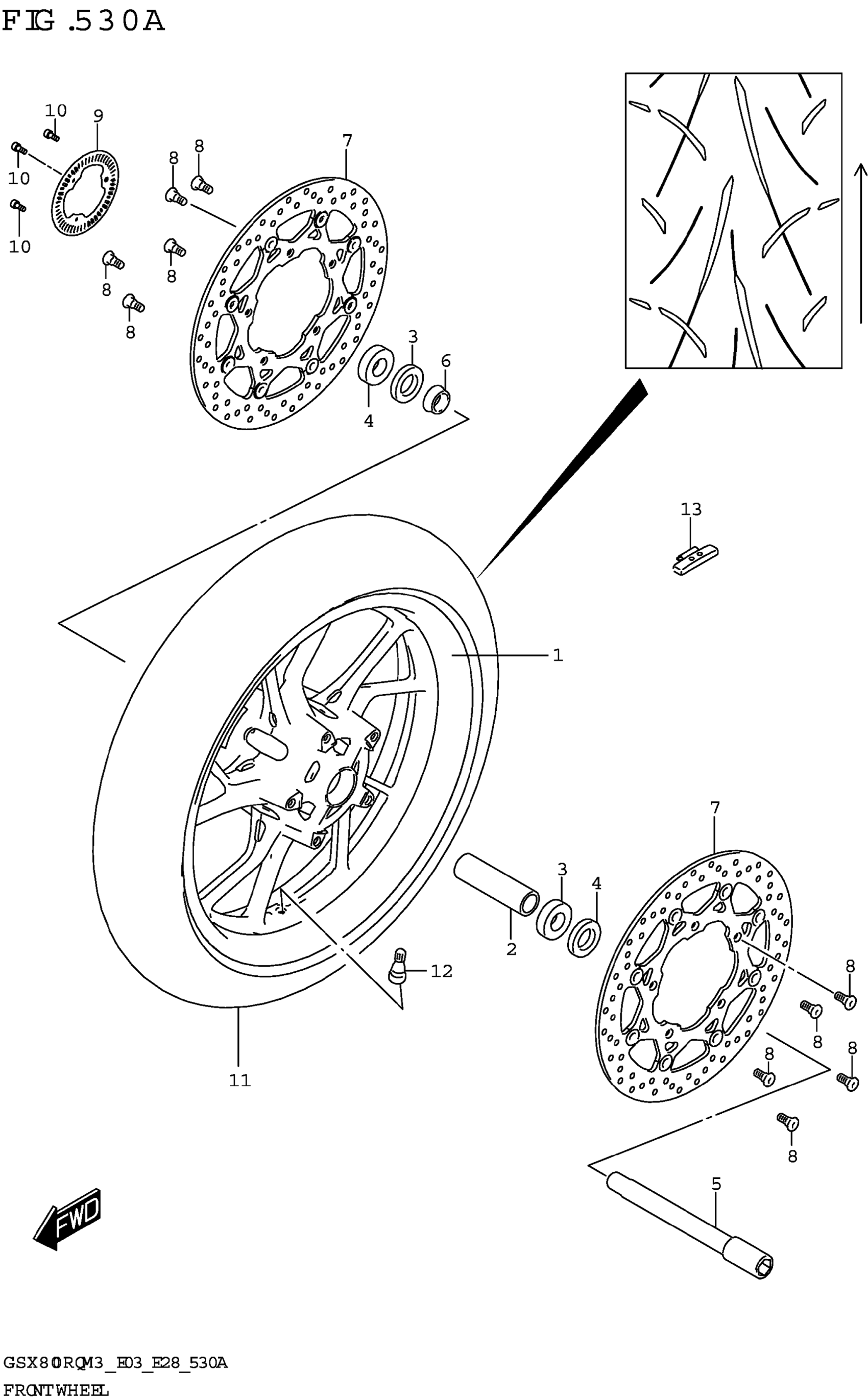

Suzuki GSX800RQM3 (2023) FRONT WHEEL Diagram
