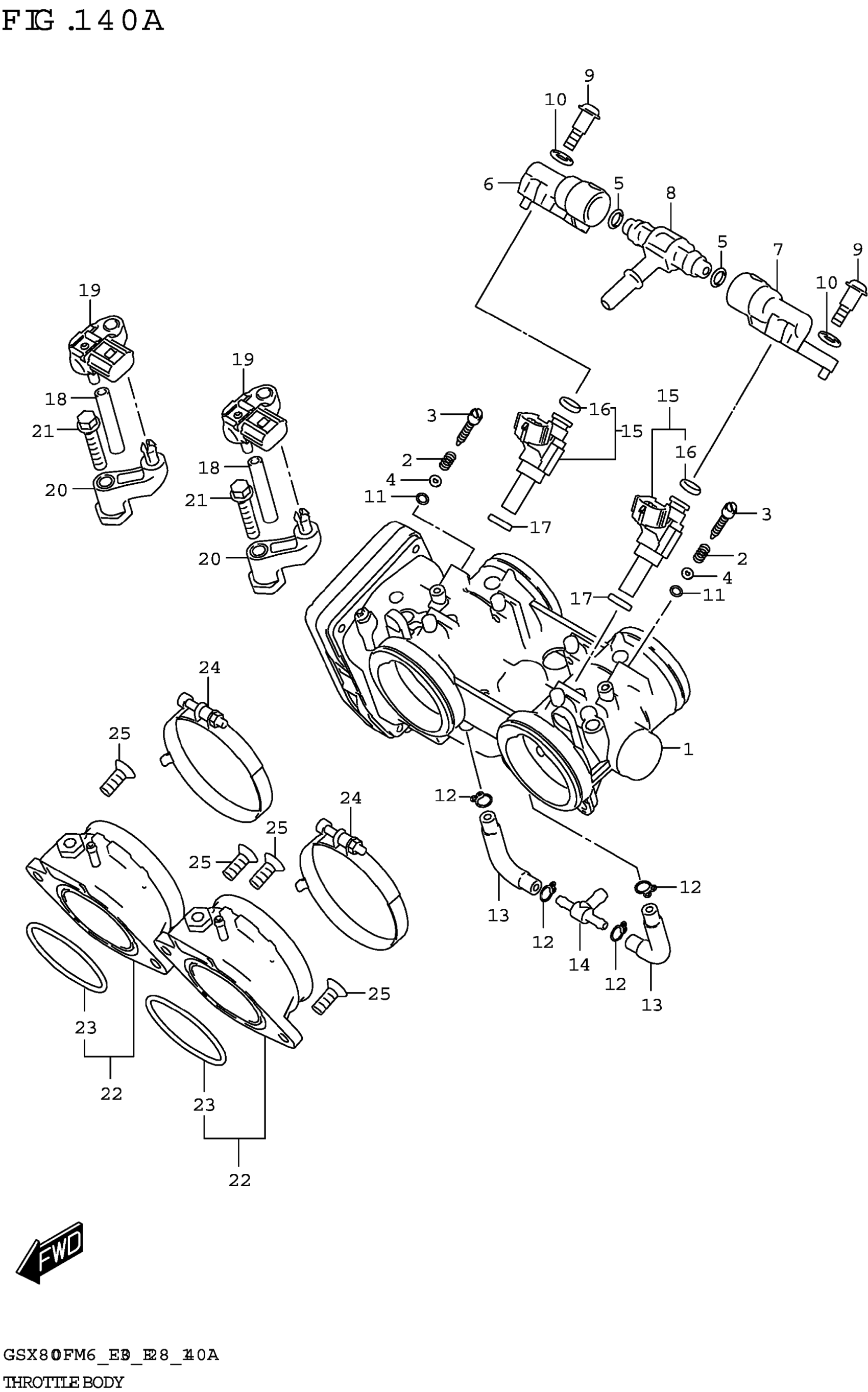

Suzuki GSX800FRQM6 (2026) THROTTLE BODY Diagram

#

Description
Price

1

MIXER ASSY

13405-25L00

$457.90

2

SPRING,THROTTLE SCREW

13268-48700

$3.97

3

SCREW

13269-33E00

$10.45

4

O-RING

13295-29901

$3.97

5

O-RING

13374-32G00

$8.15

6

DELIVERY PIPE

13471-25L00

$28.25

7

DELIVERY PIPE

13472-25L00

$28.25

8

NIPPLE

13473-25L00

$33.87

9

SCREW

13601-11J00

$4.51

10

PACKING

13602-29G01

$2.52

11

WASHER

13606-47A00

$3.70

12

CLIP This part replaces 13671-12C00.

09401-06101

$2.06

13

HOSE

13682-25L00

$24.00

14

NIPPLE

13685-04F10

$12.50

15

INJECTOR ASSY

15710-17K00

$195.72

16

.O-RING

15717-58B00

$9.11

17

SEAL

15722-14J00

$10.70

18

HOSE

09355-35007-030

$1.45

19

SENSOR,BOOST

18590-18K10

$234.95

20

BRACKET,AIR PRESSURE SENSOR

18596-25L00

$14.00

21

BOLT

01547-0630A

$2.31

22

PIPE ASSY,INTAKE

13101-25L00

$57.07

23

.O-RING,INTAKE PIPE

13127-25L00

$5.40

24

CLAMP,INTAKE PIPE

13170-25L10

$9.72

25

SCREW

02122-0616A

$1.43
