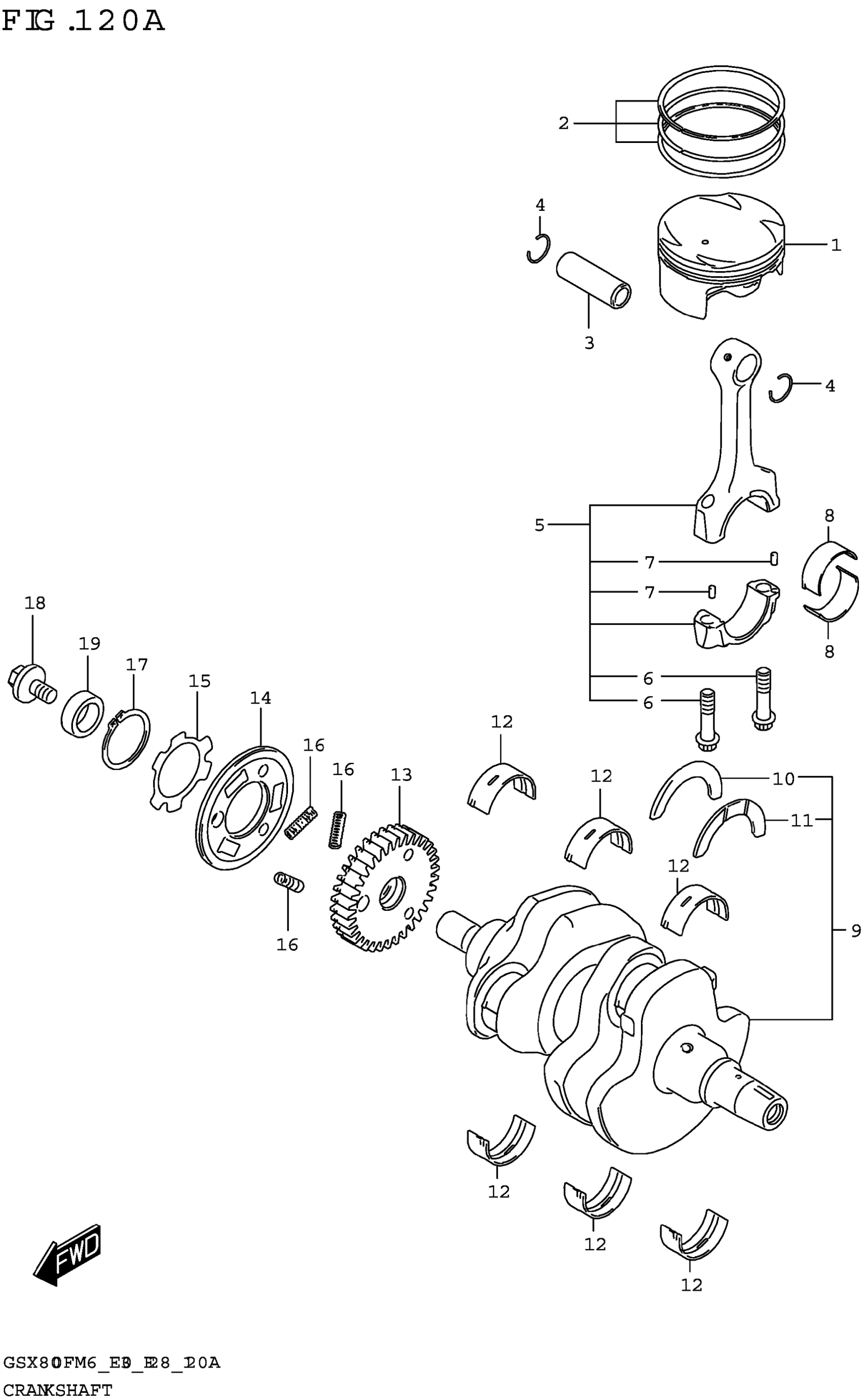

Suzuki GSX800FRQM6 (2026) CRANKSHAFT Diagram

#

Description
Price

1

PISTON

12111-25L00-0F0

$169.93

2

RING SET,PISTON

12140-25L00

$68.58

3

PIN,PISTON

12151-07D10

$8.85

4

CIRCLIP (OD:20.5)

09381-18002

$1.45

5

CONNROD ASSY

12160-25L00

$117.42

6

.BOLT,CONNECTING ROD

12163-24F10

$15.05

7

PIN (4X13.8)

04221-04089

$1.10

8-1

BEARING,CRANK PIN (GREEN)

12164-46E10-0A0

$14.36

8-2

BEARING,CRANK PIN (BLACK)

12164-46E10-0B0

$14.63

8-3

BEARING,CRANK PIN (BROWN)

12164-46E10-0C0

$20.63

8-4

BEARING,CRANK PIN (YELLOW)

12164-46E10-0D0

$20.63

9

CRANKSHAFT SET

12000-25810

$1,062.35

10

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

$10.18

11-1

.BEARING,CRANK THRUST,L (RED)

12228-24F00-0A0

$14.45

11-2

.BEARING,CRANK THRUST,L (BLAC

12228-24F00-0B0

$10.18

11-3

.BEARING,CRANK THRUST,L (BLUE

12228-24F00-0C0

$14.35

11-4

.BEARING,CRANK THRUST (GREEN)

12228-24F00-0D0

$10.18

11-5

.BEARING,CRANK THRUST,L (YELL

12228-24F00-0E0

$14.98

11-6

.BEARING,CRANK THRUST,L (WHIT

12228-24F00-0F0

$14.98

12-1

BEARING,CRANKSHAFT (GREEN)

12229-25L00-0A0

$16.20

12-2

BEARING,CRANKSHAFT (BLACK)

12229-25L00-0B0

$16.20

12-3

BEARING,CRANKSHAFT (BROWN)

12229-25L00-0C0

$16.20

12-4

BEARING,CRANKSHAFT (YELLOW)

12229-25L00-0D0

$16.20

12-5

BEARING,CRANKSHAFT (BLUE)

12229-25L00-0E0

$16.20

13

GEAR,PRIMARY DRIVE

21111-25L00

$162.72

14

GEAR,PRIMARY DRIVE SCISSORS

21112-25L00

$76.50

15

WASHER,PRI DRIVE SCISSORS WAV

21114-25L00

$8.63

16

SPRING

09440-07081

$2.10

17

CIRCLIP

08331-31409

$3.90

18

BOLT (10X19)

09103-10338

$9.08

19

SPACER,PRIMARY DRIVE GEAR

21121-25L00

$12.05
