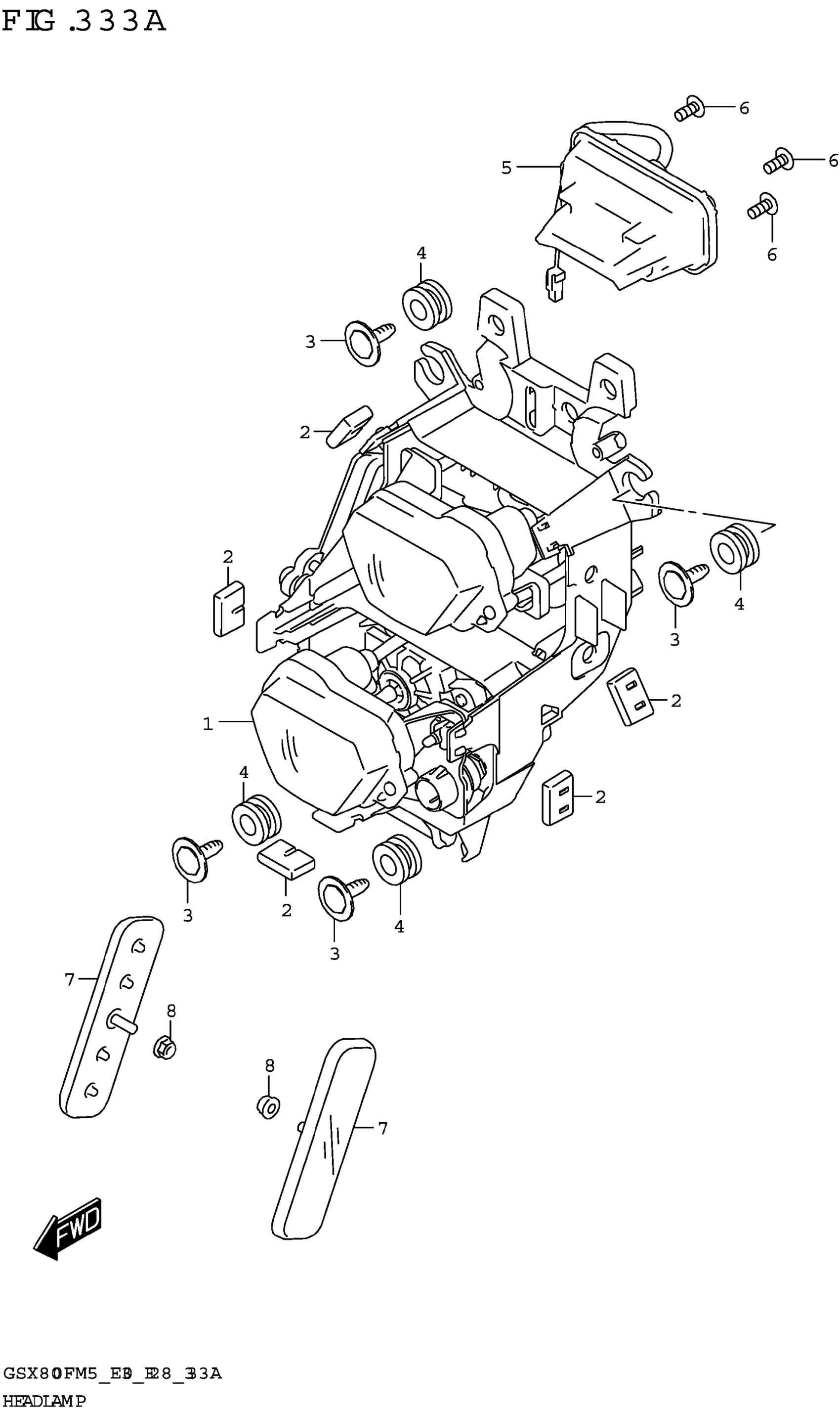

Suzuki GSX800FRQM5 (2025) HEADLAMP Diagram

#

Description

Price

1

HEADLAMP ASSY

35100-48K04

$871.52

2

CUSHION

35781-17K00

$11.40

3

SCREW (5X15)

09136-05062

$2.25

4

CUSHION (9X18X10)

09320-09501

$2.13

5

LAMP ASSY,FRONT POSITION

36110-48K00

$200.33

6

SCREW

03541-0512A

$1.41

7

REFLEX REFLECTOR,FR SIDE

35950-25L00

$13.80

8

NUT

08319-3105A

$2.47
