2025 Suzuki GSX800FRQM5 Evap System Diagram

← All diagrams

Find the part on the Evap System diagram for your 2025 Suzuki GSX800FRQM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

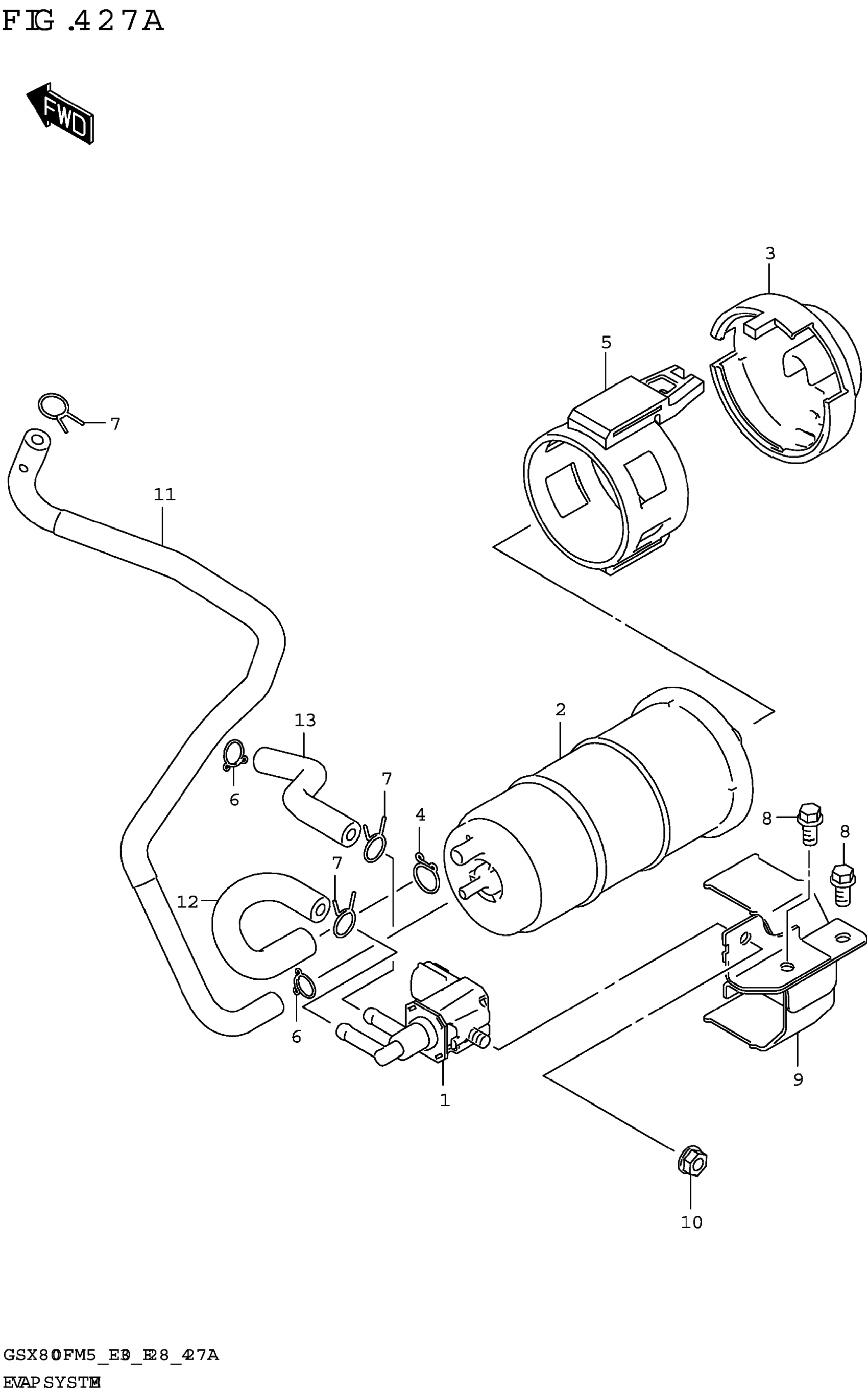

2025 Suzuki GSX800FRQM5 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE,CANISTER PURGE

18114-74P00

1

$124.80

In stock

2

CANISTER ASSY,EVAP

18560-25L00

1

$48.77

In stock

3

COVER,CANISTER

18565-25L00

1

$34.32

In stock

4

CLIP,EVAP HOSE NO.1

18568-25L00

1

$1.22

In stock

5

CUSHION,CANISTER

18572-25L00

1

$34.32

In stock

6

CLIP

09401-10401

2

$1.55

In stock

7

CLIP (ID:10)

09401-10403

3

$1.80

In stock

8

BOLT

01547-0612A

2
Out of stock

9

BRACKET,CANISTER

18570-25L00

1

$19.97

In stock

10

NUT (6X12)

08316-1006A

1
Out of stock

11

HOSE,SURGE

18561-25L10

1

$30.78

In stock

12

HOSE,PURGE NO.1

18562-25L10

1

$15.90

In stock

13

HOSE,PURGE NO.2

18563-25L10

1

$13.62

In stock
