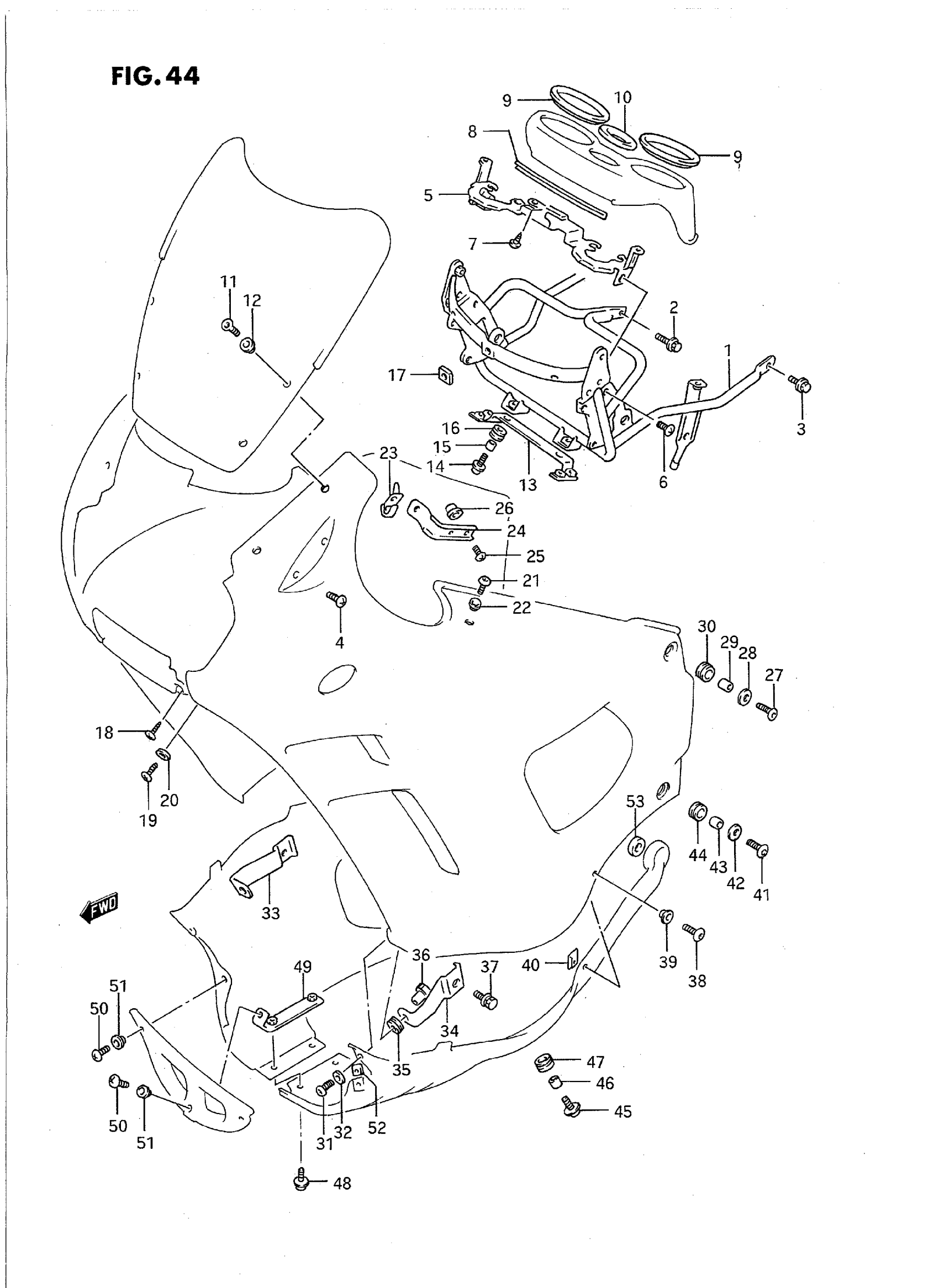

Suzuki GSX750FT (1996) INSTALLATION PARTS Diagram

#

Description
Price

1

BRACE, COWLING | MODEL N/P/R This part replaces 94510-20C00.

94510-20C20

Unavailable

1

BRACE, COWLING | MODEL N/P/RCALIFORNIA ONLY This part replaces 94510-20C10.

94510-20C30

Unavailable

1

BRACE, COWLING | MODEL S/T

94510-20C20

Unavailable

1

BRACE, COWLING | MODEL S/TCALIFORNIA ONLY

94510-20C30

Unavailable

2

BOLT | MODEL N This part replaces 01517-08205.

01550-0820A

$2.25

2

BOLT | MODEL P

01550-08207

$2.73

2

BOLT (8X20) | MODEL R/S/T

09103-08266

$2.80

3

BOLT, CLAMP | MODEL N This part replaces 01517-06125.

01550-0612A

$1.97

3

BOLT | MODEL P

01550-06127

$2.31

3

BOLT, CLAMP | MODEL R/S/T This part replaces 01550-06123.

01550-0612A

$1.97

4

SCREW | MODEL N/P

02142-06127

$1.38

4

SCREW | MODEL R/S/T This part replaces 02142-06123.

02142-0612A

$1.37

5

PLATE, METER

94520-20C00

Unavailable

6

SCREW | MODEL N This part replaces 02142-06125.

02142-0612A

$1.37

6

SCREW | MODEL P

02142-06127

$1.38

6

SCREW | MODEL R/S/T This part replaces 02142-06123.

02142-0612A

$1.37

7

SCREW | MODEL N/P This part replaces 03541-05085.

03541-0508A

$1.41

7

SCREW | MODEL R/S/T This part replaces 03541-05083.

03541-0508A

$1.41

8

MOLDING, METER

94527-19C00

$8.65

9

CUSHION, SPEEDOMETER

94426-20C00

Unavailable

10

CUSHION, FUEL METER

94427-20C00

Unavailable

11

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

$2.70

12

WASHER (5.2X11.0X1.0)

09161-05010

$2.67

13

PLATE, CENTER

94460-19C00

Unavailable

14

SCREW (6X20)

09136-06081

$2.28

15

SPACER This part replaces 09180-06167.

09180-06286

$2.53

16

CUSHION

09320-10015

$2.53

17

CUSHION This part replaces 94638-19C00.

63191-25C00

$2.88

18

SCREW | MODEL N/P

02142-05127

$1.97

18

.SCREW | MODEL R/S/T This part replaces 02142-05123.

02142-0512A

$1.37

19

SCREW, FRONT (6X25)

09139-06029

$4.84

20

WASHER

09160-06036

$2.48

21

SCREW, UPPER (6X16)

09139-06030

$3.33

22

WASHER

09161-06021

$2.80

23

BRACKET, UPPER RH

94560-19C00

Unavailable

24

BRACKET, UPPER LH

94570-19C00

Unavailable

25

SCREW (6X25) | MODEL N

09125-06055

$2.37

25

SCREW, BODY COVER UPPER | MODEL P This part replaces 09125-06038.

09125-06055

$2.37

25

SCREW | MODEL R/S/T This part replaces 02142-06253.

02142-0625A

$1.43

26

NUT

94573-19C00

Unavailable

27

SCREW (6X25)

09139-06029

$4.84

28

WASHER

09160-06036

$2.48

29

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

30

CUSHION

09320-09016

$1.97

31

SCREW, FRONT (6X30)

09139-06042

$5.07

32

WASHER

09160-06036

$2.48

33

BRACKET, UNDER,RH

94531-19C00

Unavailable

34

BRACKET, UNDER,LH

94532-19C00

Unavailable

35

CUSHION

09320-10015

$2.53

36

NUT

94590-19C00

Unavailable

37

BOLT | MODEL N This part replaces 01137-06165.

01570-0616A

$2.24

37

BOLT | MODEL P

01570-06167

$3.25

37

BOLT | MODEL R/S/T This part replaces 01570-06163.

01570-0616A

$2.24

38

SCREW (5X14)

09139-05025

$1.89

39

WASHER

09161-05017

$2.80

40

NUT COWL This part replaces 94484-32B00.

94484-24F00

$3.63

41

SCREW, REAR (6X25)

09139-06029

$4.84

42

WASHER

09160-06036

$2.48

43

SPACER

09180-06116

Unavailable

44

CUSHION

09320-09016

$1.97

45

SCREW, LOWER (6X20)

09136-06081

$2.28

46

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

47

CUSHION, LOWER

09320-09016

$1.97

48

SCREW | MODEL N This part replaces 02142-15165.

02142-0516A

$1.43

48

SCREW | MODEL P This part replaces 02142-15167.

02142-05167

$1.38

48

SCREW | MODEL R/S/T This part replaces 02142-05163.

02142-0516A

$1.43

49

BRACKET, LOWER

94580-19C00

Unavailable

50

SCREW | MODEL N This part replaces 02142-05164.

02142-0516A

$1.43

50

SCREW | MODEL P

02142-05167

$1.38

50

SCREW | MODEL R/S/T This part replaces 02142-05163.

02142-0516A

$1.43

51

WASHER

09161-05017

$2.80

52

NUT COWL This part replaces 94484-32B00.

94484-24F00

$3.63

53

CUSHION, UNDER,REAR

94639-20C00

Unavailable
