1996 Suzuki GSX750FT Frame Cover Diagram

← All diagrams

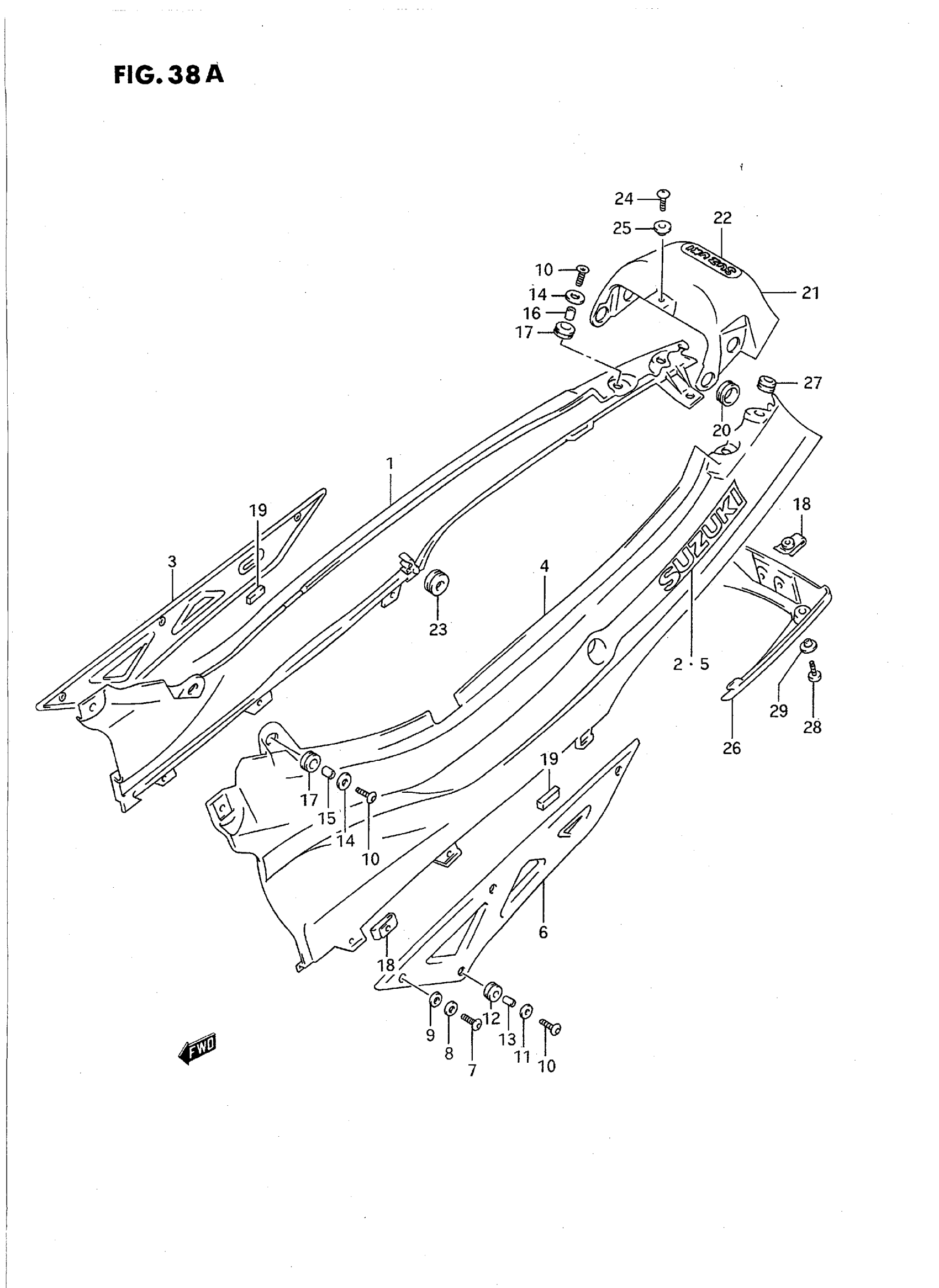

Find the part on the Frame Cover diagram for your 1996 Suzuki GSX750FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX750FT Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE This part replaces 47110-21C10-28V.

47110-21C11-28V

1
Out of stock

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 2 This part replaces 47110-21C10-33J.

47111-20C01

1
Out of stock

2

NO DESCRIPTION AVAILABLE | FOR 28V This part replaces 68135-20C10-0ZC.

68135-20C11-0ZC

1
Out of stock

2

NO DESCRIPTION AVAILABLE | FOR 33J This part replaces 68135-20C10-0ZB.

68135-20C11-0ZB

1
Out of stock

3

COVER, FRAME LOWER RH

47131-20C00

1
Out of stock

4

NO DESCRIPTION AVAILABLE This part replaces 47210-21C10-28V.

47210-21C11-33J

1
Out of stock

4

NO DESCRIPTION AVAILABLE | Includes Item(s) 5 - 5 This part replaces 47210-21C10-33J.

47210-21C11-33J

1
Out of stock

5

NO DESCRIPTION AVAILABLE | FOR 28V This part replaces 68145-20C10-0ZC.

68145-20C11-0ZC

1
Out of stock

5

NO DESCRIPTION AVAILABLE | FOR 33J This part replaces 68145-20C10-0ZB.

68145-20C11-0ZB

1
Out of stock

6

COVER, FRAME LOWER LH

47231-20C00

1
Out of stock

7

SCREW, LOWER COVER NO.1

09120-06005

6
Out of stock

9

6

$3.92

In stock

10

6

$3.58

In stock

11

WASHER

09160-06054

2

$1.73

In stock

12

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

2
Out of stock

13

SPACER

09180-06092

2

$3.72

In stock

14

4

$1.24

In stock

15

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

2
Out of stock

16

SPACER, REAR

09180-06038

2

$2.16

In stock

17

CUSHION

09320-09016

4
Out of stock

18

PLATE, FITTING

47153-19C01

10

$8.97

In stock

19

CUSHION, LOWER

47161-20C00

2
Out of stock

20

4

$2.77

In stock

21

NO DESCRIPTION AVAILABLE This part replaces 47310-21C00-38X.

47311-20C01

1
Out of stock

21

COVER, FRAME CENTER (BLACK) | Includes Item(s) 22 - 22

47310-21C00-33J

1
Out of stock

22

EMBLEM | FOR 38X This part replaces 68271-34A00-24K.

68271-34A00-23S

1
Out of stock

22

EMBLEM | FOR 33J This part replaces 68271-34A00-20H.

68271-34A00-23S

1
Out of stock

23

CUSHION, CENTER BOSS

09320-08018

2
Out of stock

25

WASHER

09169-06037

1

$2.67

In stock

26

COVER, FRAME REAR

47321-20C00

1
Out of stock

27

2

$3.47

In stock

28

SCREW This part replaces 02142-06164.

02142-0616A

2
Out of stock

29

WASHER

09169-06037

2

$2.67

In stock

30

REFER TO FIG.38B (G- 5) FOR

SPECIAL NOTE

—
Out of stock
