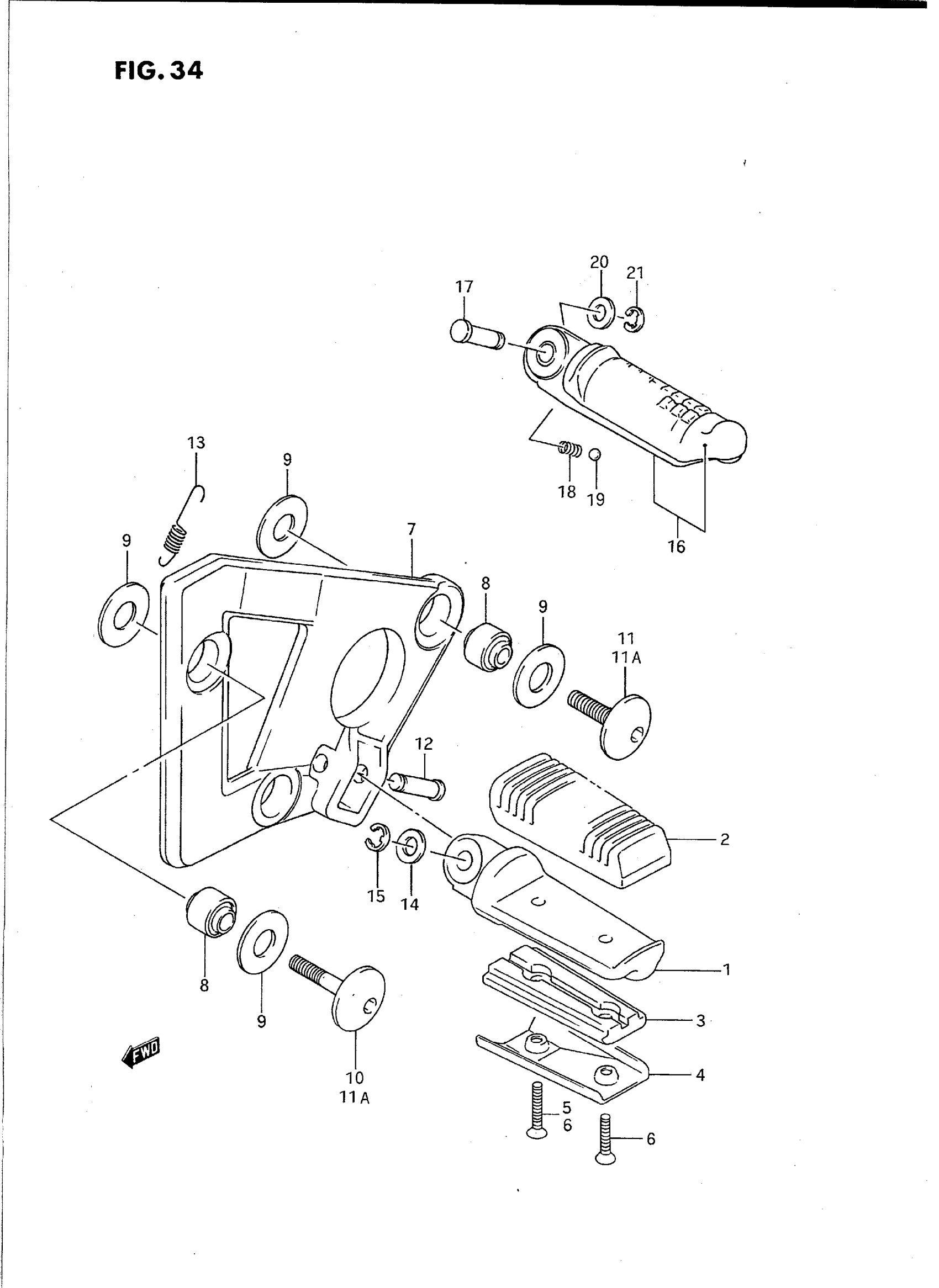

Find the part on the Footrest diagram for your 1996 Suzuki GSX750FT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki GSX750FT Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, FRONT FOOTREST RH

43510-20C00

1
Out of stock

1

BAR, FRONT FOOTREST LH

43520-20C00

1
Out of stock

2

RUBBER, FOOTREST

43550-48B10

2

$30.22

In stock

3

PLATE, FOOTREST

43533-20C00

2
Out of stock

4

COVER, FOOTREST

43534-20C00

2
Out of stock

5

SCREW | MODEL K This part replaces 02122-05208.

02122-0520A

2
Out of stock

6

4

$2.40

In stock

7

HOLDER, FRONT FOOTREST RH | MODEL K/L/M/N/P This part replaces 43517-20C00.

43517-20C01

1
Out of stock

7

HOLDER, FRONT FOOTREST RH | MODEL R/S/T

43517-20C01

1
Out of stock

7

HOLDER, FRONT FOOTREST LH | MODEL K/L/M/N/P This part replaces 43527-20C00.

43527-20C01

1
Out of stock

7

HOLDER, FRONT FOOTREST LH | MODEL R/S/T

43527-20C01

1
Out of stock

8

BUSH, HOLDER

09319-08036

6
Out of stock

9

WASHER This part replaces 09161-12007.

09161-12009

12
Out of stock

10

BOLT, MUFFLER SUPPORT FRONT | MODEL K/L/M/N/P/R This part replaces 09106-08080.

09106-08147

2
Out of stock

11

BOLT | MODEL K/L/M/N/P/R

09106-08089

4
Out of stock

11A

BOLT, MUFFLER SUPPORT FRONT | MODEL S/T This part replaces 09106-08080.

09106-08147

6
Out of stock

12

PIN | MODEL K/L/M/N/P/R/S This part replaces 09208-08012.

09208-08010

2
Out of stock

12

PIN | MODEL T

09208-08010

2
Out of stock

13

SPRING

09443-10037

2
Out of stock

14

WASHER | MODEL K/L/M/N/P/R

08322-01087

2
Out of stock

14

WASHER | MODEL S/T This part replaces 08322-01083.

08322-0108A

2
Out of stock

15

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock

16

BAR, PILLION FOOTREST RH This part replaces 43610-20C00.

43610-20C01

1
Out of stock

16

BAR, PILLION FOOTREST LH This part replaces 43710-20C00.

43710-20C01

1
Out of stock

17

PIN

09208-08011

2
Out of stock

18

SPRING

09440-05005

2
Out of stock

19

BALL

06111-07004

2
Out of stock

20

WASHER | MODEL K/L/M/N/P This part replaces 08322-11084.

08322-0108A

2
Out of stock

20

WASHER | MODEL R/S/T This part replaces 08322-01083.

08322-0108A

2
Out of stock

21

CIRCLIP This part replaces 08332-11063.

08332-1106A

2
Out of stock
