2005 Suzuki GSX750F Under Cowling Diagram

← All diagrams

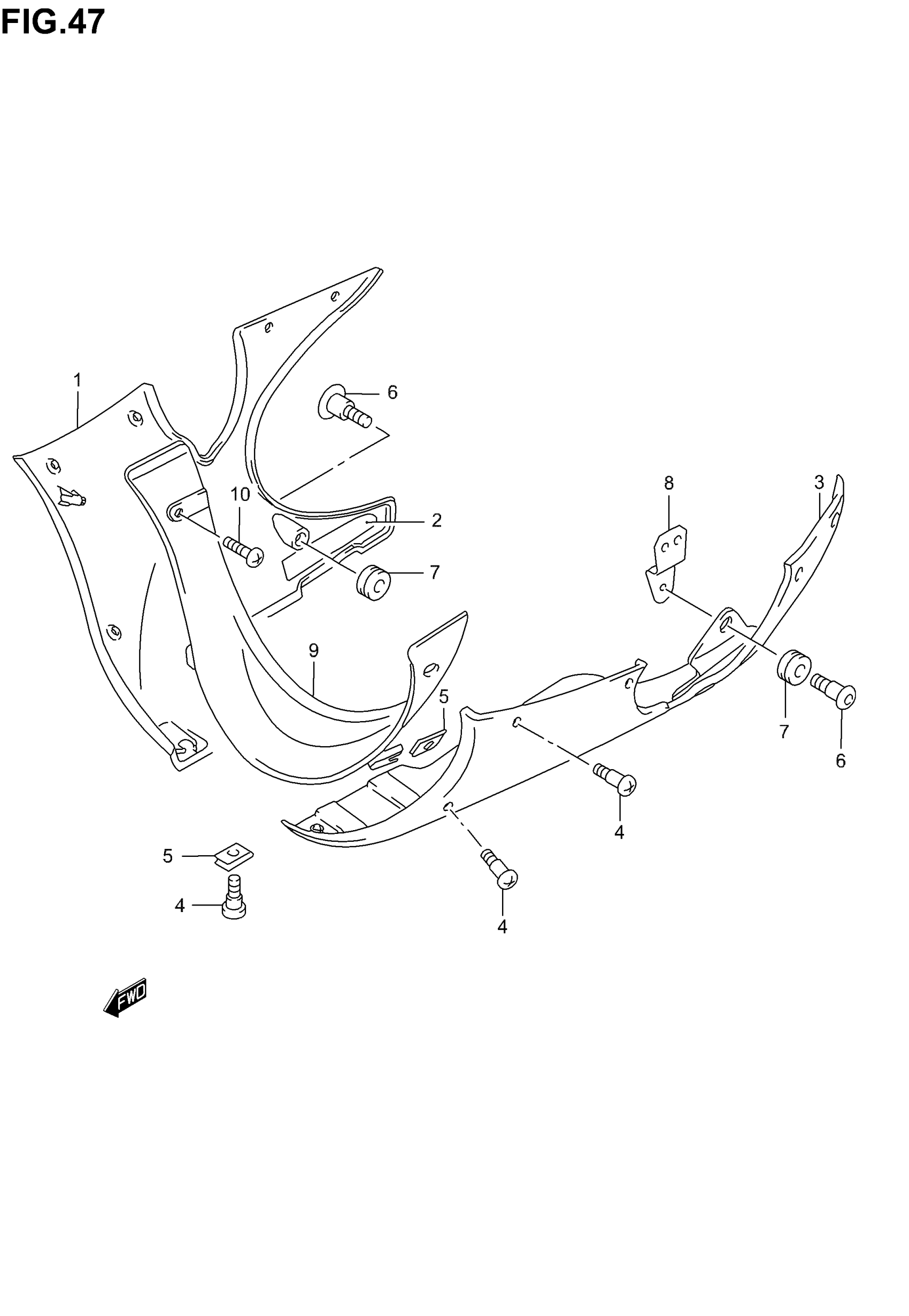

Find the part on the Under Cowling diagram for your 2005 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Suzuki GSX750F Under Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING, UNDER RH (BLUE) | MODEL K4

94470-08F00-YBA

1
Out of stock

1

COWLING COMP,UN This part replaces 94470-08F00-YU8.

94470-08F00

1
Out of stock

1

COWLING, UNDER RH (SILVER) | MODEL K5; Includes Item(s) 2

94470-08F00-YD8

1
Out of stock

2

SHIELD, UNDER COWL

94472-08F00

1
Out of stock

3

COWLING, UNDER LH (BLUE) | MODEL K4

94481-08F00-YBA

1
Out of stock

3

COWLING, UNDER LH (GRAY)

94481-08F00-YU8

1
Out of stock

3

COWLING, UNDER LH (SILVER) | MODEL K5

94481-08F00-YD8

1
Out of stock

4

SCREW

09139-05054

12
Out of stock

5

NUT COWL

94484-24F00

4

$3.95

In stock

6

SCREW, CENTER

09139-06126

2
Out of stock

7

CUSHION

09320-09016

2
Out of stock

8

BRACKET, LOWER LH

94570-08F00

1
Out of stock

9

COWLING, UNDER CENTER

94475-08F00

1
Out of stock

10

SCREW This part replaces 03541-05123.

03541-0512A

2
Out of stock
