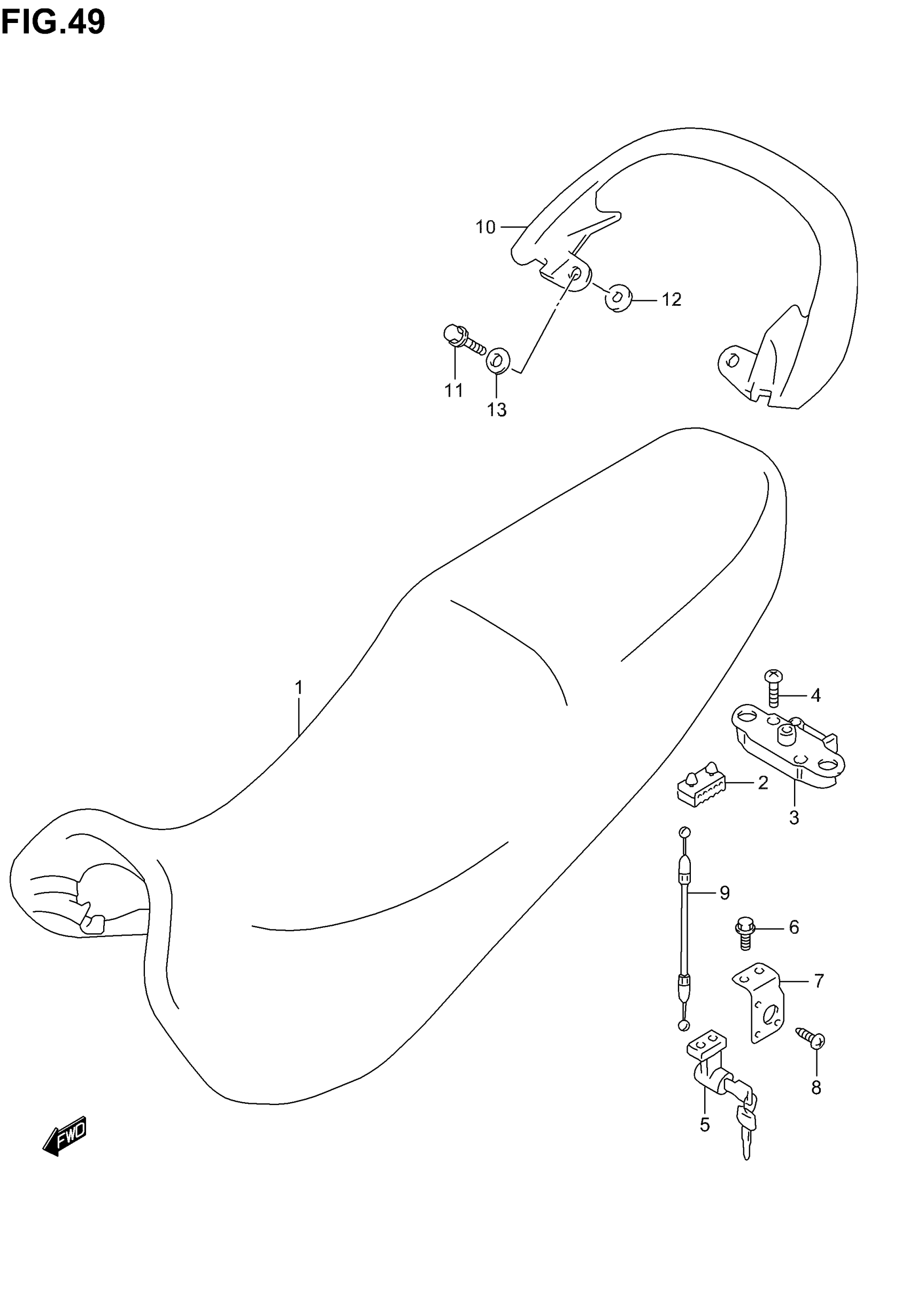

Suzuki GSX750F (2005) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 This part replaces 45100-08F10-LN6.

45100-08F12-LN6

Unavailable

2

CUSHION

09321-08006

$2.80

3

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

$155.43

4

SCREW This part replaces 02122-06303.

02122-0630B

$2.07

5

LOCK SET, SEAT This part replaces 95700-31840.

95700-31841

$88.40

6

BOLT This part replaces 01547-05103.

01547-0510B

$3.22

7

BRACKET, SEAT LOCK

45289-03F10

$14.27

8

SCREW This part replaces 03141-14123.

03141-1412B

$3.08

9

CABLE, SEAT LOCK

45280-43510

Unavailable

10

HANDLE, PILLION RIDER (BLUE) | MODEL K4

46211-03F11-YBA

Unavailable

10

HANDLE, PILLION RIDER (GRAY) | MODEL K4/K5

46211-03F11-YU8

Unavailable

10

HANDLE, PILLION RIDER (BLUE) | MODEL K5

46211-03F11-YAR

Unavailable

11

BOLT This part replaces 01551-08303.

01551-0830A

$3.70

12

CUSHION (17X24X1.5)

46212-03F10

$6.63

13

WASHER (8.5X24X2.3)

09160-08501

$2.29
