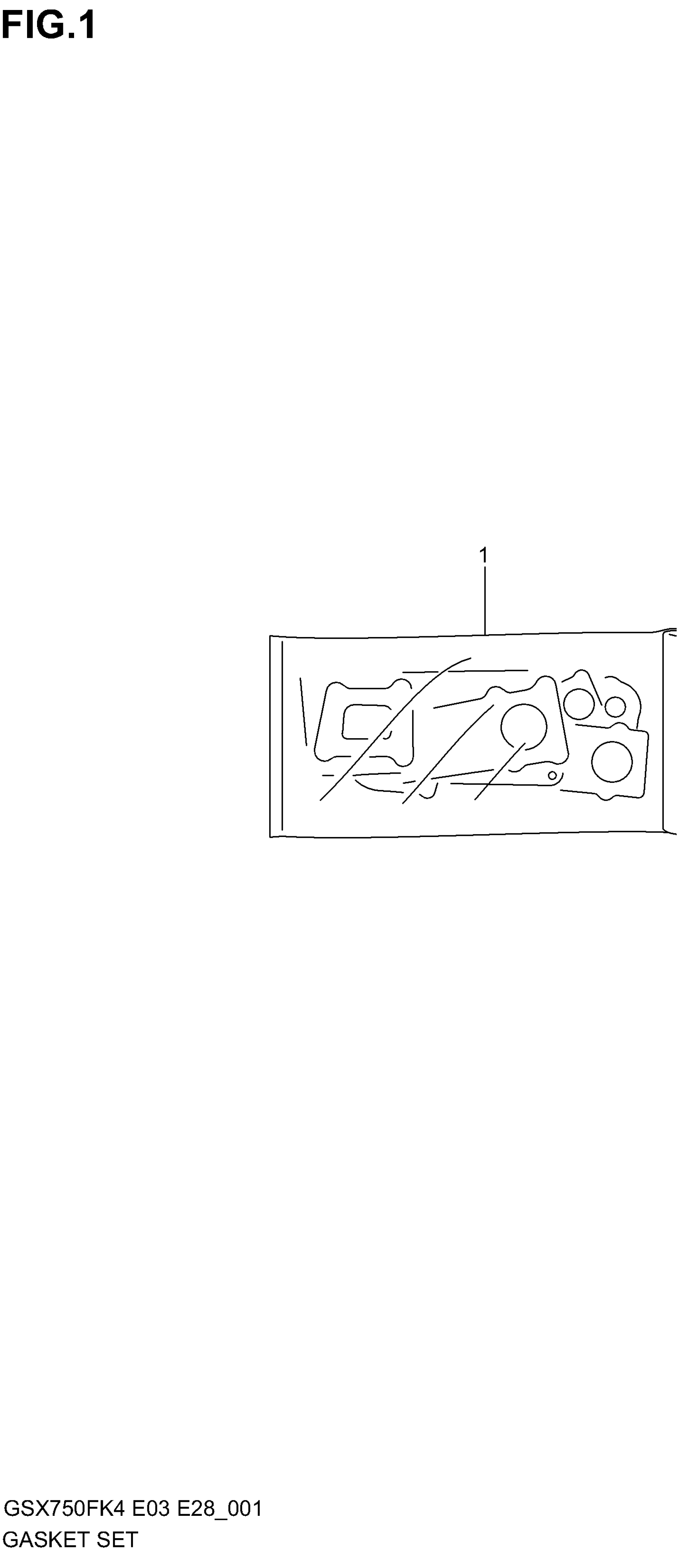

Suzuki GSX750F (2005) GASKET SET Diagram

#

Description
Price

1

GASKET SET | OPT MODEL K4 This part replaces 11402-07890.

11402-07892

$508.10

1

GASKET SET | OPT MODEL K5; Includes Item(s) 2 - 35 This part replaces 11402-07891.

11402-07892

$508.10

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-17D10

$136.53

3

O RING, HEAD GASKET | NOT SHOWN

11143-06B00

$8.33

4

GASKET, CYLINDER HEAD COVER | NOT SHOWN

11173-27A02

$39.51

5

GASKET, BREATHER COVER | NOT SHOWN

11177-27A00-H17

$8.03

6

GASKET,HEAD COV | NOT SHOWN This part replaces 11178-27A01.

11178-27A02

$6.21

7

GASKET,HEAD COV | NOT SHOWN This part replaces 11179-27A02.

11179-27A03

$6.61

8

GASKET, CYLINDER | NOT SHOWN

11241-27A04

$16.35

9

GASKET, CLUTCH COVER | NOT SHOWN

11482-27A20

$13.01

10

GASKET, STARTER GEAR COVER | NOT SHOWN

11483-27A20

$10.24

11

O RING, OIL PAN | NOT SHOWN

11489-27A21

$14.94

12

GASKET, SIGNAL GEN COVER | NOT SHOWN

11491-27A30

$7.69

13

GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-27A10

$3.62

14

.GASKET,EXHAUST | NOT SHOWN

14181-18C00

$6.61

15

O RING, OIL PUMP | NOT SHOWN

16491-27A01

$10.51

16

GASKET, OIL STR PROTECTOR | NOT SHOWN

16528-27A21

$6.18

17

GASKET, OIL OUTLET | NOT SHOWN

16529-27A01

$2.15

18

GASKET (5.8X11X1.2) | NOT SHOWN

09168-06024

$2.19

19

GASKET (8.2X14X1) | MODEL K4 NOT SHOWN This part replaces 09168-08008.

09168-08016

$1.64

19

GASKET (8.2X14X1) | MODEL K5 NOT SHOWN

09168-08016

$1.64

20

GASKET (8.5X17X2.3) | NOT SHOWN

09168-08021

$2.66

21

.GASKET (10.2X20X2.3) | NOT SHOWN

09168-10031

$2.01

22

GASKET (14.1X18X1.5) | NOT SHOWN

09168-14004

$1.69

23

GASKET (16X22X2) | NOT SHOWN

09168-16002

$1.89

24

O RING (D:1.2,ID:4.0) | NOT SHOWN

09280-04004

$1.76

25

O RING (D:2.5,ID:13.8) | NOT SHOWN

09280-14011

$4.30

26

O-RING (D:2.4,ID:15.8) | NOT SHOWN

09280-15007

$1.71

27

O RING (D:2.4,ID:16.8) | NOT SHOWN

09280-17002

$4.62

28

O RING (D:3.1,ID:16.8) | NOT SHOWN

09280-17003

$1.64

29

O RING (D:3.2,ID:17.8) | NOT SHOWN

09280-18009

$5.26

30

O RING (D:2.5,ID:21) | NOT SHOWN

09280-21008

$1.89

31

O RING (D:3.7,ID:21.7) | NOT SHOWN

09280-22016

$5.04

32

.O-RING (D:3,ID:24.5) | NOT SHOWN

09280-24003

$1.55

33

O RING (D:1.0,ID:24.5) | NOT SHOWN

09280-25001

$1.56

34

O RING (D:2.4,ID:36.5) | NOT SHOWN

09280-36001

$3.01

35

O RING (D:2.4,ID:41.7) | NOT SHOWN

09280-42003

$7.80
