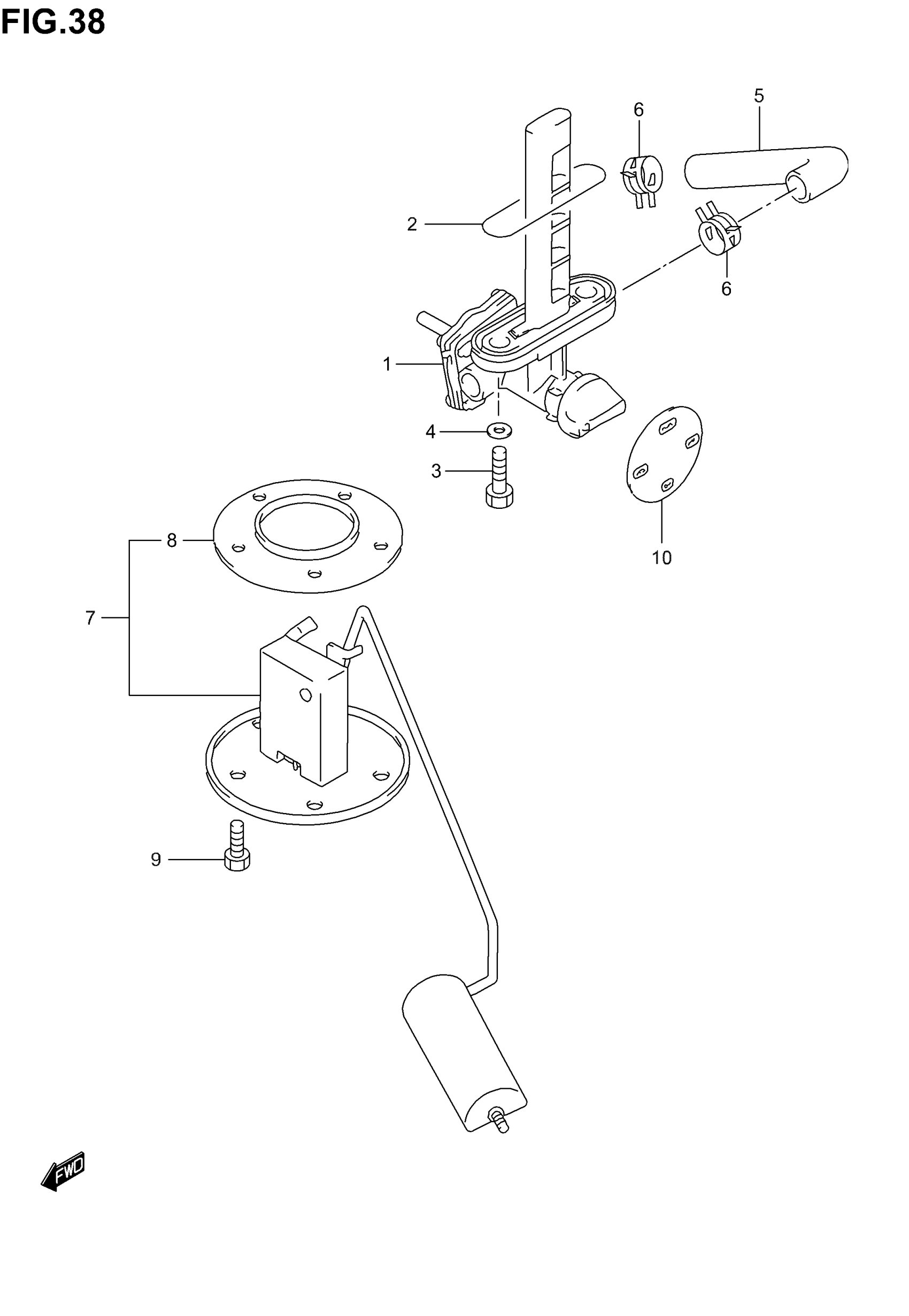

Suzuki GSX750F (2005) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 2 This part replaces 44300-08F00.

44300-08F11

$110.68

2

O RING This part replaces 44348-49170.

44348-49171

$2.80

3

BOLT This part replaces 09128-06006.

09128-06057

$1.64

4

GASKET

09168-06026

$2.80

5

HOSE,FUEL,ON This part replaces 44431-21E00.

44431-21ER0

$12.88

6

CLIP This part replaces 09401-11407.

09401-11415

$2.24

7

GAUGE ASSY,FUEL | Includes Item(s) 8 This part replaces 34810-08F00.

34810-08F01

$74.01

8

GASKET

34825-45100

$5.30

9

BOLT This part replaces 09117-05003.

01570-0510B

$2.55

10

LABEL,FUEL COCK This part replaces 44395-08F00-13L.

44395-08F01-13L

$23.93
