2003 Suzuki GSX750F Seat Diagram

← All diagrams

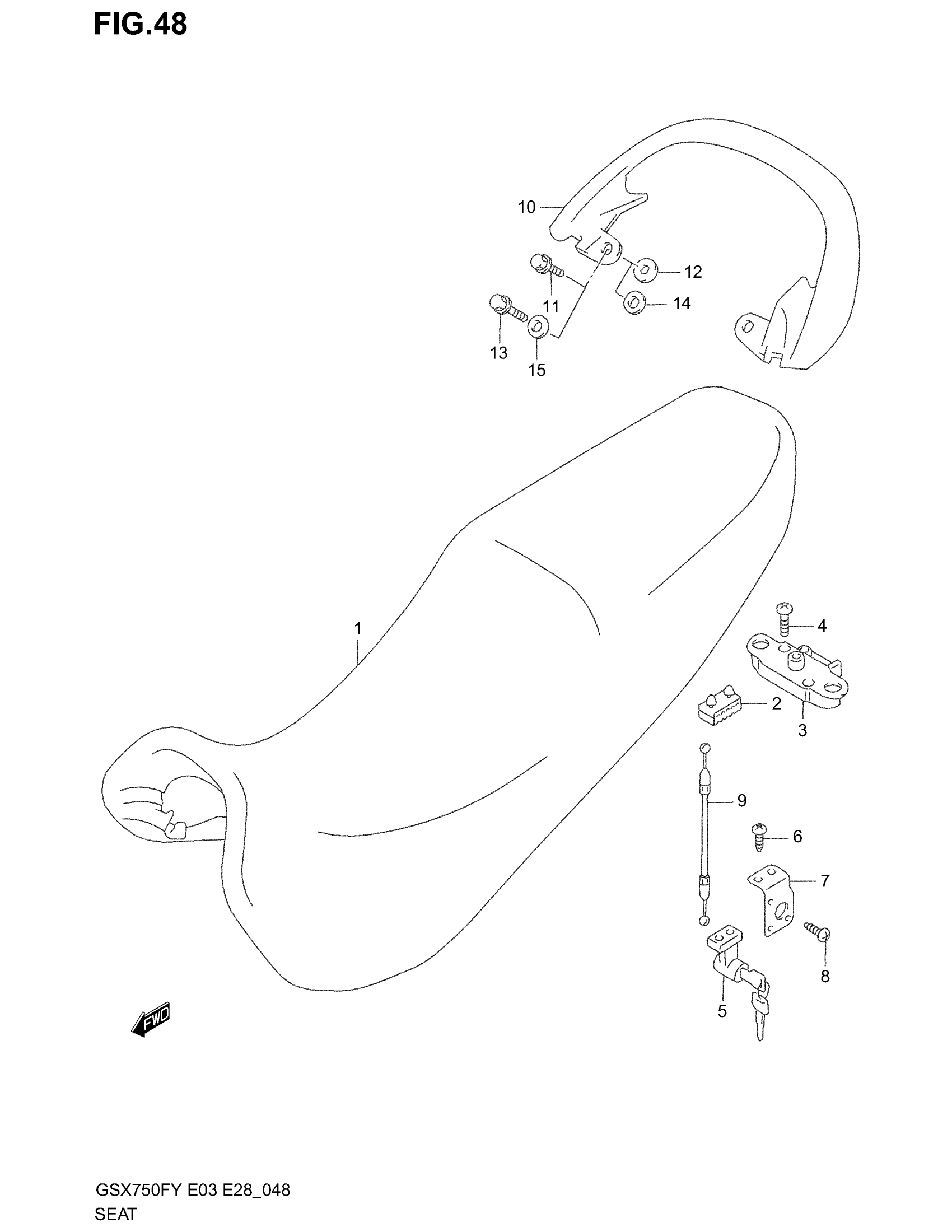

Find the part on the Seat diagram for your 2003 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2003 Suzuki GSX750F Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 45100-08F00-V09.

45100-08F01-V09

1
Out of stock

2

CUSHION

45149-31300

4
Out of stock

3

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

1
Out of stock

4

SCREW This part replaces 02122-06303.

02122-0630B

2
Out of stock

5

LOCK SET, SEAT This part replaces 95700-31840.

95700-31841

1
Out of stock

6

BOLT This part replaces 01547-05103.

01547-0510B

2
Out of stock

7

BRACKET, SEAT LOCK

45289-03F00

1
Out of stock

8

SCREW This part replaces 03141-14123.

03141-1412B

2
Out of stock

9

CABLE, SEAT LOCK

45280-25D00

1
Out of stock

10

HANDLE, PILLION RIDER (MAROON) | MODEL W !46211-03F11-Y4M USED WITH 01550-08303 (2PCS) 09160-08501 (2PCS) 46212-03F10 (2PCS) This part replaces 46211-03F10-Y4M.

46211-03F11-Y4M

1
Out of stock

10

HANDLE,PILLION | MODEL W !46200-03F11-33J USED WITH 01550-08303 (2PCS) 09160-08501 (2PCS) 46212-03F10 (2PCS) This part replaces 46211-03F10-33J.

46211-03F11-13L

1
Out of stock

10

HANDLE, PILLION RIDER (MAROON) | MODEL X

46211-03F11-Y4M

1
Out of stock

10

HANDLE, PILLION RIDER (BLUE) | MODEL X

46211-03F11-Y7H

1
Out of stock

11

BOLT | %F.NO.JS1GR7GA W2101410 This part replaces 01810-08253.

01551-0825A

2
Out of stock

12

CUSHION | %F.NO.JS1GR7GA W2101410 This part replaces 09320-14006.

14761-03450

2
Out of stock

13

BOLT | F.NO.JS1GR7GA W2101411% This part replaces 01550-08303.

01550-0830A

2
Out of stock

14

CUSHION (17X24X1.5) | F.NO.JS1GR7GA W2101411%

46212-03F10

2
Out of stock

15

WASHER (8.5X24X2.3) | F.NO.JS1GR7GA W2101411%

09160-08501

2
Out of stock
