2003 Suzuki GSX750F Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2003 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

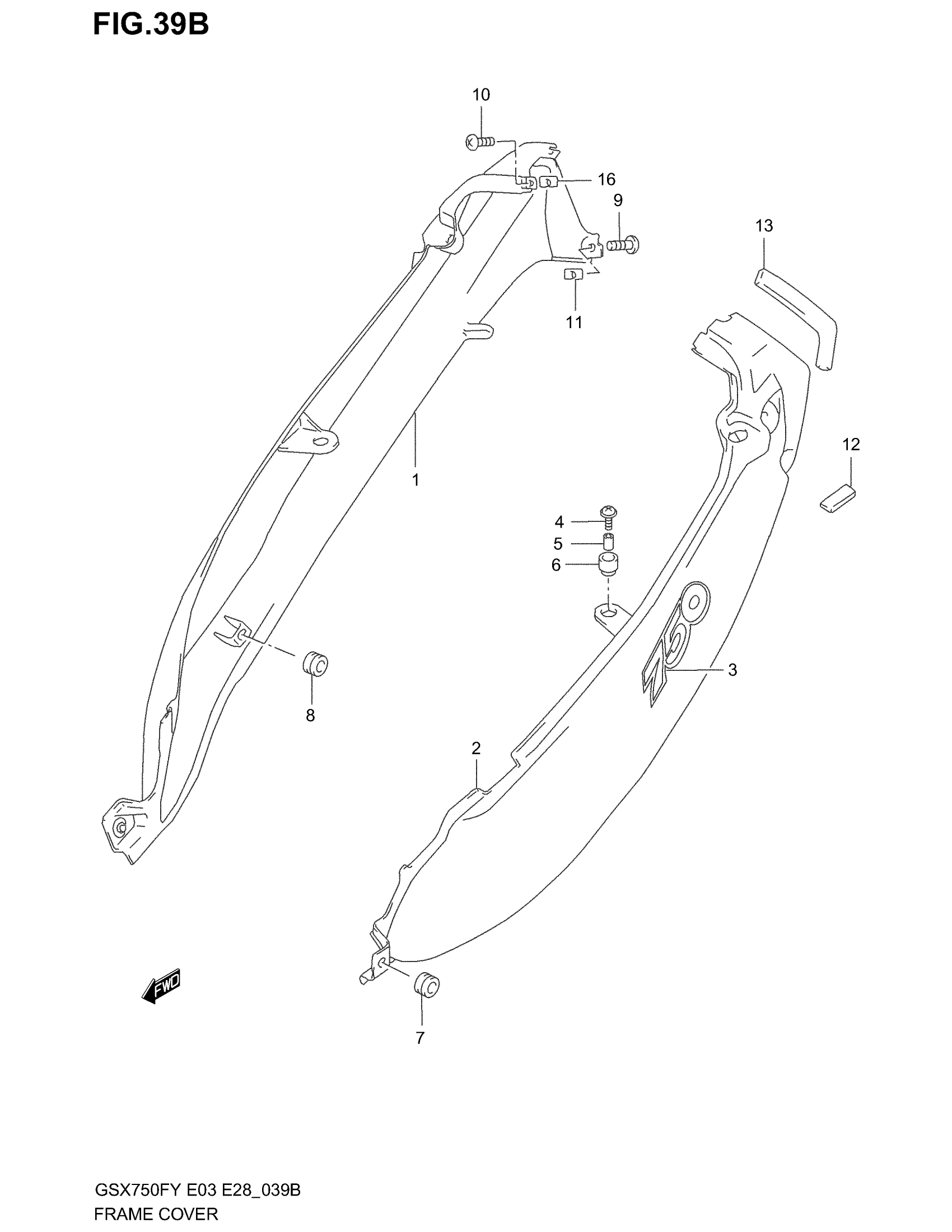

2003 Suzuki GSX750F Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (RED)

47110-08F50-19A

1
Out of stock

1

COVER, FRAME RH (BLACK)

47110-08F50-YFX

1
Out of stock

2

COVER, FRAME LH (RED)

47210-08F50-19A

1
Out of stock

2

COVER, FRAME LH (BLACK) | Includes Item(s) 3 - 3

47210-08F50-YFX

1
Out of stock

3

EMBLEM | FOR 19A

68131-08F50-HR3

2
Out of stock

3

EMBLEM | FOR YFX

68131-08F50-EG1

2
Out of stock

4

SCREW, UPPER

09136-06105

2
Out of stock

5

SPACER

09180-06286

2
Out of stock

6

CUSHION

09320-10045

2

$3.63

In stock

7

CUSHION, FRONT

09320-08028

2
Out of stock

8

CUSHION, CENTER

09320-08018

2
Out of stock

9

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

2
Out of stock

10

SCREW This part replaces 03241-15123.

03241-1512B

1
Out of stock

11

NUT

09148-05038

3
Out of stock

12

CUSHION (10X30X2)

44894-24A00

2
Out of stock

13

CUSHION

47161-08F00

2
Out of stock
