Description

Price

1

RELAY ASSY,STARTING MOTOR | Includes Item(s) 1A - 1B This part replaces 31800-21E20.

31800-21E30

$61.62

1A

.COVER This part replaces 31861-21E20.

31861-47E00

$18.23

1B

FUSE (30A)

09481-30101

$2.28

2

BOLT, STARTING MOTOR

09128-06013

$1.24

3

COIL ASSY, IGNITION NO.1

33410-19C01

$181.53

4

COIL ASSY, IGNITION NO.2

33420-19C01

$186.88

5

SPACER, IG COIL (6.2X12.6X14)

09180-06174

$5.09

6

CLAMP This part replaces 09404-06432.

09404-06039

$1.73

6

CLAMP This part replaces 09404-06431.

09404-06039

$1.73

7

CLAMP, HT CORD (L:165)

09407-18402

$2.21

8

BOLT This part replaces 01550-06453.

01550-0645A

$2.42

9

CAP, SPARK PLUG

33510-48B10

$29.09

10

SEAL, SPARK PLUG

33541-23E01

$5.80

11

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

12

COVER, SPARK PLUG CAP

33543-48B00

$6.83

13

WIRE, BATTERY MINUS | Includes Item(s) 14

33810-08F00

Unavailable

14

CAP, STARTING MOTOR

31861-48B10

$7.40

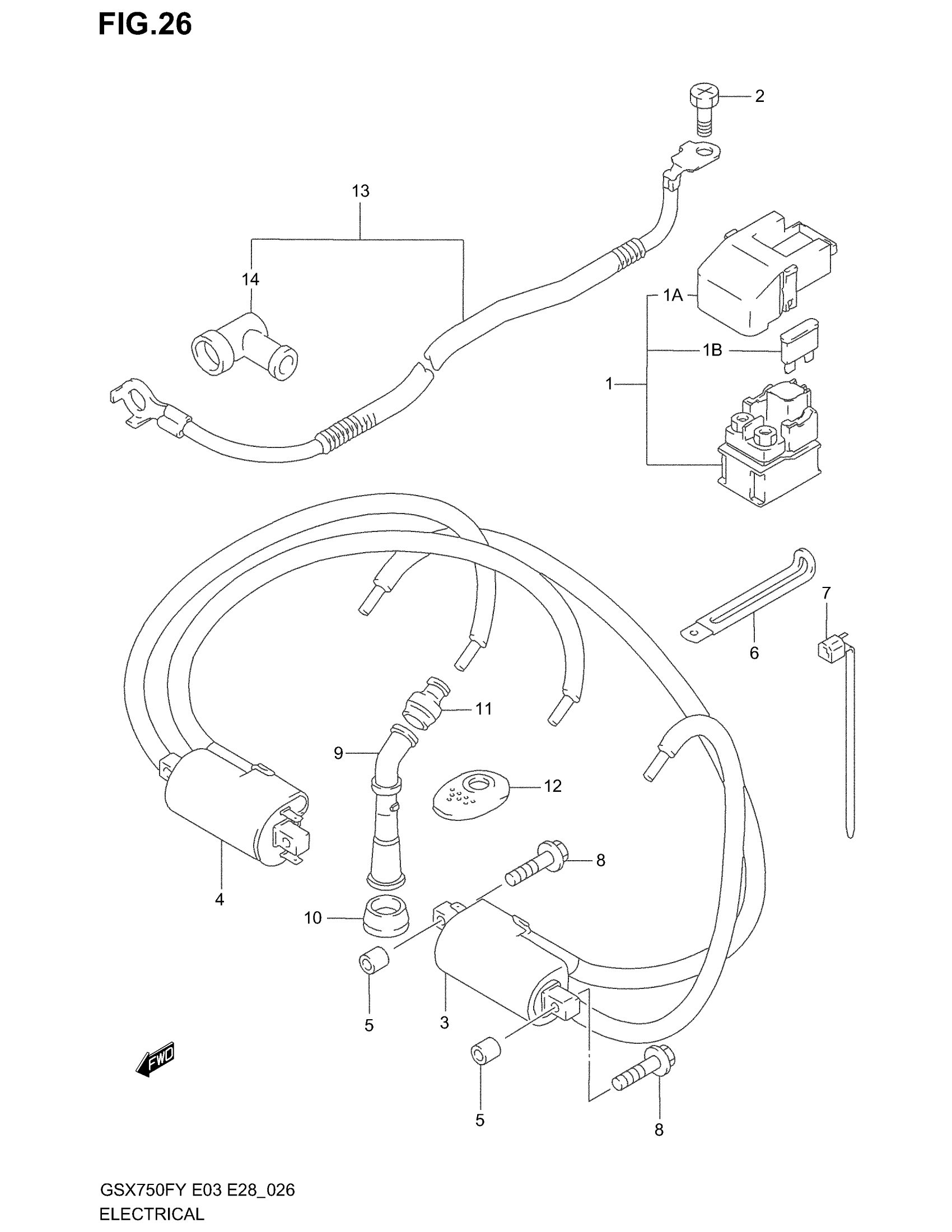

Suzuki GSX750F (2003) ELECTRICAL Diagram
