1993 Suzuki GSX750F Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1993 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

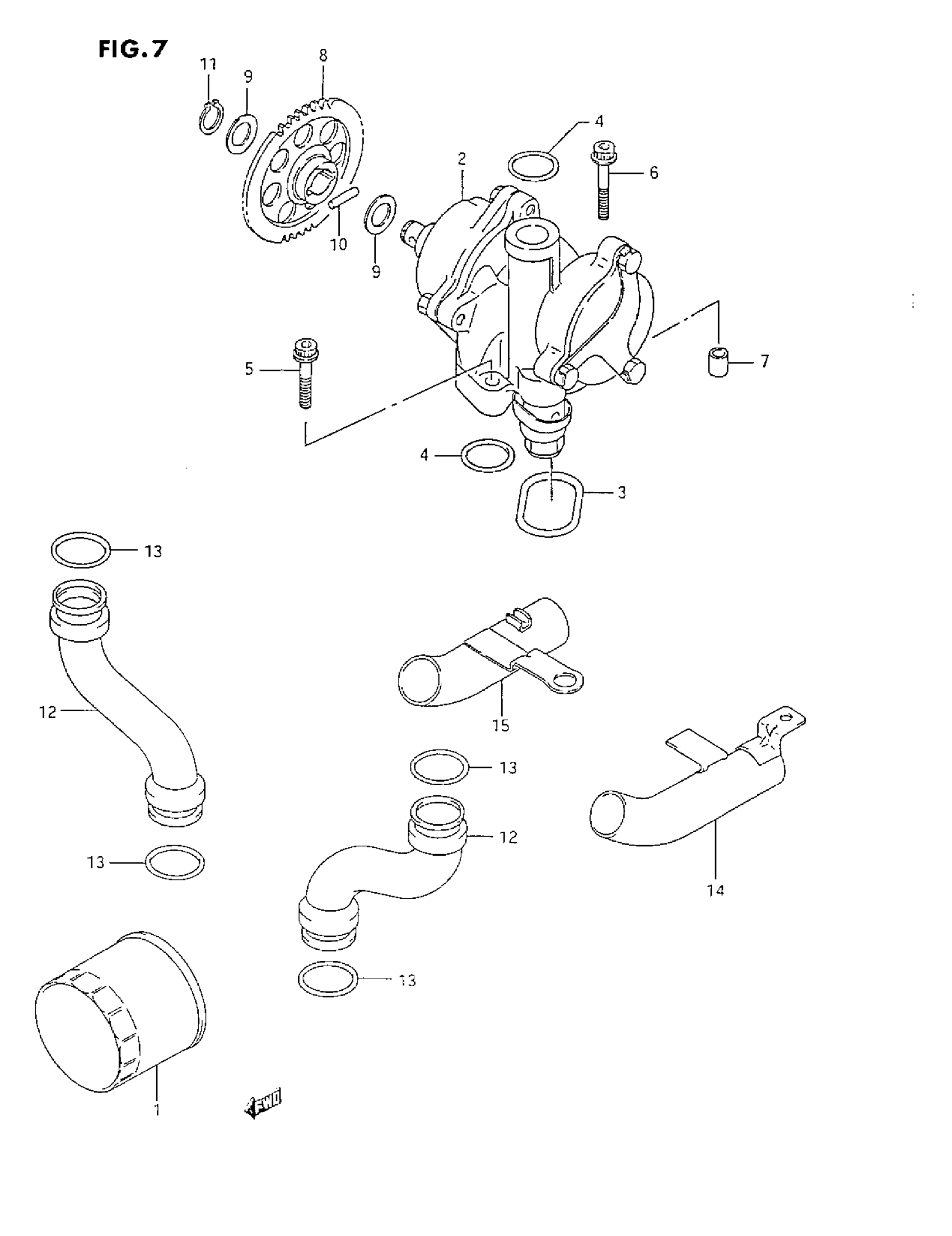

1993 Suzuki GSX750F Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FILTER, ENGINE OIL | MODEL K/L/M/N This part replaces 16510-06B00.

16510-07J00

1
Out of stock

1

FILTER, ENGINE OIL | MODEL P/R This part replaces 16510-06B01.

16510-07J00

1
Out of stock

2

PUMP ASSY, ENGINE OIL This part replaces 16400-06B10.

16400-06B01

1
Out of stock

3

O-RING, OIL PUMP

16491-27A01

1

$10.51

In stock

4

O-RING

09280-18009

2

$5.64

In stock

5

2

$3.26

In stock

6

1

$3.29

In stock

7

PIN

04211-09129

2
Out of stock

8

GEAR, OIL PUMP DRIVEN

16331-06B01-0B1

1
Out of stock

9

WASHER

08221-12205

2

$2.50

In stock

10

PIN

09261-05006

1

$1.83

In stock

11

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

12

PIPE, OUTLET

16481-17C00

2
Out of stock

13

O-RING

09280-22016

4

$5.40

In stock

14

PIPE, OIL UNDER, LH

16530-27A02

1
Out of stock

15

PIPE, OIL UNDER, RH

16540-27A02

1
Out of stock
