1993 Suzuki GSX750F Left Handle Switch Diagram

← All diagrams

Find the part on the Left Handle Switch diagram for your 1993 Suzuki GSX750F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

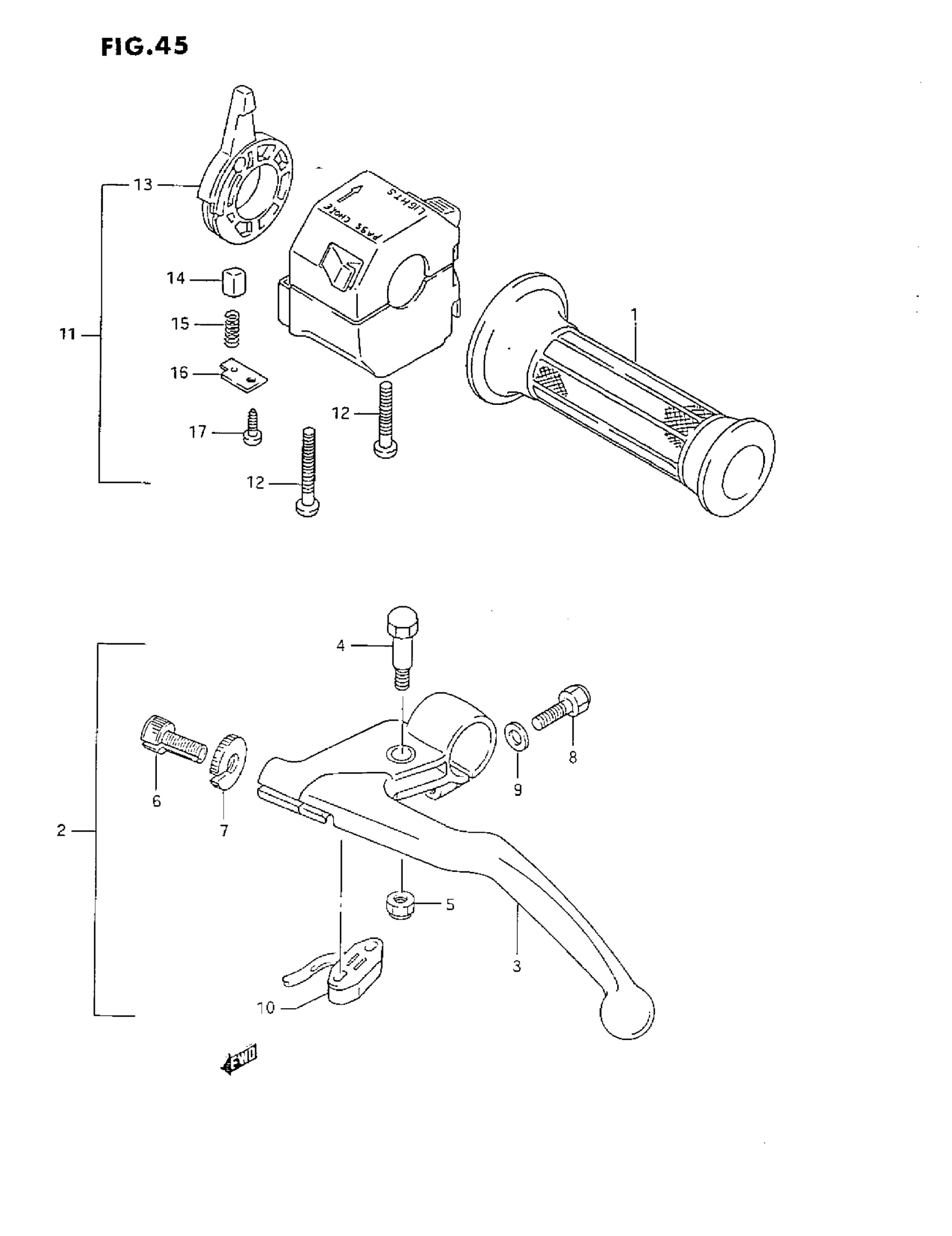

1993 Suzuki GSX750F Left Handle Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP, LH

57211-49500

1
Out of stock

2

LEVER ASSY, CLUTCH

57500-19C01

1
Out of stock

3

LEVER This part replaces 57620-19C01.

57620-27A31

1
Out of stock

4

BOLT

57431-49110

1
Out of stock

5

.NUT This part replaces 08319-21065.

08319-2106B

1
Out of stock

6

ADJUSTER

57441-44400

1

$8.33

In stock

7

NUT This part replaces 57442-44400.

57442-11010

1
Out of stock

8

BOLT

01204-06204

1
Out of stock

9

.WASHER This part replaces 08322-21064.

08322-0106B

1
Out of stock

10

SWITCH ASSY, CLUTCH This part replaces 57560-08A00.

57560-18D10

1
Out of stock

11

NO DESCRIPTION AVAILABLE This part replaces 37400-47B30.

37400-47B32

1
Out of stock

12

.SCREW This part replaces 02112-05455.

02112-0545B

2
Out of stock

13

LEVER, CHOCK This part replaces 37481-30B00.

37481-30B01

1
Out of stock

14

PIECE, SLIDE

37482-30B00

1
Out of stock

15

SPRING

37483-30B00

1
Out of stock

16

PLATE

37486-30B00

1
Out of stock

17

SCREW This part replaces 03511-04125.

03511-0412A

1
Out of stock
