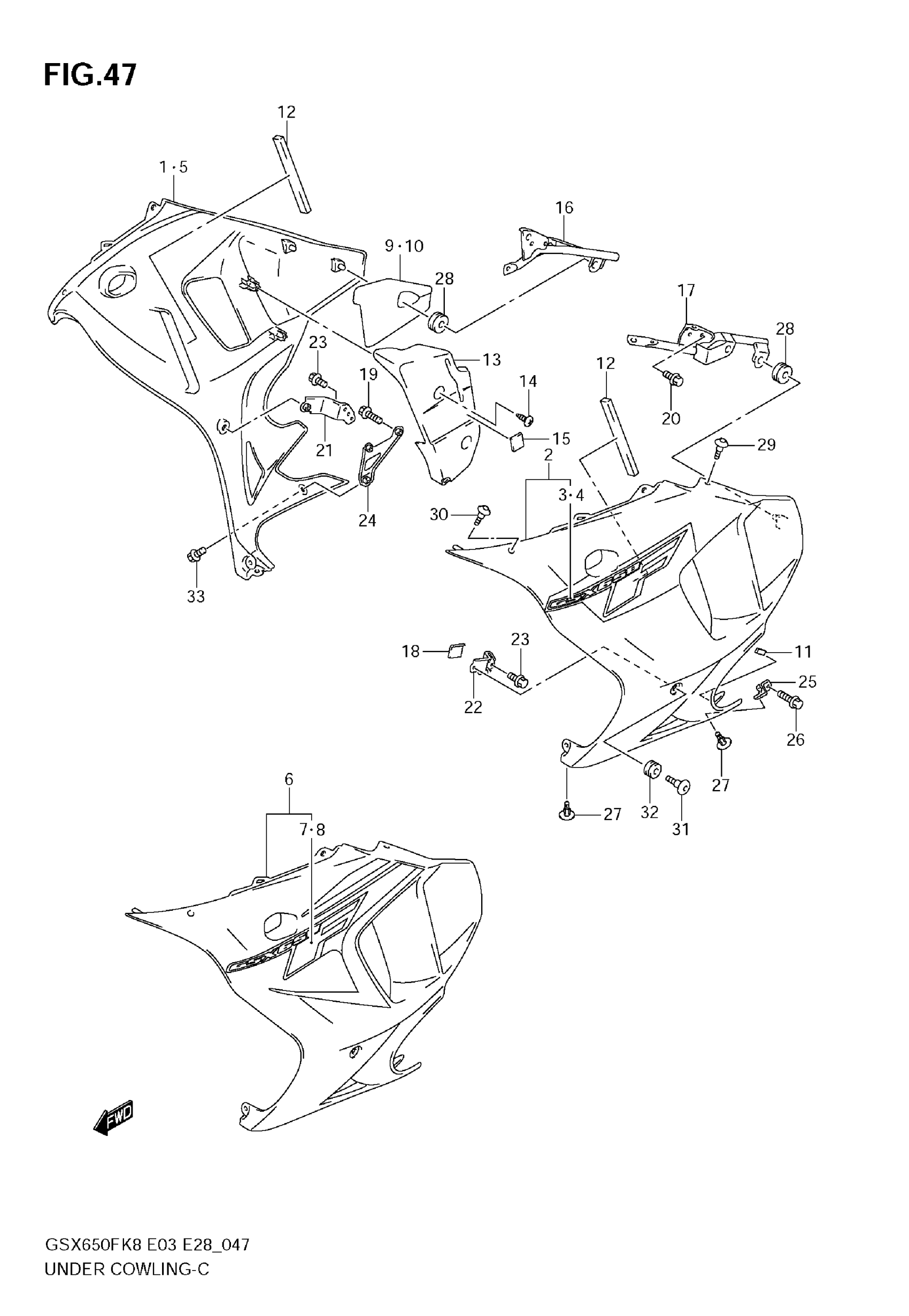

Suzuki GSX650F (2009) UNDER COWLING (MODEL K8) Diagram

#

Description
Price

1

COWLING, UNDER RH (BLACK)

94470-17H10-YAY

$681.62

2

COWLING, UNDER LH (BLACK) | Includes Item(s) 3 - 4

94480-17H10-YAY

$664.98

3

EMBLEM, RH

68181-17H00-FJK

Unavailable

4

EMBLEM, LH

68191-17H00-FJK

Unavailable

5

COWLING, UNDER RH

94470-17H00-CWH

Unavailable

5

COWLING, UNDER RH

94470-17H00-EGR

Unavailable

6

COWLING, UNDER LH

94480-17H00-CWH

Unavailable

6

COWLING, UNDER LH | Includes Item(s) 7 - 8

94480-17H00-EGR

Unavailable

7

TAPE, RH | FOR CWH

68185-17H00-FJH

Unavailable

7

TAPE, RH | FOR EGR

68185-17H00-FJJ

Unavailable

8

TAPE, LH | FOR CWH

68195-17H00-FJH

Unavailable

8

TAPE, LH | FOR EGR

68195-17H00-FJJ

Unavailable

9

SHIELD, HEAT RH

94472-17H00

Unavailable

10

SHIELD, HEAT LH

94482-17H00

Unavailable

11

CUSHION (10X30X6)

33652-47F00

$3.38

12

CUSHION, UNDER COWL

94476-17H00

$6.57

13

PROTECTOR, RH

94477-17H00

Unavailable

14

SCREW

03541-0512B

$1.77

15

CUSHION

94478-17H00

Unavailable

16

BRACKET, UNDER COWL RH | E3,E28

94530-17H00

Unavailable

17

BRACKET, UNDER COWL LH

94540-17H00

Unavailable

18

CUSHION, LH BRACKET

94474-17H00

$5.18

19

BOLT, FRONT RH

01550-0620B

$2.38

20

BOLT, FRONT LH

01550-0612B

$2.38

21

BRACKET, CENTER RH

94550-17H00

$17.22

22

BRACKET, CENTER LH

94560-17H00

$17.22

23

BOLT

01550-0610B

$2.43

24

BRACKET, REAR RH

94570-17H00

Unavailable

25

BRACKET, REAR LH This part replaces 94580-17H00.

94580-17H01

Unavailable

26

BOLT, LH

01550-0620B

$2.38

27

CLIP

94479-35F00

$5.14

28

CUSHION

09320-08018

$2.80

29

SCREW, FRONT UPPER

09139-05077

$2.97

30

SCREW, FRONT SIDE

09139-05064

$2.56

31

SCREW, CENTER

09139-06126

$3.65

32

CUSHION

09320-09016

$1.97

33

SCREW, REAR LOWER RH

09139-06144

$2.50
