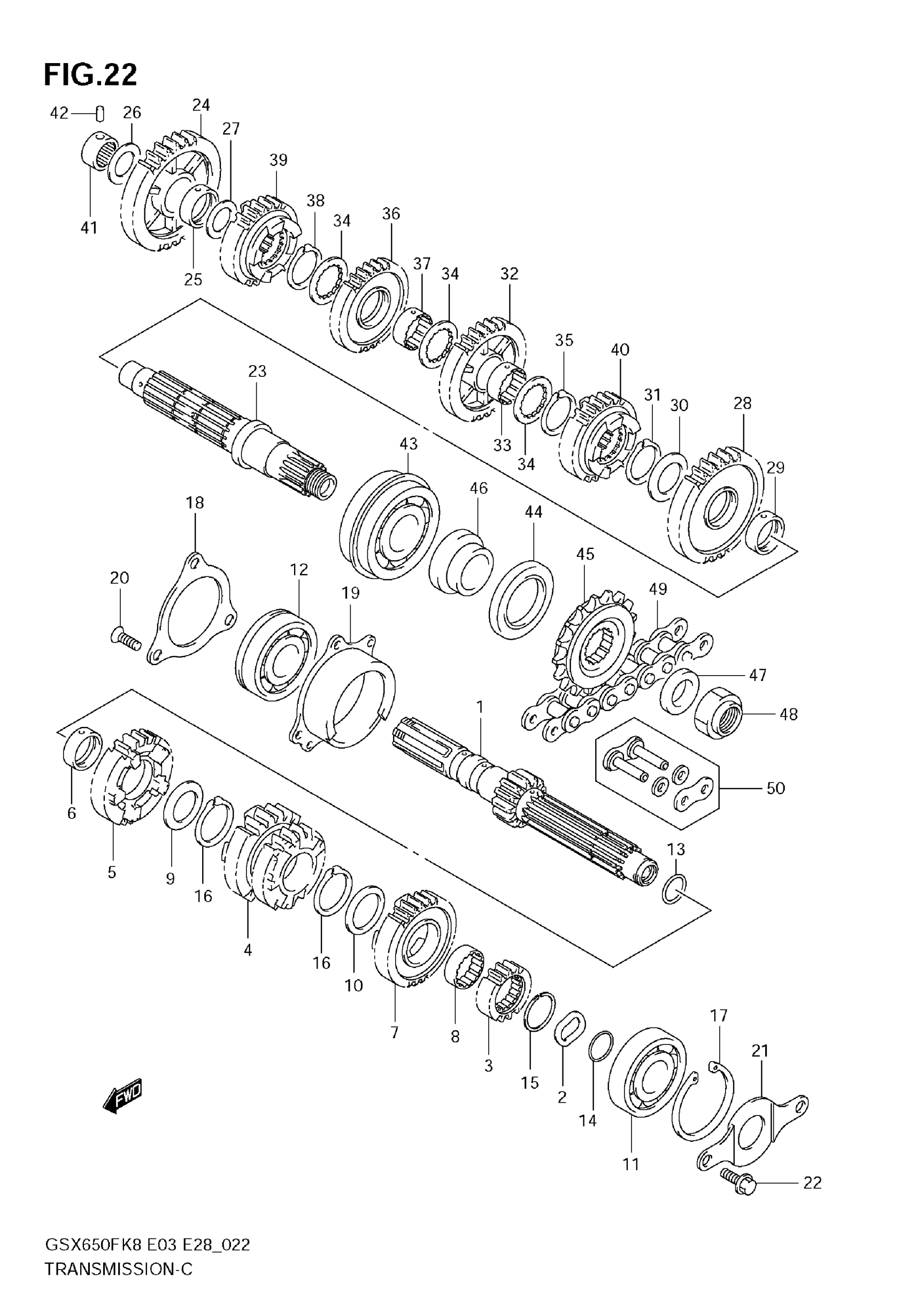

Suzuki GSX650F (2009) TRANSMISSION Diagram

#

Description
Price

1

SHAFT, COUNTER (NT:13)

24120-17H00

Unavailable

2

WASHER, CNTR

24127-18H00

Unavailable

3

GEAR, 2ND DRIVE This part replaces 24221-18H00.

24221-18H10

Unavailable

4

GEAR, 3RD & 4TH DRIVE | NT:20/22

24231-17H00

Unavailable

5

GEAR, 5TH DRIVE (NT:24)

24251-17H00

Unavailable

6

BUSH, 5TH DRIVE GEAR

24252-35F00

$27.88

7

GEAR, 6TH DRIVE (NT:28)

24261-18H00

Unavailable

8

BUSH, 6TH DRIVE

24262-35F00

$32.30

9

WASHER, 5TH DRIVE | 27X36X1.0

09160-27008

$4.00

10

WASHER, 6TH DRIVE

09167-27001

$2.56

11

BEARING, CNTR, L | 20X52X15

09262-20080

$42.13

12

BEARING, CNTR, R | 25X62X17

09262-25073

$23.39

13

O RING, CNTR SHAFT | D:1.9,ID:16.6

09280-17004

$3.98

14

O RING, CNTR SHAFT | D:1.0,ID:19.5

09280-20001

$1.52

15

CIRCLIP, 2ND DRIVE

09380-27004

$3.33

16

CIRCLIP, 5TH/6TH

09380-27006

$2.73

17

CIRCLIP This part replaces 08331-4152A.

08331-41529

$4.83

18

RETAINER, CNTR SHAFT BRG, R

24751-18H00

Unavailable

19

HOUSING, CNTR SHAFT, R

24771-18H00

Unavailable

20

SCREW, HOUSING (6X20)

09139-06159

$4.45

21

RETAINER, CL PUSH ROD

24741-18H00

Unavailable

22

SCREW, PUSH (6X12)

09103-06236

$2.71

23

SHAFT, DRIVE

24131-18H00

Unavailable

24

GEAR, 1ST DRIVEN (NT:40)

24311-18H00

Unavailable

25

BUSH, 1ST DRIVEN

24312-02F00

$31.78

26

WASHER, 1ST, R | 20X34X1.0

09181-20251

$2.77

27

WASHER, 1ST, L | 22X34X1.0

09181-22223

$2.85

28

GEAR, 2ND DRIVEN (NT:35)

24321-18H00

Unavailable

29

BUSH, 2ND DRIVEN

24322-02F01

$24.28

30

WASHER, 2ND DRIVEN | 27X36X1.0

09160-27008

$4.00

31

CIRCLIP, 2ND DRIVEN

09380-27006

$2.73

32

GEAR, 3RD DRIVEN (NT:32)

24331-17H00

Unavailable

33

BUSH, 3RD DRIVEN GEAR

24262-17E01

$43.58

34

WASHER, 3RD & 4TH DRIVEN

24333-02F00

$6.62

35

CIRCLIP, 3RD DRIVEN

09380-27006

$2.73

36

GEAR, 4TH DRIVEN (NT:30)

24341-18H00

Unavailable

37

BUSH, 4TH DRIVEN GEAR

24262-17E01

$43.58

38

CIRCLIP, 4TH DRIVEN

09380-27006

$2.73

39

GEAR, 5TH DRIVEN (NT:29)

24351-18H00

Unavailable

40

GEAR, 6TH DRIVEN (NT:31)

24361-17H00

Unavailable

41

BEARING, DRIVE SHAFT, R | 20X34X3.5

09263-20087

$54.53

42

PIN, DRIVE SHAFT, R

09261-06003

$1.49

43

BEARING, DRIVE SHAFT, L | 30X62X23.8

09267-30011

$181.72

44

SEAL, DRIVE SHAFT OIL

09283-42018

$32.83

45

SPROCKET, ENGINE (NT:15) This part replaces 27510-20F00.

27510-20F21

$48.81

46

SPACER, SPROCKET

27531-17H00

Unavailable

47

SPACER, SPROCKET

27532-17H00

Unavailable

48

NUT

09159-20004

$14.15

49

CHAIN,DRIVE (RK525SMOZ8) This part replaces 27600-06G00-118.

27600-06G40-120

$166.09

50

JOINT SET, CHAIN | OPT

27620-06G00

$24.27
