2009 Suzuki GSX650F AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 2009 Suzuki GSX650F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

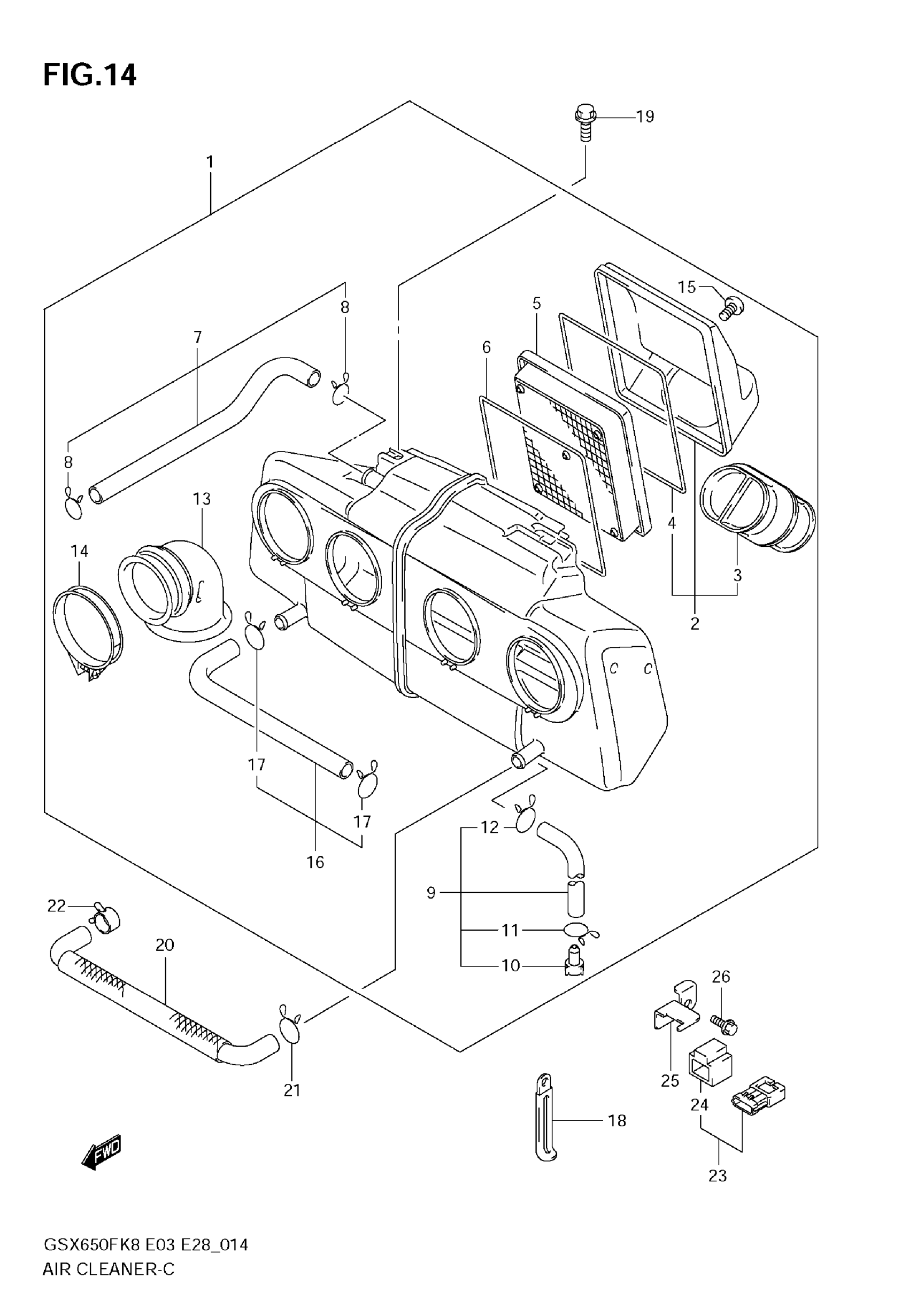

2009 Suzuki GSX650F AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY,AI | Includes Item(s) 2 - 17 This part replaces 13700-17H00.

13700-17H04

1
Out of stock

2

CAP, AIR CLEANER

13740-17H00

1
Out of stock

3

TUBE, INLET

13891-17H00

1
Out of stock

4

GASKET, AIR CLEANER CAP

13746-18H00

1
Out of stock

5

FILTER, AIR

13780-18H00

1
Out of stock

6

GASKET, CASE

13746-18H00

1
Out of stock

7

TUBE, BREATHER

13850-18H00

1
Out of stock

8

CLIP

09401-15101

2
Out of stock

9

TUBE, DRAIN

13870-18H00

1
Out of stock

10

STOPPER

13877-00190

1
Out of stock

11

CLIP

09401-15101

1
Out of stock

12

CLIP

09401-13409

1
Out of stock

13

TUBE, OUTLET

13881-17H00

4
Out of stock

14

CLAMP

09402-54208

4
Out of stock

15

SCREW

02142-0512A

4
Out of stock

16

TUBE

13910-18H00

1
Out of stock

17

CLIP

09401-15101

2
Out of stock

18

CLAMP

09404-10417

1
Out of stock

19

SCREW, AIR CLEANER

01550-0612B

2
Out of stock

20

HOSE, ISC VALVE

13697-18H00

1
Out of stock

21

CLIP

09401-15101

1
Out of stock

22

CLIP

09401-17401

1
Out of stock

23

SENSOR, BOOST | Includes Item(s) 24

15630-29G20

1
Out of stock

24

COVER

15625-29G10

1
Out of stock

25

BRACKET

13166-18H00

1
Out of stock

26

BOLT

01550-0612A

1
Out of stock
