1997 Suzuki GSX600FV Rider Handle Diagram

← All diagrams

Find the part on the Rider Handle diagram for your 1997 Suzuki GSX600FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

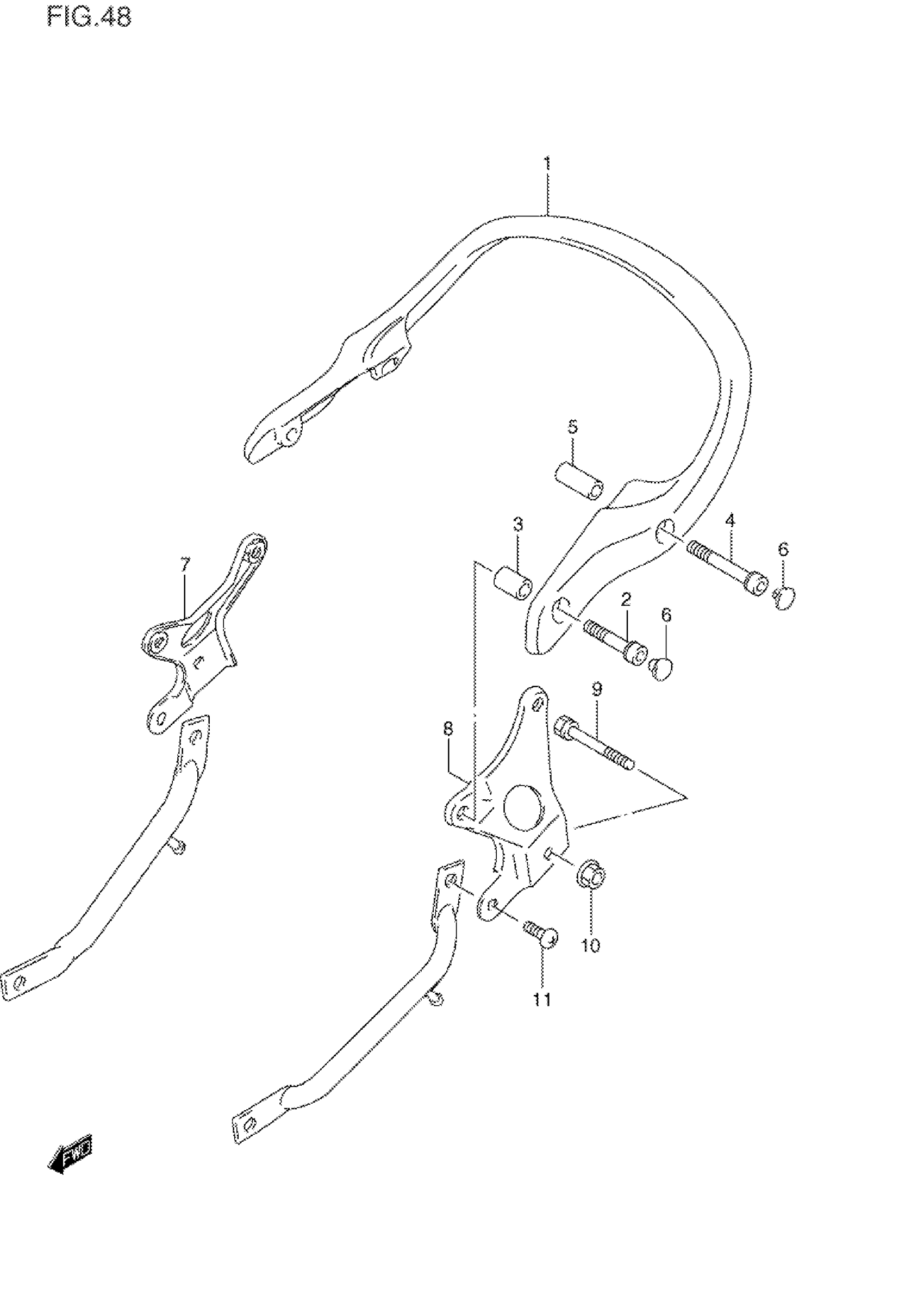

1997 Suzuki GSX600FV Rider Handle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE, PILLION RIDER (BLACK)

46211-19C00-019

1
Out of stock

2

BOLT This part replaces 07130-08353.

07130-0835B

2
Out of stock

3

SPACER, FRONT (8.5X14X21.50)

09180-08205

2
Out of stock

4

BOLT This part replaces 07130-08553.

07130-0855B

2
Out of stock

5

SPACER, REAR (8.5X14X28)

09180-08206

2
Out of stock

6

CAP

09250-06004

4

$1.55

In stock

7

BRACKET, PILLION HANDLE RH

46220-19C01

1
Out of stock

8

BRACKET, PILLION HANDLE LH

46230-19C01

1
Out of stock

9

.BOLT This part replaces 01550-08553.

01550-0855A

2
Out of stock

10

NUT This part replaces 08316-20083.

08316-2008A

2
Out of stock

11

SCREW This part replaces 02142-06203.

02142-0620A

2
Out of stock
