1997 Suzuki GSX600FV Installation Parts Diagram

← All diagrams

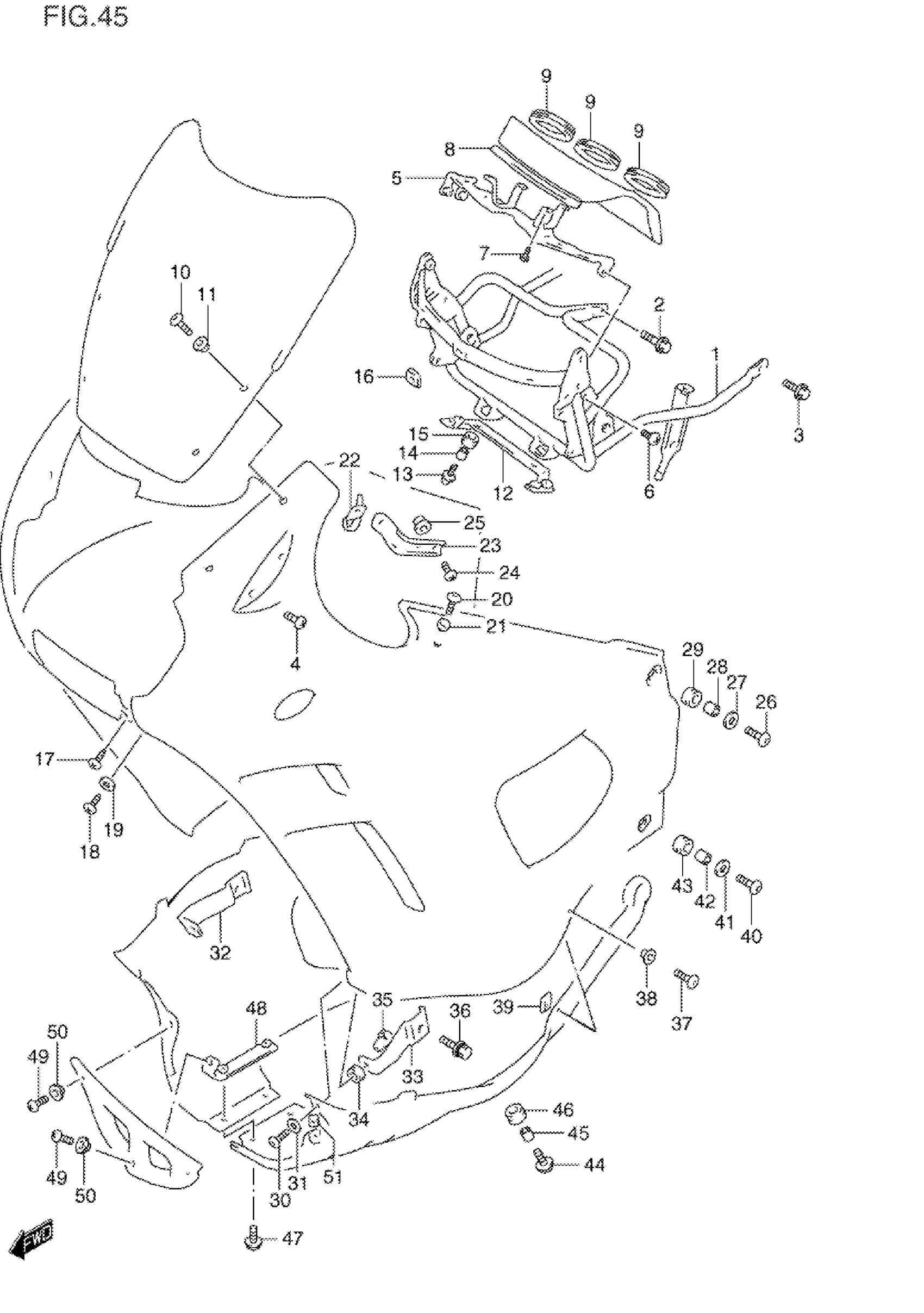

Find the part on the Installation Parts diagram for your 1997 Suzuki GSX600FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1997 Suzuki GSX600FV Installation Parts Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACE, COWLING

94510-20C20

1
Out of stock

1

BRACE, COWLING | E33

94510-20C30

1
Out of stock

2

BOLT (8X20)

09103-08266

1
Out of stock

3

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

2
Out of stock

4

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

5

PLATE, METER

94520-19C00

1
Out of stock

6

SCREW This part replaces 02142-06123.

02142-0612A

4
Out of stock

7

SCREW This part replaces 03541-05083.

03541-0508A

4
Out of stock

8

MOLDING, METER

94527-19C00

1
Out of stock

9

CUSHION, SPEEDOMETER

94426-19C00

3
Out of stock

10

SCREW, SCREEN This part replaces 09139-05022.

09139-05042

4
Out of stock

11

CUSHION This part replaces 09161-05002.

09320-06502

4
Out of stock

12

PLATE, CENTER

94460-19C00

1
Out of stock

13

SCREW (6X20)

09136-06081

2
Out of stock

14

SPACER This part replaces 09180-06317.

09180-06286

2
Out of stock

15

CUSHION

09320-10015

2
Out of stock

16

CUSHION This part replaces 94638-19C00.

63191-25C00

1
Out of stock

17

.SCREW This part replaces 02142-05123.

02142-0512A

2
Out of stock

18

SCREW, FRONT (6X25)

09139-06029

2
Out of stock

19

WASHER This part replaces 09160-06006.

09160-06084

2
Out of stock

20

SCREW, UPPER (6X16)

09139-06030

2
Out of stock

21

WASHER

09161-06021

2
Out of stock

22

BRACKET, UPPER RH

94560-19C00

1
Out of stock

23

BRACKET, UPPER LH

94570-19C00

1
Out of stock

24

SCREW This part replaces 02142-06253.

02142-0625A

4
Out of stock

25

NUT

94573-19C00

4
Out of stock

26

SCREW (6X25)

09139-06029

4
Out of stock

27

WASHER This part replaces 09160-06006.

09160-06084

4
Out of stock

28

SPACER

09180-06263

4
Out of stock

29

CUSHION

09320-09016

4
Out of stock

30

SCREW, FRONT (6X30)

09139-06042

2
Out of stock

31

WASHER This part replaces 09160-06006.

09160-06084

2
Out of stock

32

BRACKET, UNDER,RH

94531-19C00

1
Out of stock

33

BRACKET, UNDER,LH

94532-19C00

1
Out of stock

34

CUSHION

09320-10015

2
Out of stock

35

NUT

94590-19C00

2
Out of stock

36

BOLT This part replaces 01580-06163.

01580-0616A

2
Out of stock

37

SCREW(5X14)

09139-05025

2
Out of stock

38

WASHER

09161-05017

2
Out of stock

39

2

$3.95

In stock

40

SCREW, REAR (6X25)

09139-06029

2
Out of stock

41

WASHER This part replaces 09160-06006.

09160-06084

2
Out of stock

42

SPACER

09180-06097

2
Out of stock

43

CUSHION

09320-09016

2
Out of stock

44

SCREW, LOWER (6X20)

09136-06081

2
Out of stock

45

SPACER

09180-06263

2
Out of stock

46

CUSHION, LOWER

09320-09016

2
Out of stock

47

SCREW This part replaces 02142-05163.

02142-0516A

2
Out of stock

48

BRACKET, LOWER

94580-19C00

1
Out of stock

49

SCREW This part replaces 02142-05163.

02142-0516A

3
Out of stock

50

WASHER

09161-05017

3
Out of stock

51

2

$3.95

In stock
