1997 Suzuki GSX600FV Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1997 Suzuki GSX600FV, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

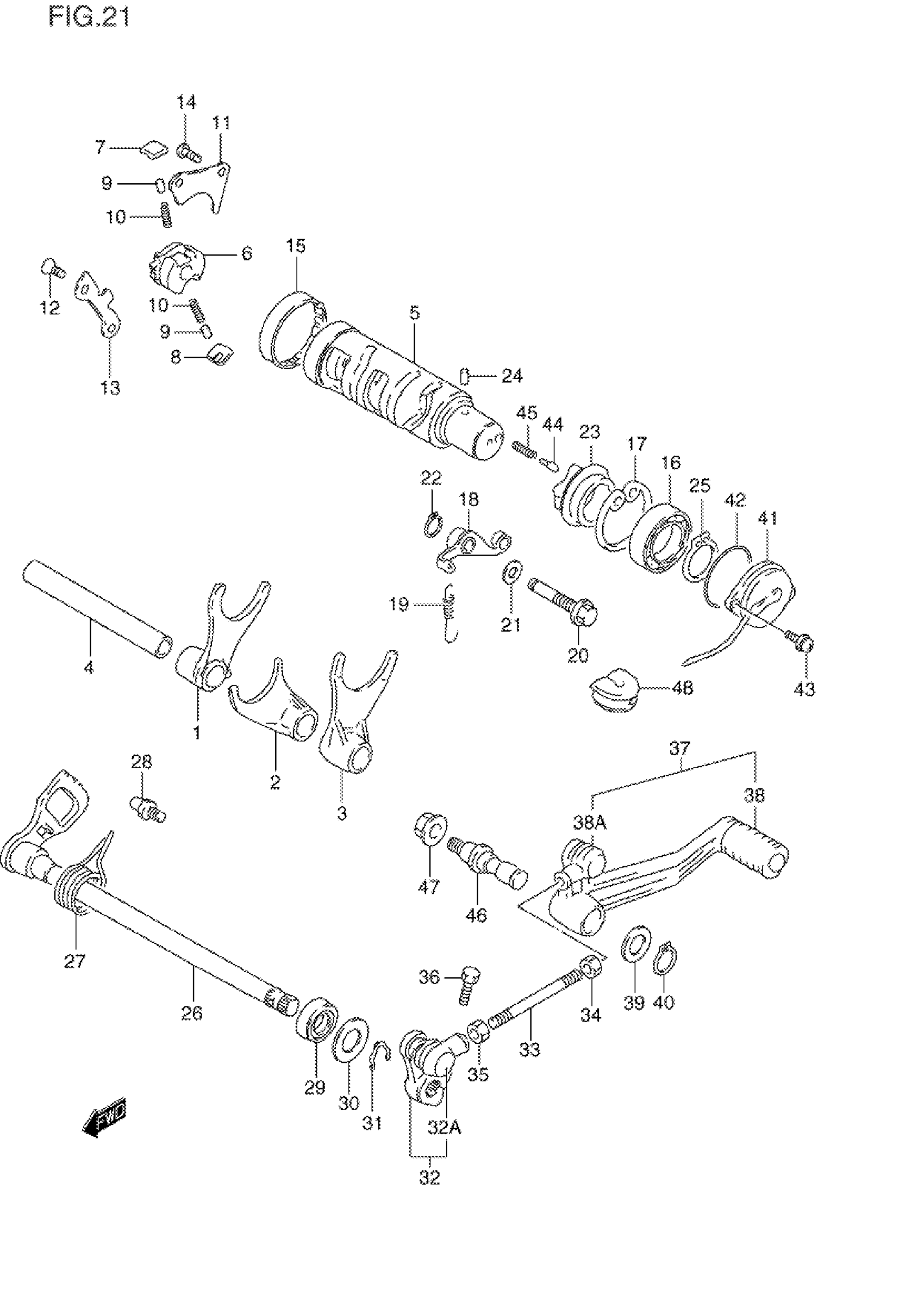

1997 Suzuki GSX600FV Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, GEAR SHIFT NO.1 This part replaces 25211-27A00.

25211-27A12

1
Out of stock

2

FORK, GEAR SHIFTING NO.2

25221-27A01

1
Out of stock

3

FORK, GEAR SHIFTING NO.3

25231-27A00

1
Out of stock

4

SHAFT, GEAR SHIFTING FORK

25411-27A00

1
Out of stock

5

CAM, GEAR SHIFT This part replaces 25310-27A02.

25310-27A03

1
Out of stock

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-31302.

25322-31310

1
Out of stock

7

PAWL, GEAR SHIFT NO.1

25323-34201

1
Out of stock

8

PAWL, GEAR SHIFT NO.2

25324-34201

1
Out of stock

9

PIN

09261-05003

2
Out of stock

10

SPRING

09440-04003

2
Out of stock

11

LIFTER,GEAR SHI This part replaces 25331-31301.

25331-31310

1
Out of stock

12

SCREW This part replaces 02122-06123.

02122-0612A

2
Out of stock

13

GUIDE, CAM

25341-27A00

1
Out of stock

14

SCREW This part replaces 02122-06123.

02122-0612A

2
Out of stock

15

BEARING, RH

09263-43001

1
Out of stock

16

BEARING

08113-69050

1
Out of stock

17

CIRCLIP This part replaces 08331-41426.

08331-41429

1
Out of stock

18

STOPPER, CAM

25350-27A00

1
Out of stock

19

SPRING

09443-09031

1
Out of stock

20

SHAFT, STOPPER

25353-27A00

1
Out of stock

21

GASKET

09168-10002

1
Out of stock

22

CIRCLIP This part replaces 08331-31086.

08331-31089

1
Out of stock

23

PLATE, STOPPER

25381-38400

1
Out of stock

24

PIN

04221-04069

1
Out of stock

25

CIRCLIP

08331-31256

1
Out of stock

26

SHAFT, GEAR SHIFTING

25510-19C01

1
Out of stock

27

SPRING

09444-26017

1
Out of stock

28

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

30

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

1
Out of stock

31

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

32

ARM,GEAR SHIFT | Includes Item(s) 32A This part replaces 25520-19C02.

25520-19C03

1
Out of stock

32A

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

33

ROD, GEAR SHIFT LINK

25525-27A30

1
Out of stock

34

NUT

09140-06011

1
Out of stock

35

.NUT

08310-00067

1
Out of stock

36

BOLT

01500-06257

1
Out of stock

37

LEVER ASSY,GEAR | Includes Item(s) 38 - 38A This part replaces 25600-19C04.

25600-19C05

1
Out of stock

38

RUBBER

25652-20C00

1
Out of stock

38A

.COVER, DUST This part replaces 25526-47000.

25526-47001

1
Out of stock

39

WASHER (12.5X20X1)

09160-12011

1
Out of stock

40

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

41

BODY, GEAR SHIFTING SWITCH

37720-48B00

1
Out of stock

42

O RING (D:2.4,ID:35.5)

09280-35006

1
Out of stock

43

SCREW This part replaces 02112-75163.

02112-7516A

2
Out of stock

44

CONTACT

09209-05011

1
Out of stock

45

SPRING

09440-04010

1
Out of stock

46

SHAFT, LEVER

25617-20A00

1
Out of stock

47

NUT This part replaces 08316-10103.

08316-1010B

1
Out of stock

48

GROMMET

33885-27A01

1
Out of stock
