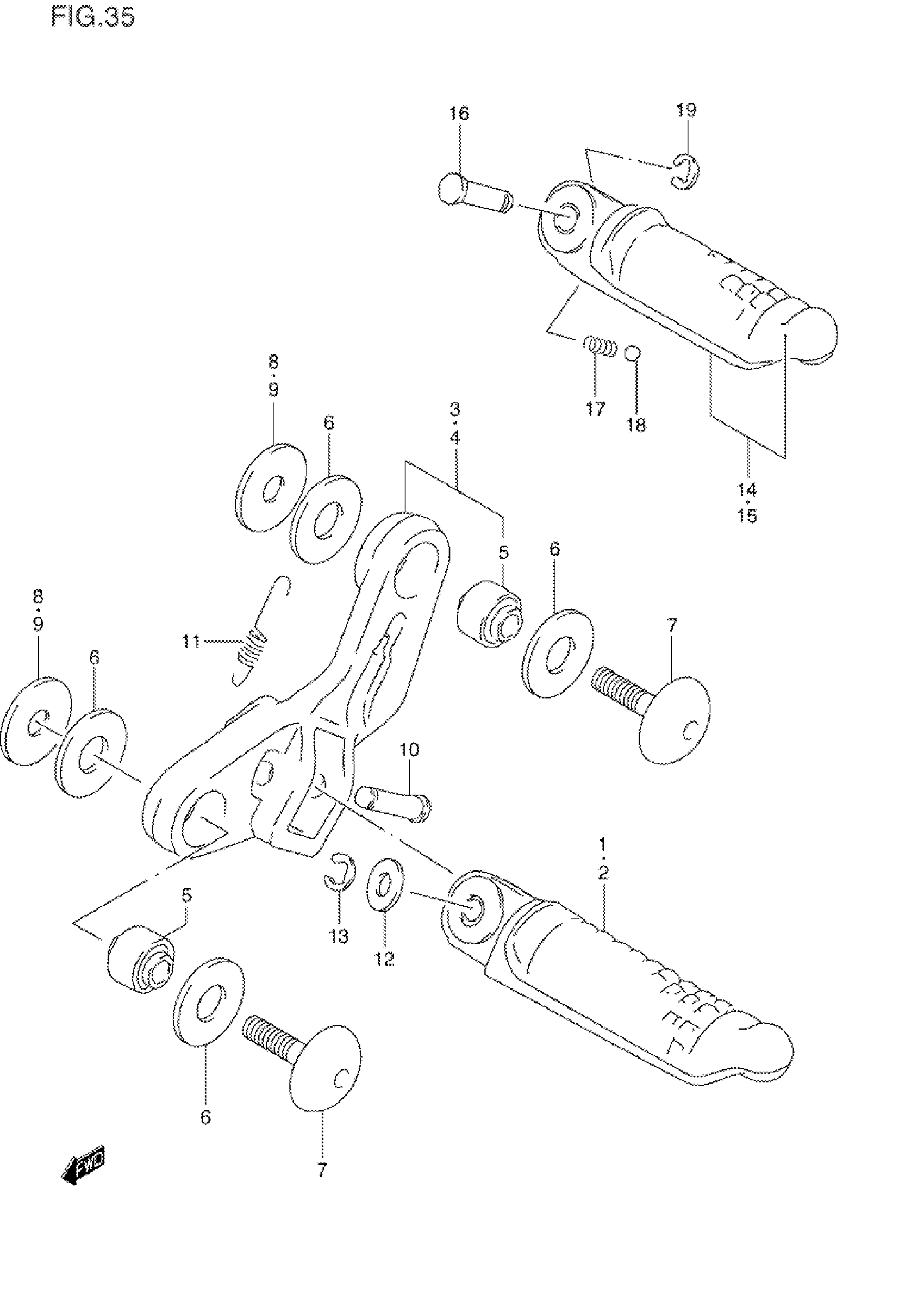

Suzuki GSX600FV (1997) FOOTREST Diagram

#

Description
Price

1

BAR, FR FOOTRES This part replaces 43510-19C01.

43510-19C02

Unavailable

2

BAR,FR FOOTREST This part replaces 43520-19C01.

43520-19C02

Unavailable

3

HOLDER, FRONT FOOTREST RH

43531-19C00

Unavailable

4

HOLDER, FRONT FOOTREST LH

43541-19C00

Unavailable

5

BUSH, HOLDER

09319-08033

$12.92

6

WASHER, HOLDER

09161-12006

Unavailable

7

BOLT

09106-08137

$5.42

8

WASHER, MUFFLER SUPPORT This part replaces 09160-08110.

09160-08503

$2.53

9

WASHER

09160-08503

$2.53

10

PIN

09208-08010

$2.80

11

SPRING

09443-08049

$4.62

12

WASHER This part replaces 08322-01083.

08322-0108A

$2.18

13

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43

14

BAR, PILLION FOOTREST RH This part replaces 43610-20C00.

43610-20C01

$83.08

15

BAR, PILLION FOOTREST LH This part replaces 43710-20C00.

43710-20C01

$83.08

16

PIN

09208-08011

$2.80

17

SPRING

09440-05005

$1.45

18

BALL

06111-07004

$1.22

19

CIRCLIP This part replaces 08332-11063.

08332-1106A

$1.43
