2006 Suzuki GSX600F Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 2006 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

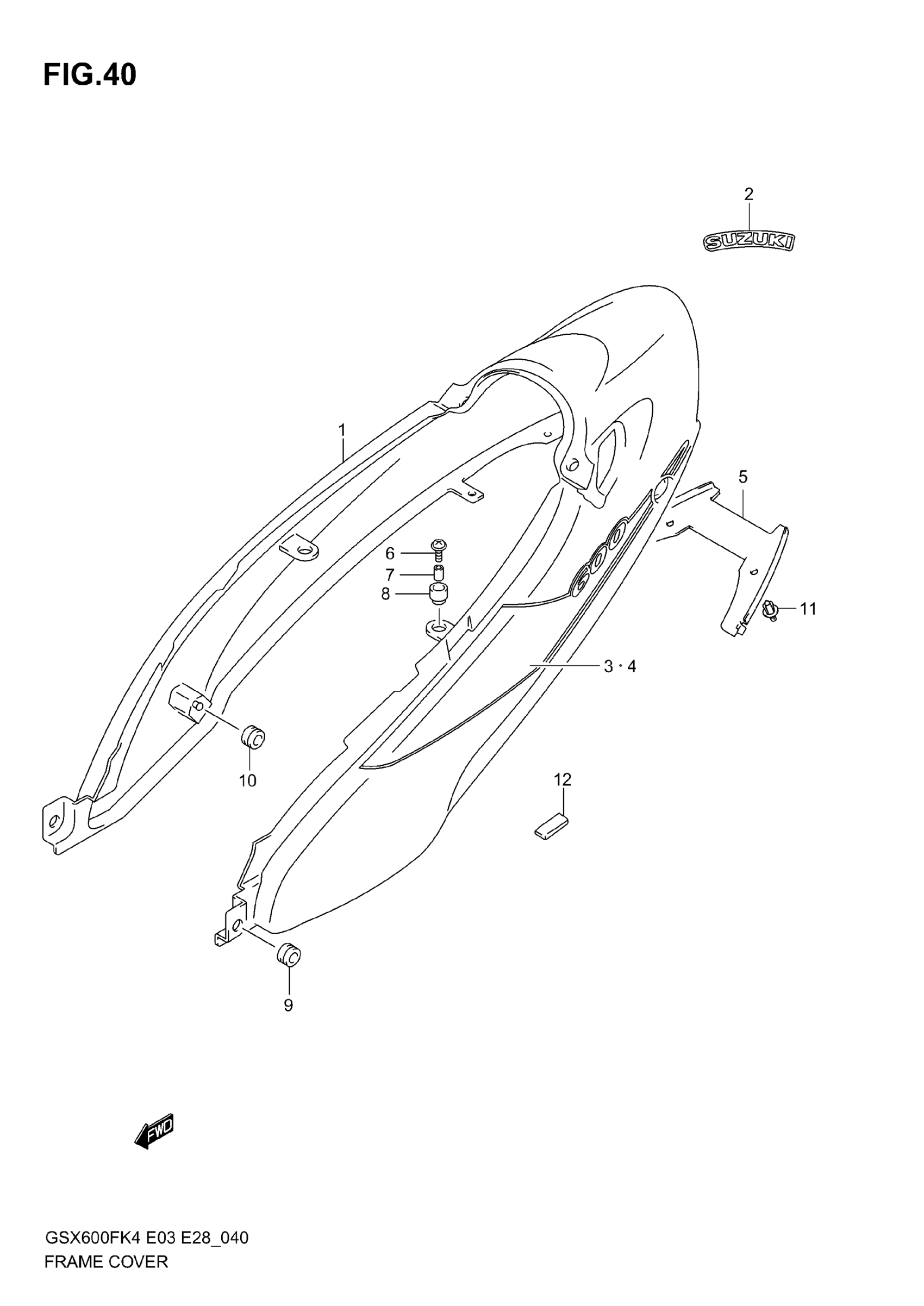

2006 Suzuki GSX600F Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME (BLACK) | FOR YU9

47110-08F90-019

1
Out of stock

1

COVER, FRAME (WHITE) | FOR YC2; Includes Item(s) 2 - 4

47110-08F90-YBD

1
Out of stock

2

EMBLEM,FRAME CO | FOR 019 This part replaces 68131-39F00-YD8.

68131-39F01-YD8

1
Out of stock

2

EMBLEM (BLACK) | FOR YBD

68131-39F00-019

1
Out of stock

3

TAPE, FRAME COVER RH | FOR 019

68135-08F20-LN5

1
Out of stock

3

TAPE, FRAME COVER RH | FOR YBD

68135-08F20-ARG

1
Out of stock

4

TAPE, FRAME COVER LH | FOR 019

68145-08F20-LN5

1
Out of stock

4

TAPE, FRAME COVER LH | FOR YBD

68145-08F20-ARG

1
Out of stock

5

COVER, FRAME LOWER

47321-08FA0

1
Out of stock

6

SCREW, UPPER

09136-06105

2
Out of stock

7

SPACER

09180-06286

2
Out of stock

8

CUSHION

09320-10045

2

$3.63

In stock

9

CUSHION, FRONT

09320-08028

2
Out of stock

10

CUSHION, CENTER

09320-08018

2
Out of stock

11

CLIP (BLACK)

09409-08308-5ES

4
Out of stock

12

CUSHION (10X30X2)

44894-24A00

2
Out of stock
