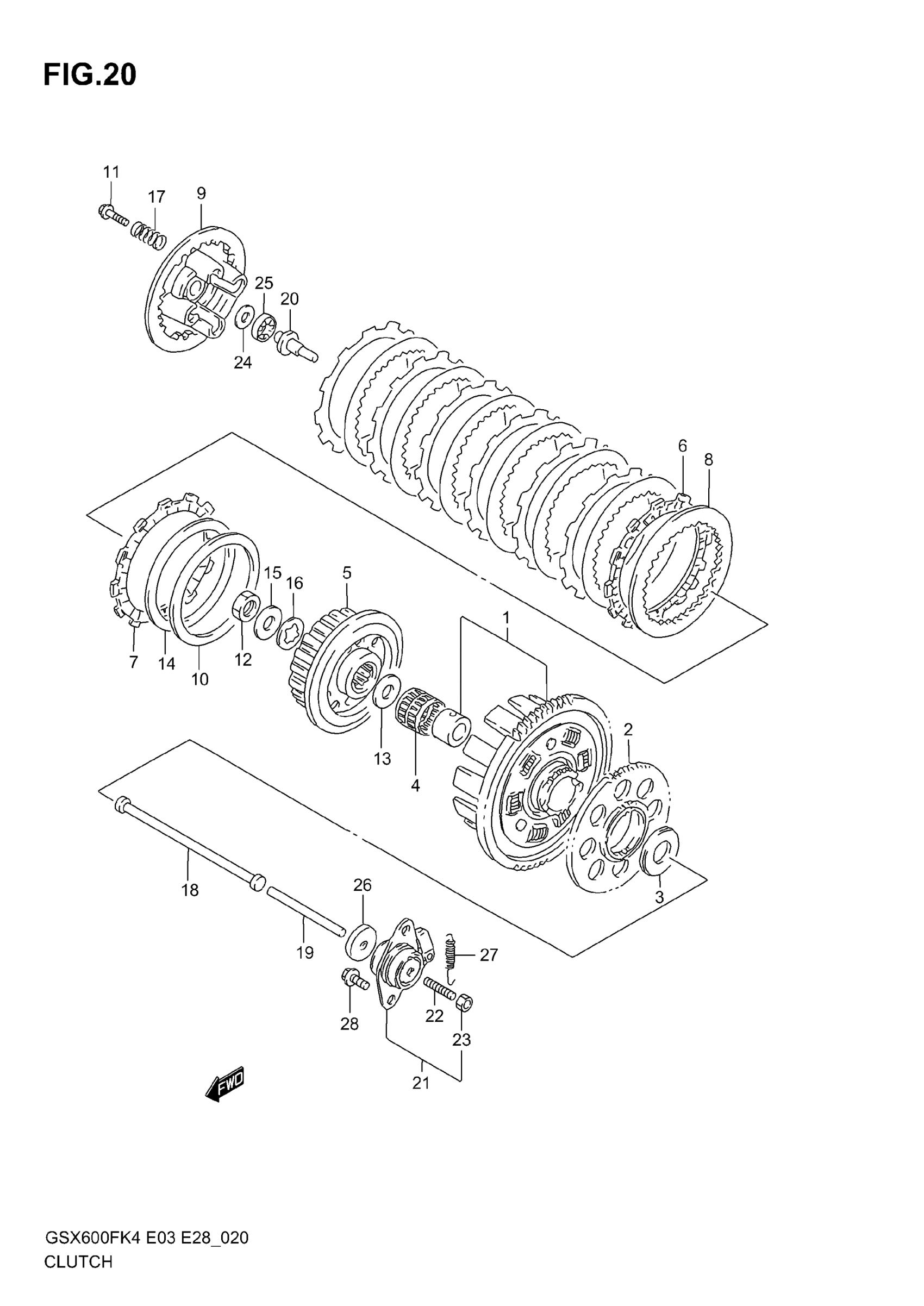

Suzuki GSX600F (2006) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:75)

21200-26833

$496.12

2

GEAR, GENERATOR (NT:34/64)

22721-17D02

Unavailable

3

WASHER (25.1X54X2.5)

09160-25037

$9.62

4

BEARING (35X40X35.8)

09263-35017

$38.42

5

HUB, CLUTCH SLEEVE

21410-27A02

$156.88

6

PLATE, CLUTCH DRIVE NO.1

21441-37430

$22.14

7

PLATE, CLUTCH DRIVE NO.2

21442-37401

$17.86

8

PLATE, CLUTCH DRIVEN

21451-05A00

$9.68

9

DISK, CLUTCH PRESSURE

21462-27A00

$65.10

10

SEAT, CLUTCH PLATE WAVE

21471-37400

$9.36

11

BOLT (6X30)

09116-06203

$2.98

12

NUT, CLUTCH SLEEVE HUB

09140-22008

$7.98

13

.WASHER (25X50X2.5)

09160-25056

$10.94

14

WASHER

09164-00004

$10.70

15

WASHER (22.2X35X2)

09164-22007

$7.98

16

WASHER (22X36X1.0)

09181-22251

$4.12

17

SPRING, CLUTCH

21413-38G00

$9.35

18

ROD, CLUTCH PUSH, RH

23110-20C00

$27.55

19

ROD,CLUTCH PUSH,L

23111-15501

$12.73

20

PIECE, CLUTCH PUSH

23121-27A00

Unavailable

21

SCREW ASSY, CLUTCH RELEASE | Includes Item(s) 22 - 23

23200-31300

Unavailable

22

SCREW (6X25)

09134-06010

$2.90

23

.NUT

08310-00067

$1.91

24

WASHER (15.5X28X1)

09160-15045

$3.62

25

BEARING, CLUTCH (15X28X2)

09263-15003

$7.70

26

SEAL, CLUTCH (6X34X5.5)

09285-06015

$7.42

27

SPRING, CLUTCH RETURN

09443-07038

$2.80

28

BOLT This part replaces 01550-06163.

01550-0616A

$2.01
