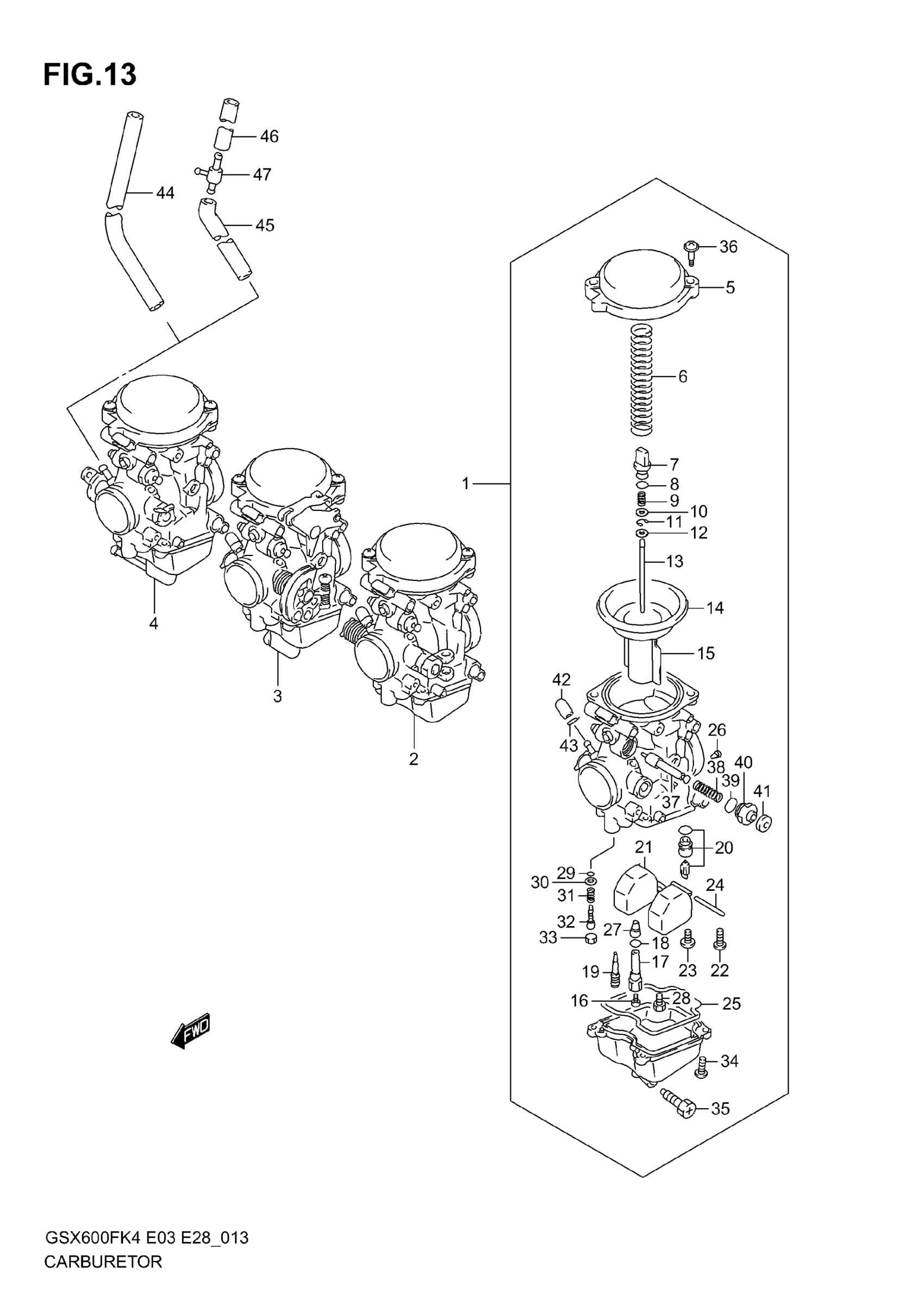

Suzuki GSX600F (2006) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | E3,E28

13201-19E31

Unavailable

1

CARBURETOR ASSY, LH | E33

13201-19E41

Unavailable

2

CARBURETOR ASSY, ML | E3,E28

13202-19E31

Unavailable

2

CARBURETOR ASSY, ML | E33

13202-19E41

Unavailable

3

CARBURETOR ASSY, MR | E3,E28

13203-19E31

Unavailable

3

CARBURETOR ASSY, MR | E33

13203-19E41

Unavailable

4

CARBURETOR ASSY, RH | E3,E28

13204-19E31

Unavailable

4

CARBURETOR ASSY, RH | E33; Includes Item(s) 5 - 47

13204-19E41

Unavailable

5

DIAPHRAGM COVER

13502-19E00

$31.86

6

SPRING

13573-19E00

$9.53

7

HOLDER

13418-33E00

$5.43

8

O RING

09280-05004

$2.17

9

SPRING

13481-04F00

$3.41

10

WASHER

13382-19E00

$3.51

11

E RING, MULTIPLE JET NOZZLE

13394-17E60

$1.89

12

RING

13387-44030

$5.74

13

NEEDLE, JET (5DH30-54)

13383-19E30

Unavailable

14

DIAPHRAGM This part replaces 13507-19E00.

13507-19E01

$27.16

15

VALVE, PISTON

13501-19E30

$99.47

16

JET, NEEDLE (P-0M)

09494-00921

$39.89

17

HOLDER, JET

13385-19E00

$40.02

18

.O RING This part replaces 13246-43010.

13246-43011

$4.15

19

JET, MAIN (115) | LH,RH

09491-23012

$9.18

19

JET, MAIN (112.5) | ML,MR

09491-22014

$18.87

20

VALVE ASSY,NEED This part replaces 13370-07F00.

13370-07F01

$75.63

21

FLOAT ASSY

13250-04F00

$33.23

22

SCREW This part replaces 02112-04083.

02112-0408A

$1.13

23

SCREW

13602-05A10

$3.41

24

.PIN, FLOAT

13254-01010

$3.56

25

GASKET

13258-04F00

$9.47

26

JET, PILOT AIR (160) | E3,E28

09493-32007

$18.33

26

JET, PILOT AIR (150) | E33

09492-30013

Unavailable

27

JET, PILOT (12.5)

09492-12008

$13.52

28

JET, STARTER (50)

09491-50006

$11.97

29

O-RING This part replaces 13295-29900.

13295-29901

$4.15

30

WASHER

13291-29900

$1.87

31

SPRING,THROTTLE SCREW

13268-48700

$4.15

32

ADJUSTER (2,5/8) | E3,E28

13279-33E00

$14.10

32

ADJUSTER (2,1/2) | E33

13279-33E00

$14.10

33

PLUG

13281-05A00

$4.40

34

SCREW

02112-04107

$1.61

35

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.77

36

SCREW

13247-33E00

$2.81

37

PLUNGER

13411-05300

$23.77

38

SPRING

13417-26D00

$6.87

39

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.98

40

.HOLDER, GUIDE

13418-44080

$9.84

41

.CAP, STARTER VALVE

13682-31210

$4.18

42

CAP | LH,ML,MR

13274-84000

$3.66

43

CLIP | LH,ML,MR

09401-06101

$2.12

44

HOSE,5X10X600 | RH E3/E28 L:600!400 This part replaces 09355-50105-600.

44421-13ER0

$9.48

45

HOSE | E33 L:600!225

09352-50901-600

$7.63

46

.HOSE | E33 L:600!175 This part replaces 09352-50903-600.

09352-50006-600

$6.95

47

.NIPPLE | E33

13685-48B00

$11.96
