2003 Suzuki GSX600F Speedometer Diagram

← All diagrams

Find the part on the Speedometer diagram for your 2003 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

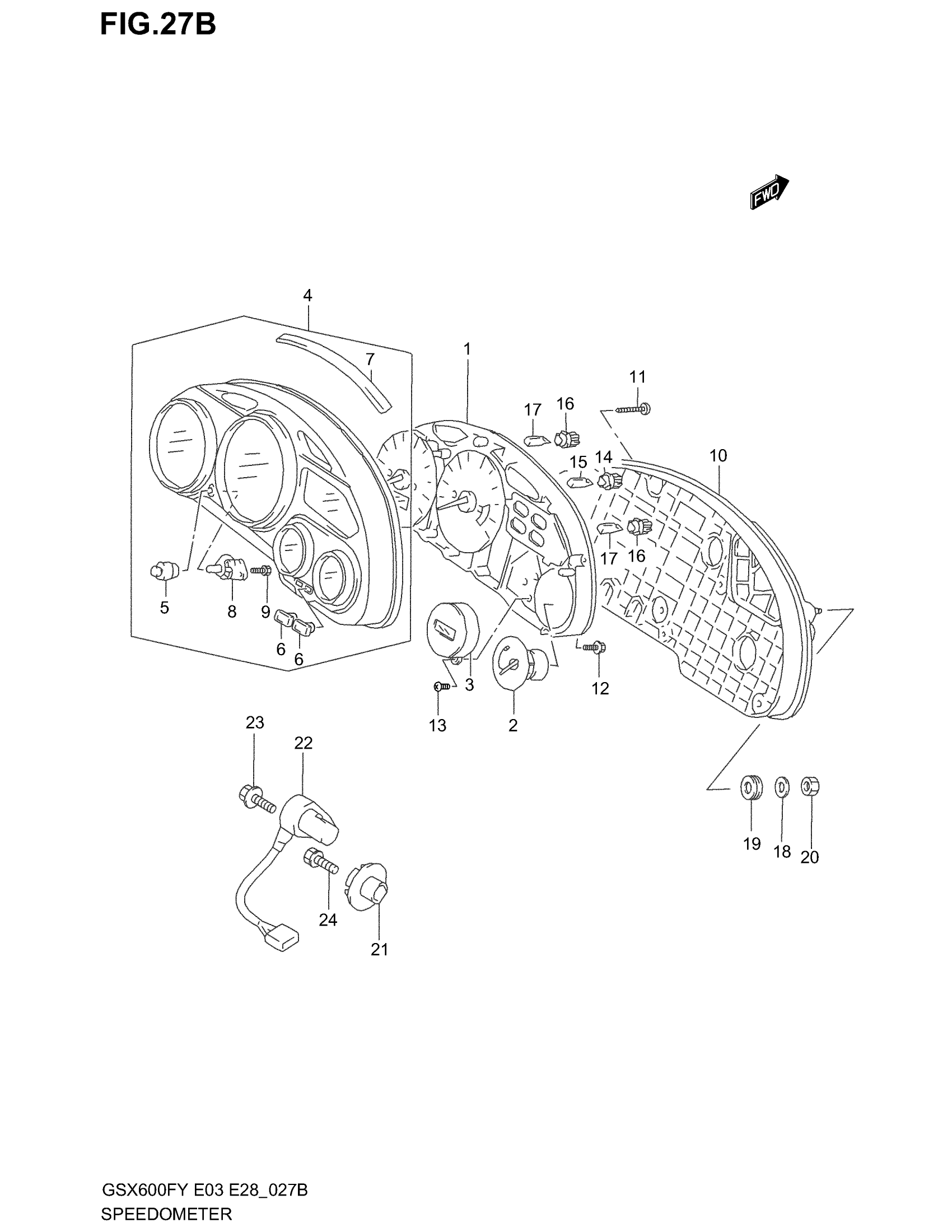

2003 Suzuki GSX600F Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER (MILE/KILO) | MODEL K1

34120-08F60

1
Out of stock

1

SPEEDOMETER (KILO) | MODEL K1 E28

34120-08F50

—
Out of stock

1

SPEEDOMETER (MILE/KILO) | MODEL K2/K3

34120-08FA0

1
Out of stock

1

SPEEDOMETER (KILO) | MODEL K2/K3 E28

34120-08F90

—
Out of stock

2

FUEL METER | MODEL K1

34320-08F50

1
Out of stock

2

FUEL METER | MODEL K2/K3

34320-08F90

1
Out of stock

3

CLOCK ASSY

34720-08F50

1
Out of stock

4

VISOR ASSY | Includes Item(s) 5 - 9

34150-08F50

1
Out of stock

5

SWITCH, GUM (TRIP)

34124-33E00

1
Out of stock

6

SWITCH, GUM (CLOCK)

34661-21EA0

2
Out of stock

7

PACKING

34153-21EA0

1
Out of stock

8

ATTACHMENT, SWITCH

34123-33E00

1
Out of stock

9

SCREW, PAN HEAD (3X10)

09132-03005

2
Out of stock

10

CASE ASSY

34130-21EA1

1
Out of stock

11

.SCREW This part replaces 03541-04203.

03541-0420A

8
Out of stock

12

SCREW

02112-73207

3
Out of stock

13

SCREW This part replaces 03511-04163.

03511-0416A

6
Out of stock

14

SOCKET (T6.5)

34172-33E00

4
Out of stock

15

.BULB (12V1.7W)

09471-12108

4
Out of stock

16

SOCKET (T5)

34175-78900

5
Out of stock

17

BULB (12V,1.4W)

09471-12055

5
Out of stock

18

WASHER (6.5X22X1.6)

09160-06054

3
Out of stock

19

CUSHION

09320-08053

3
Out of stock

20

NUT This part replaces 08310-00063.

08310-0006A

3
Out of stock

21

ROTOR,SPEED This part replaces 34981-35F00.

34981-38G01

1
Out of stock

22

SENSOR, SPEED | MODEL K1 This part replaces 34990-33E10.

34990-35F00

1
Out of stock

22

SENSOR, SPEEDOMETER | MODEL K2/K3

34990-35F00

1
Out of stock

23

BOLT This part replaces 07120-05123.

07120-0512B

1
Out of stock

24

BOLT This part replaces 07130-08253.

07130-0825B

1
Out of stock
