2003 Suzuki GSX600F Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2003 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

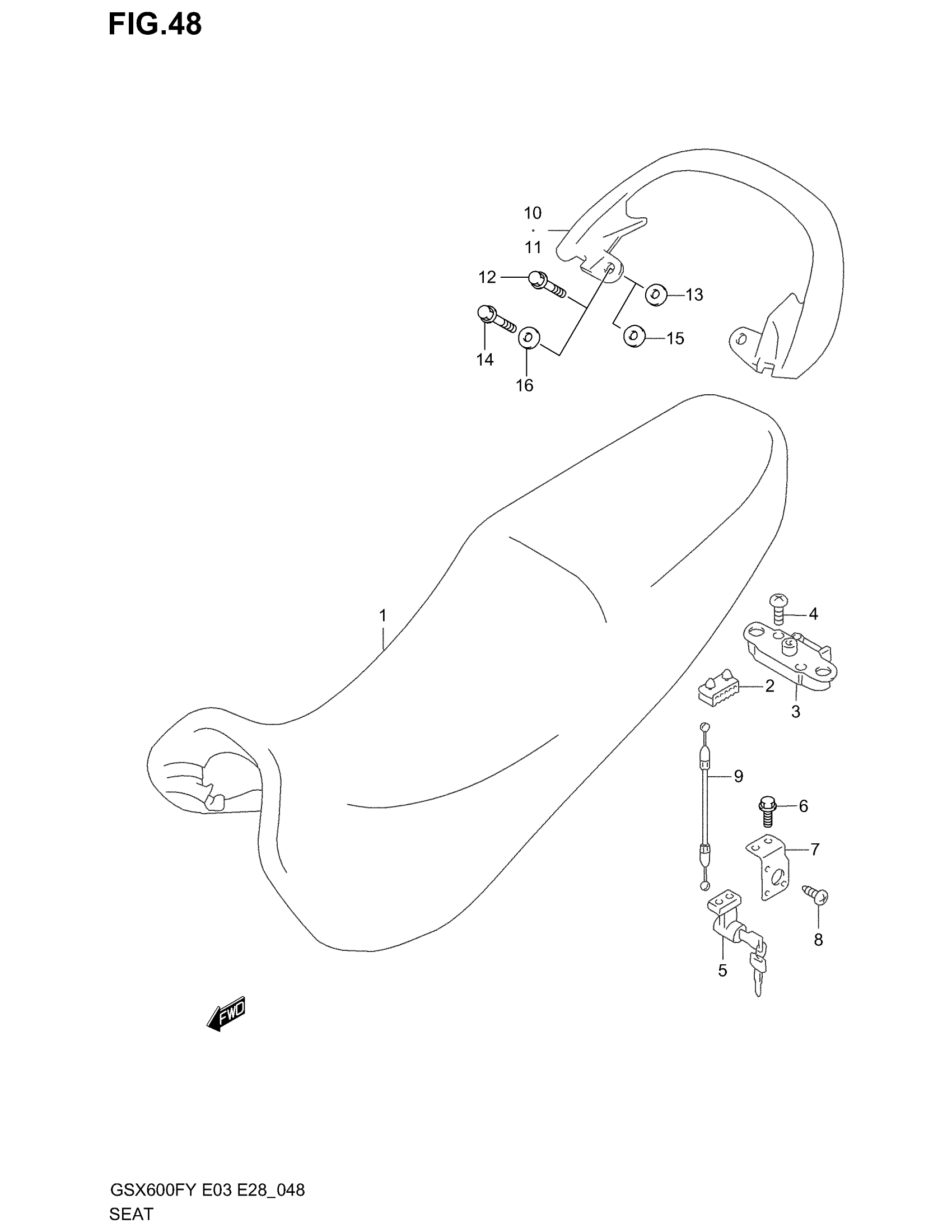

2003 Suzuki GSX600F Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 45100-08F00-V09.

45100-08F01-V09

1
Out of stock

2

CUSHION

45149-31300

4
Out of stock

3

BRACKET, SEAT SUPPORT This part replaces 45220-20A01.

45220-47H00

1
Out of stock

4

SCREW This part replaces 02122-06303.

02122-0630B

2
Out of stock

5

LOCK SET, SEAT This part replaces 95700-31840.

95700-31841

1
Out of stock

6

BOLT This part replaces 01547-05103.

01547-0510B

2
Out of stock

7

BRACKET, SEAT LOCK

45289-03F00

1
Out of stock

8

SCREW This part replaces 03141-14123.

03141-1412B

2
Out of stock

9

CABLE, SEAT LOCK

45280-25D00

1
Out of stock

10

HANDLE, PILLION RIDER (RED) | MODEL W This part replaces 46211-03F10-28V.

46211-03F11-28V

1
Out of stock

10

NO DESCRIPTION AVAILABLE | MODEL W This part replaces 46211-03F10-Y4E.

46211-03F11-Y4E

1
Out of stock

11

HANDLE, PILLION RIDER (RED) | MODEL X

46211-03F11-28V

1
Out of stock

11

HANDLE,PILLION | MODEL X This part replaces 46211-03F11-33J.

46211-03F11-13L

1
Out of stock

12

BOLT | MODEL W,%F.NO.W2103221 This part replaces 01810-08253.

01551-0825A

2
Out of stock

13

CUSHION | MODEL W,%F.NO.W2103221 This part replaces 09320-14006.

14761-03450

2
Out of stock

14

BOLT | MODEL W,F.NO.W2103222% This part replaces 01550-08303.

01550-0830A

2
Out of stock

14

BOLT | MODEL X This part replaces 01550-08303.

01550-0830A

2
Out of stock

15

CUSHION (17X24X1.5) | MODEL W,F.NO.W2103222%

46212-03F10

2
Out of stock

15

CUSHION (17X24X1.5) | MODEL X

46212-03F10

2
Out of stock

16

WASHER (8.5X24X2.30) | MODEL W,F.NO.W2103222%

09160-08501

2
Out of stock

16

WASHER (8.5X24X2.30) | MODEL X

09160-08501

2
Out of stock
