2003 Suzuki GSX600F Rear Swinging Arm Diagram

← All diagrams

Find the part on the Rear Swinging Arm diagram for your 2003 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

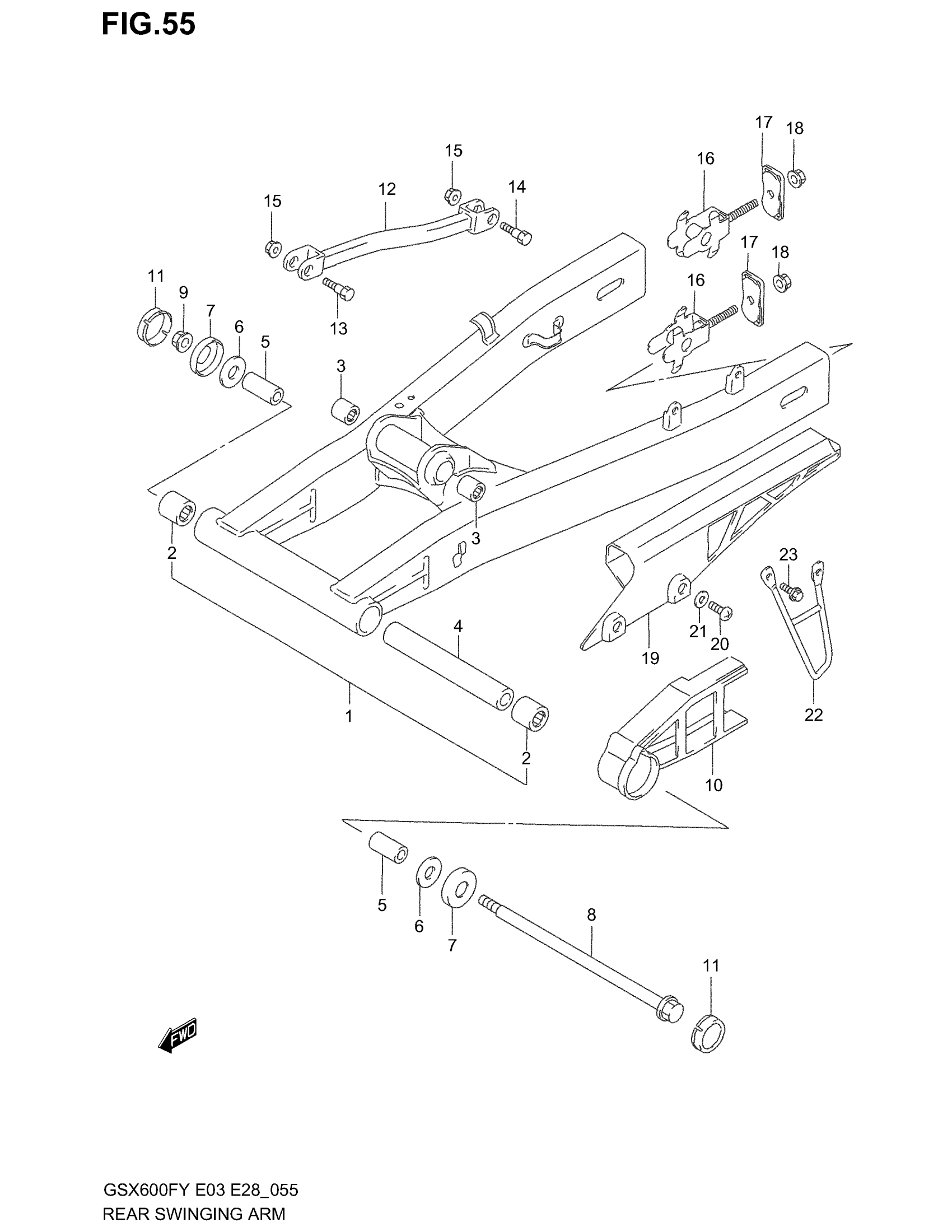

2003 Suzuki GSX600F Rear Swinging Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SWINGING ARM ASSY, REAR (SILVER) | MODEL W/X/Y/K1/K2 This part replaces 61000-08F00-13L.

61000-08F10-13L

1
Out of stock

1

SWINGING ARM ASSY, REAR (SILVER) | MODEL K3; Includes Item(s) 2 - 3

61000-08F10-13L

1
Out of stock

2

BEARING, PIVOT (22X29X30)

09263-22017

2
Out of stock

3

BEARING, ROD (20X27X23.5)

09263-20071

2
Out of stock

4

SPACER, PIVOT CENTER

61282-08F00

1
Out of stock

5

SPACER, PIVOT

61251-38B00

2
Out of stock

6

THRUST WASHER

08211-16341

2
Out of stock

7

COVER DUST SEAL This part replaces 61262-32410.

61262-32411

2
Out of stock

8

SHAFT, PIVOT

61211-08F00

1
Out of stock

9

NUT This part replaces 08319-31143.

08319-3114B

1
Out of stock

10

BUFFER,CHAIN TO This part replaces 61273-20C00.

61273-20C01

1
Out of stock

11

CAP, PIVOT

61222-43400

2
Out of stock

12

TORQUE LINK, REAR (BLACK)

64310-08F00

1
Out of stock

13

BOLT, FRONT (10X39)

09111-10051

1
Out of stock

14

BOLT, REAR (10X34)

09100-10187

1
Out of stock

15

NUT

08319-31107

2
Out of stock

16

ADJUSTER, CHAIN

61410-08F00

2
Out of stock

17

PLATE, ADJUSTER GUIDE

61420-08F00

2
Out of stock

18

NUT

08319-31087

2
Out of stock

19

CASE, CHAIN

61310-08F00

1
Out of stock

20

SCREW This part replaces 02142-06123.

02142-0612A

2
Out of stock

21

WASHER

09169-06026

2
Out of stock

22

GUARD, CHAIN

61390-08F00

1
Out of stock

23

BOLT This part replaces 01547-06123.

01547-0612B

2
Out of stock
