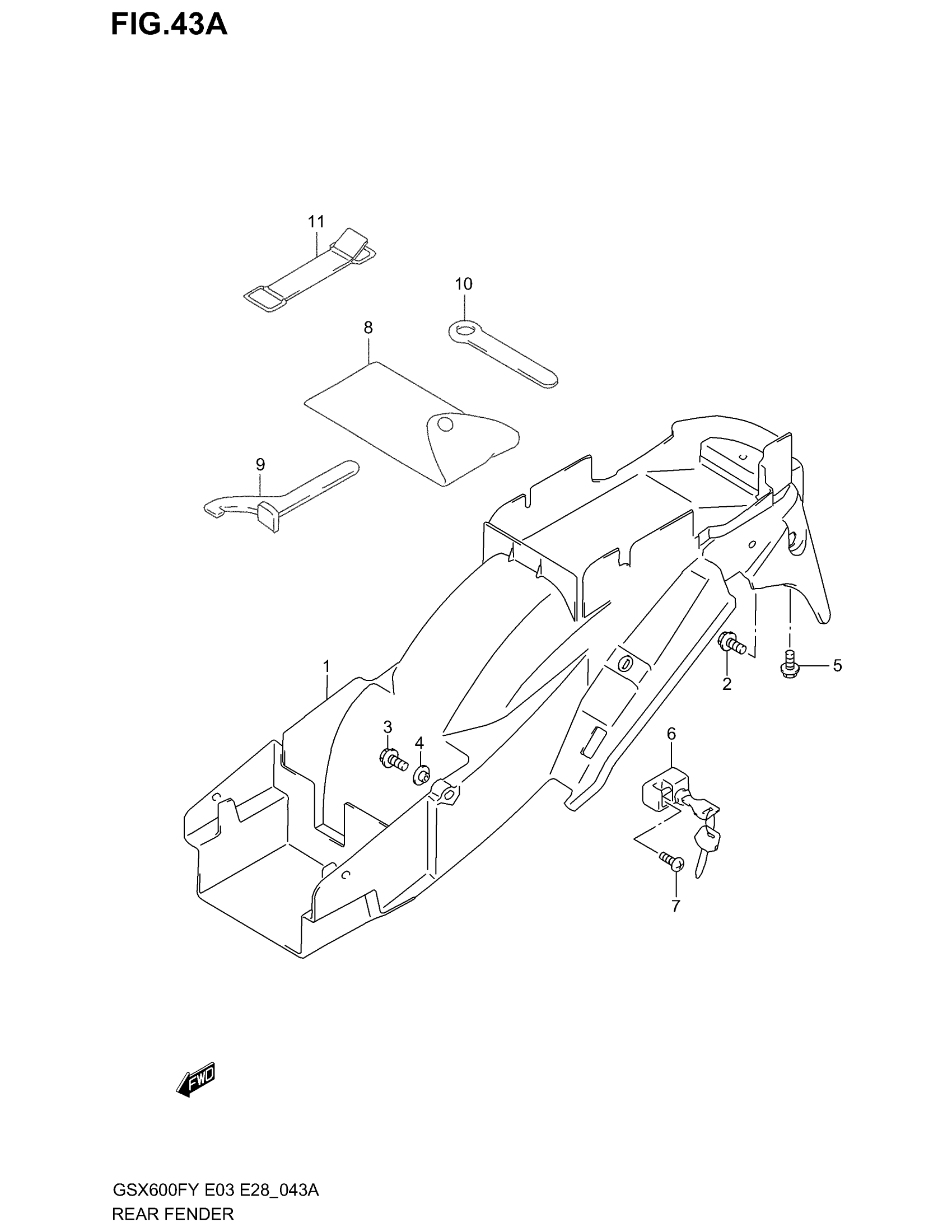

Suzuki GSX600F (2003) REAR FENDER (MODEL K3) Diagram

#

Description
Price

1

FENDER, REAR (BLACK)

63111-08FB0-291

Unavailable

2

BOLT

09113-06001

$2.80

3

BOLT This part replaces 01550-06163.

01550-0616A

$2.01

4

WASHER

09169-06071

$2.57

5

BOLT, CENTER

09116-06165

$3.30

6

LOCK SET HELMET This part replaces 95700-44820.

95700-41821

$171.60

7

SCREW

09139-06089

$3.30

8

TOOL ASSY

09800-21036

Unavailable

9

CLAMP, WRENCH

09822-00005

$14.36

10

HEXAGON SPANNER, 3

09816-00102

Unavailable

11

BAND,TOOL This part replaces 47435-02F01.

47435-02F02

$9.40
