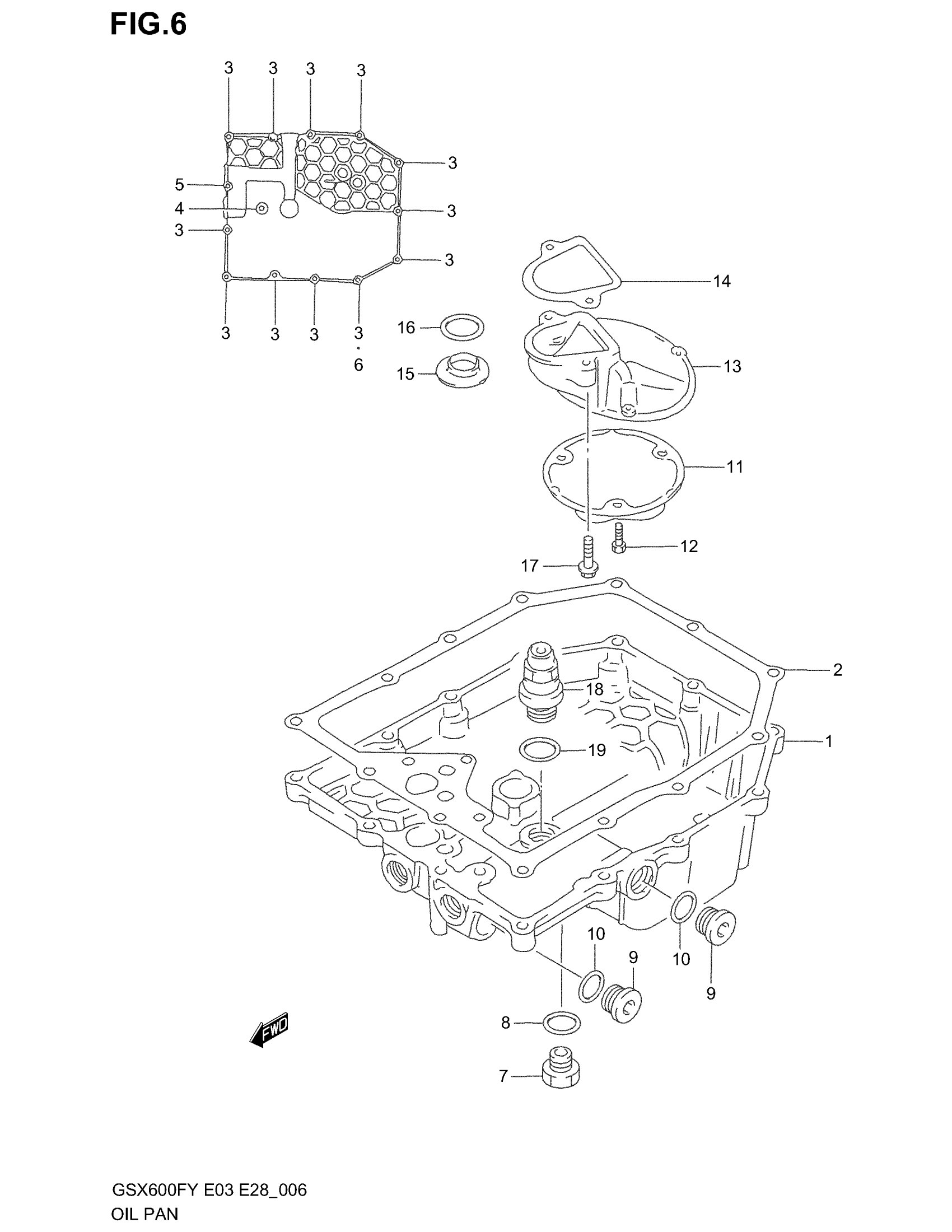

Suzuki GSX600F (2003) OIL PAN Diagram

#

Description
Price

1

PAN, OIL | MODEL W/X/Y/K1 This part replaces 11511-26E00.

11511-26E01

$416.15

1

PAN, OIL | MODEL K2/K3

11511-26E01

$416.15

2

GASKET, OIL PAN

11489-27A21

$14.94

3

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

4

BOLT This part replaces 01550-06303.

01550-0630A

$2.31

5

BOLT This part replaces 01550-06503.

01550-0650A

$3.10

6

GASKET (5.8X11X1.2) | %E.NO.111947

09168-06024

$2.19

6

GASKET (5.8X13X1.2) | E.NO.111948%

09168-06023

$2.01

7

PLUG (MAGNETO) | MODEL W/X/Y/K1 This part replaces 09247-14001.

09247-14002

$4.73

7

PLUG (MAGNETO) | MODEL K2/K3

09247-14002

$4.73

8

GASKET

09168-14002

$2.83

9

PLUG, OIL GALLERY

09248-16012

$4.19

10

GASKET

09168-16002

$1.89

11

STRAINER, ENGINE OIL

16520-09301

$17.40

12

BOLT This part replaces 01570-06123.

01570-0612A

$2.87

13

PROTECTOR, STRAINER

16525-06B00

$32.23

14

GASKET, OIL STR PROTECTOR This part replaces 16528-27A20.

16528-27A21

$6.18

15

GASKET, OIL OUTLET

16529-27A01

$2.15

16

O RING (D:3.2,ID:17.8)

09280-18009

$5.26

17

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

18

VALVE ASSY, OIL RELIEF This part replaces 16440-17C01.

16440-17C10

$75.95

19

WASHER

09168-16002

$1.89
