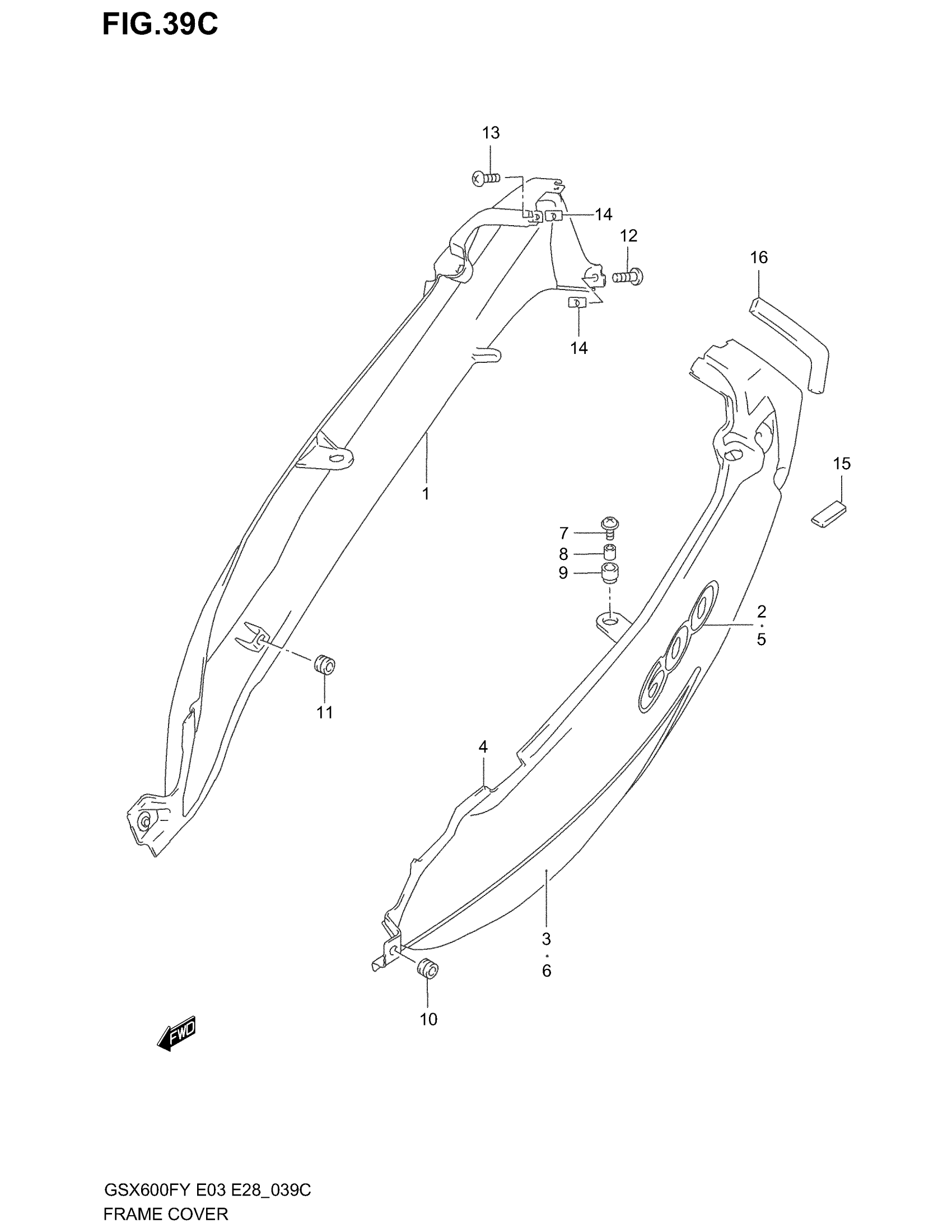

Suzuki GSX600F (2003) FRAME COVER (MODEL K2) Diagram

#

Description
Price

1

COVER, FRAME RH (YELLOW)

47110-08F60-Y9H

Unavailable

1

COVER, FRAME RH (BLUE) | Includes Item(s) 2 - 3

47110-08F60-YC2

Unavailable

2

EMBLEM, RH | FOR Y9H

68131-08F40-HS6

Unavailable

2

EMBLEM, RH | FOR YC2

68131-08F40-HS7

Unavailable

3

TAPE, RH | FOR Y9H

68135-08F10-HS2

Unavailable

3

TAPE, RH | FOR YC2

68135-08F10-HS3

Unavailable

4

COVER, FRAME LH (YELLOW)

47210-08F60-Y9H

Unavailable

4

COVER, FRAME LH (BLUE) | Includes Item(s) 5 - 6

47210-08F60-YC2

Unavailable

5

EMBLEM, LH | FOR Y9H

68131-08F40-HS6

Unavailable

5

EMBLEM, LH | FOR YC2

68131-08F40-HS7

Unavailable

6

TAPE, LH | FOR Y9H

68145-08F10-HS2

Unavailable

6

TAPE, LH | FOR YC2

68145-08F10-HS3

Unavailable

7

SCREW, UPPER

09136-06105

$2.06

8

SPACER

09180-06286

$2.61

9

CUSHION

09320-10045

$3.49

10

CUSHION, FRONT

09320-08028

$2.82

11

CUSHION, CENTER

09320-08018

$2.82

12

SCREW, COVER REAR This part replaces 03241-15163.

03241-1516A

$2.01

13

SCREW This part replaces 03241-15123.

03241-1512B

$2.46

14

NUT

09148-05038

$2.01

15

CUSHION (10X30X2)

44894-24A00

$1.86

16

CUSHION

47161-08F00

Unavailable
