1993 Suzuki GSX600F Wiring Harness Diagram

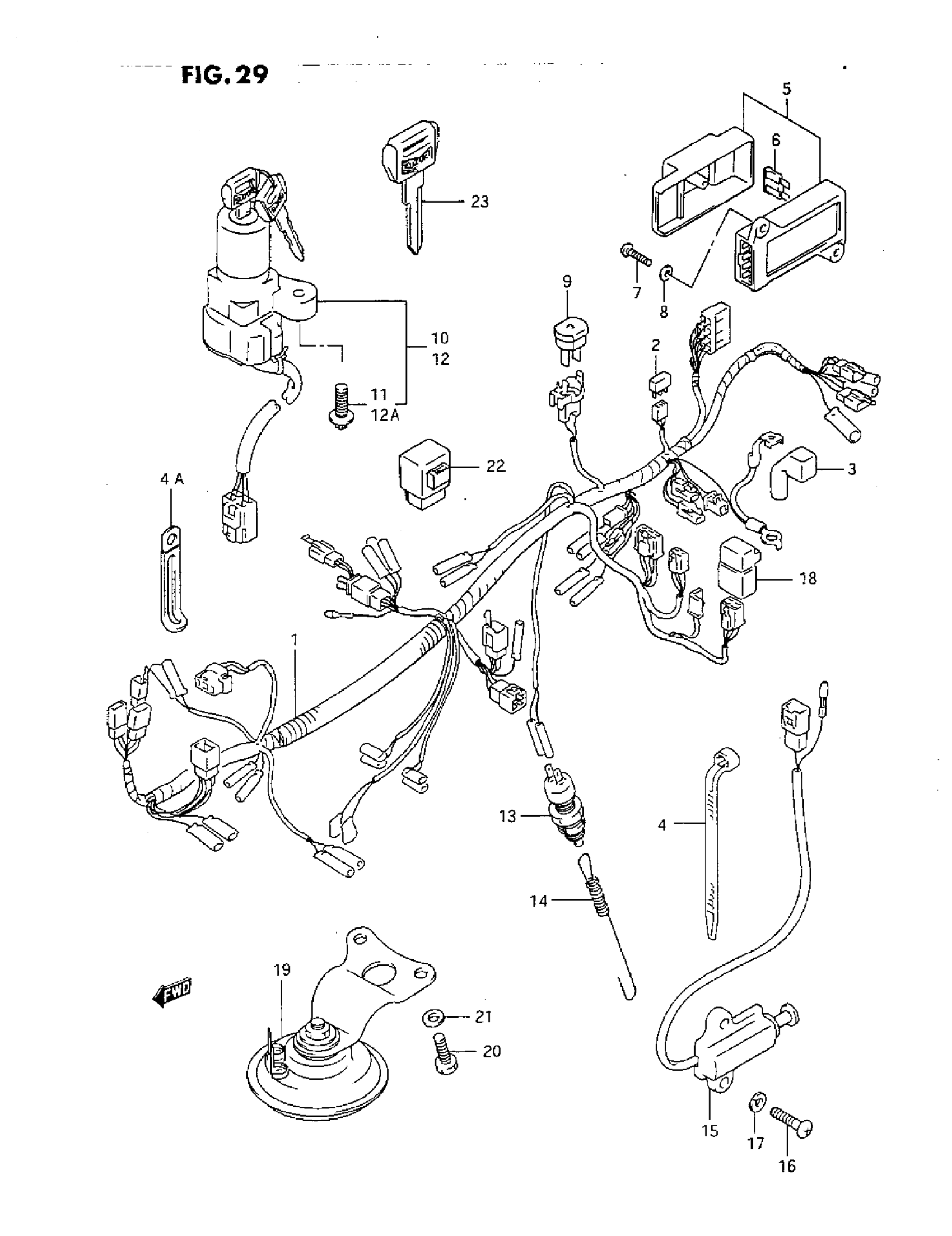

Find the part on the Wiring Harness diagram for your 1993 Suzuki GSX600F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
NO DESCRIPTION AVAILABLE | MODEL J This part replaces 36610-19C01.
36610-19C02
1
HARNESS, WIRING | MODEL K This part replaces 36610-19C10.
36610-19C12
1
HARNESS, WIRING | MODEL L This part replaces 36610-19C11.
36610-19C12
1
HARNESS, WIRING | MODEL M/N
36610-19C12
1
HARNESS, WIRING | MODEL P/R
36610-19C40
1
HARNESS, WIRING | MODEL L, CALIFORNIA ONLY This part replaces 36610-19C20.
36610-19C21
1
HARNESS, WIRING | MODEL M/N, CALIFORNIA ONLY
36610-19C21
1
HARNESS, WIRING | MODEL P/R, CALIFORNIA ONLY
36610-19C50
3
$6.22
4
CLAMP
09407-10403
4
CLAMP (L:125)
09407-14403
4
CLAMP (L:165) | MODEL J
09407-18402
4
CLAMP (L:165) | MODEL K
09407-18402
4
CLAMP (L:165) | MODEL L/M/N
09407-18402
4
CLAMP (L:165) | MODEL P
09407-18402
5
BOX ASSY, FUSE | MODEL J/K/L/M/N This part replaces 36740-05A01.
36740-27A00
6
.FUSE (25A) | MODEL P/R This part replaces 09481-25101.
09481-25103
8
.WASHER This part replaces 08322-21066.
08322-0106B
16
BOLT | MODEL R This part replaces 01550-06203.
01550-0620A
18
RELAY ASSY, SIDE STAND This part replaces 38740-24B10.
38740-24X50
19
HORN ASSY | MODEL J/K/L/M/N This part replaces 38500-19C00.
38500-19C01
19
HORN ASSY | MODEL P/R
38500-19C01
20
BOLT | MODEL N/P This part replaces 01117-06165.
01550-0616A
20
BOLT | MODEL R This part replaces 01550-06163.
01550-0616A
21
.WASHER This part replaces 08322-21064.
08322-0106B
22
CONTROL, FAN MOTOR | CALIFORNIA ONLY
38870-48B00
23
LOCK SET | CALIFORNIA ONLY MODEL J-P This part replaces 37100-17875.
37000-19841
23
LOCK SET | MODEL J-P This part replaces 37100-19870.
37000-19851
23
LOCK SET | CALIFORNIA ONLY MODEL R This part replaces 37000-19840.
37000-19841
23
LOCK SET | MODEL R This part replaces 37000-19850.
37000-19851
