Description

Price

1

CALIPER ASSY, REAR This part replaces 69100-19C00.

69100-01D04-999

$322.90

1

PISTON SET This part replaces 69100-27820.

69100-27821

$101.26

2

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$8.68

3

BOOT

59108-16700

$9.25

4

SEAL

69107-34200

$10.25

5

PAD SET This part replaces 69130-20A10.

69100-20810

$54.02

6

BOLT This part replaces 69145-16700.

59145-05C50

$7.85

7

SPRING

59143-16700

$5.54

8

PIN

69141-45000

$5.09

9

.CLIP, PAD PIN

69142-45000

$4.15

10

COVER

59151-16701

$13.15

11

BLEEDER

59121-18410

$8.35

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.94

13

SHIM

59371-33420

$17.08

14

BOLT This part replaces 01517-08304.

01550-0830A

$2.82

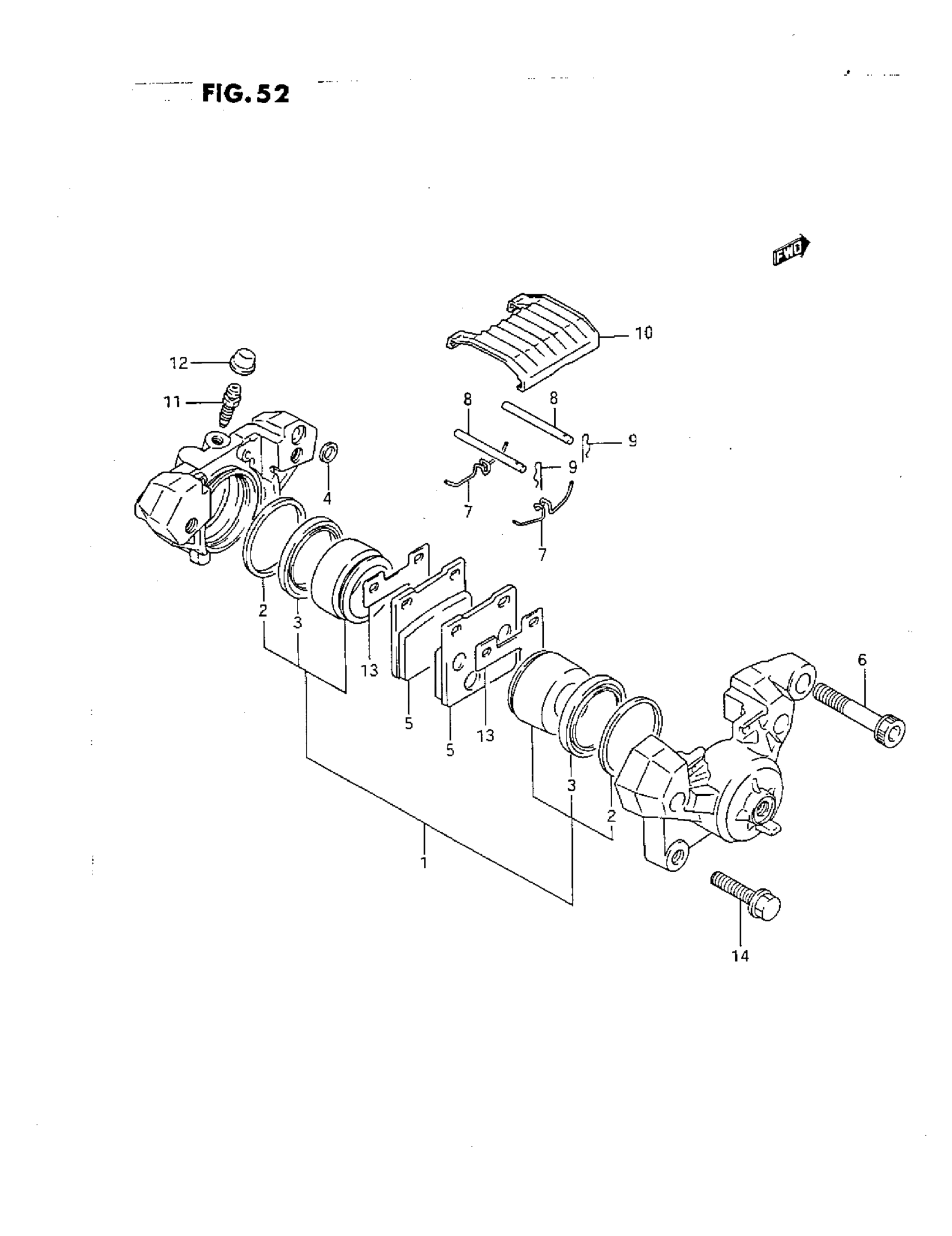

Suzuki GSX600F (1993) REAR CALIPER (J) Diagram
