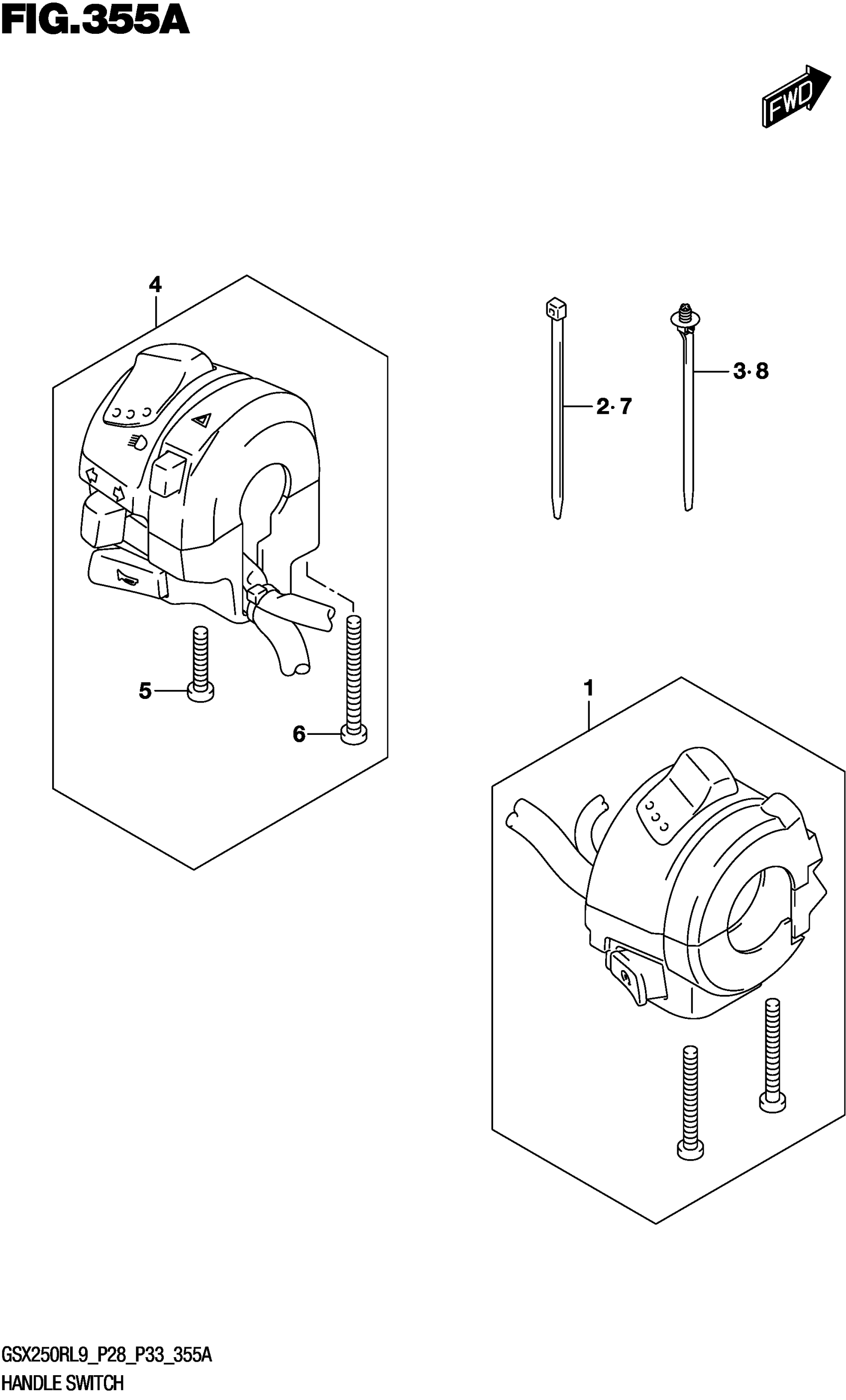

Suzuki GSX250RL9 (2019) HANDLE SWITCH Diagram

#

Description

Price

1

SWITCH ASSY,HANDLE,R This part replaces 37200-20KB0.

37200-20KB1

$170.88

2

CLAMP (L:250)

09407-25402

$4.32

3

CLAMP,SEAT LOCK CABLE NO.3

36990-39J00

$2.17

4

SWITCH ASSY,HAN This part replaces 37400-48HD0.

37400-48HD1

$157.43

5

.SCREW

02112-0525B

$1.94

6

.SCREW

02112-0545B

$2.32

7

CLAMP (L:250)

09407-25402

$4.32

8

CLAMP,SEAT LOCK CABLE NO.3

36990-39J00

$2.17
