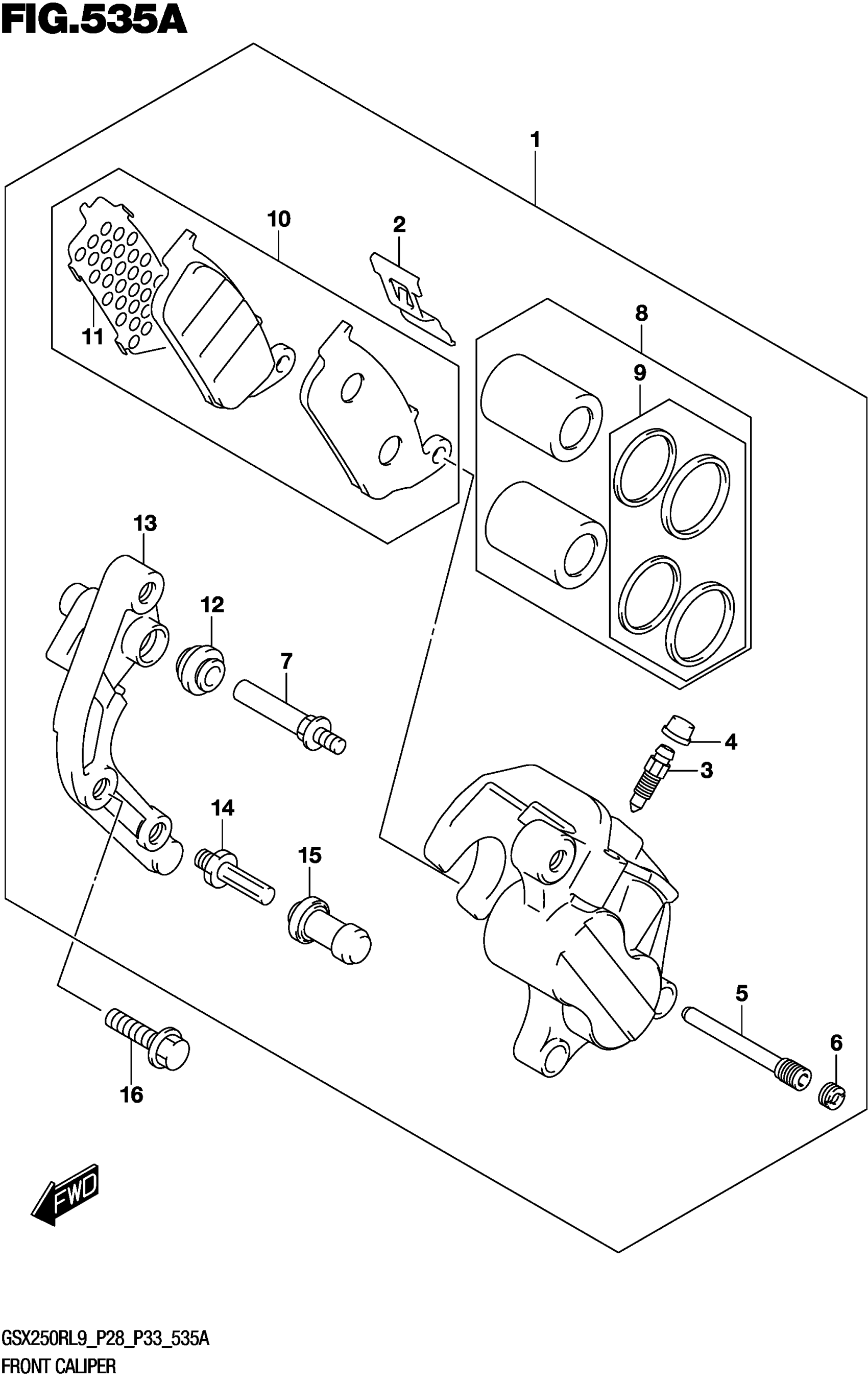

Find the part on the Front Caliper diagram for your 2019 Suzuki GSX250RL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki GSX250RL9 Front Caliper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CALIPER ASSY, FRONT LH

59300-48H11

1
Out of stock

2

.SPRING,PAD

59115-21E10

1
Out of stock

3

.BLEEDER

59121-01A00

1
Out of stock

4

.CAP,BLEEDER

59122-46H00

1
Out of stock

5

.PIN,HANGER

59145-21E10

1
Out of stock

6

.PLUG,PIN

59146-21E10

1

$6.13

In stock

7

.PIN

59187-21E10

1
Out of stock

8

.PISTON SET

59300-48820

1
Out of stock

9

..SEAL SET,PISTON

69100-36810

1

$9.26

In stock

10

.PAD SIM SET This part replaces 59301-48811.

59300-48830

1
Out of stock

11

..SHIM

59113-48H00

1
Out of stock

12

.BOOT

59303-14500

1
Out of stock

13

.BRACKET

59350-48H00

1
Out of stock

14

.PIN

59382-14500

1

$9.18

In stock

15

.BOOT

59386-13A00

1
Out of stock

16

BOLT

01550-0830A

2
Out of stock
