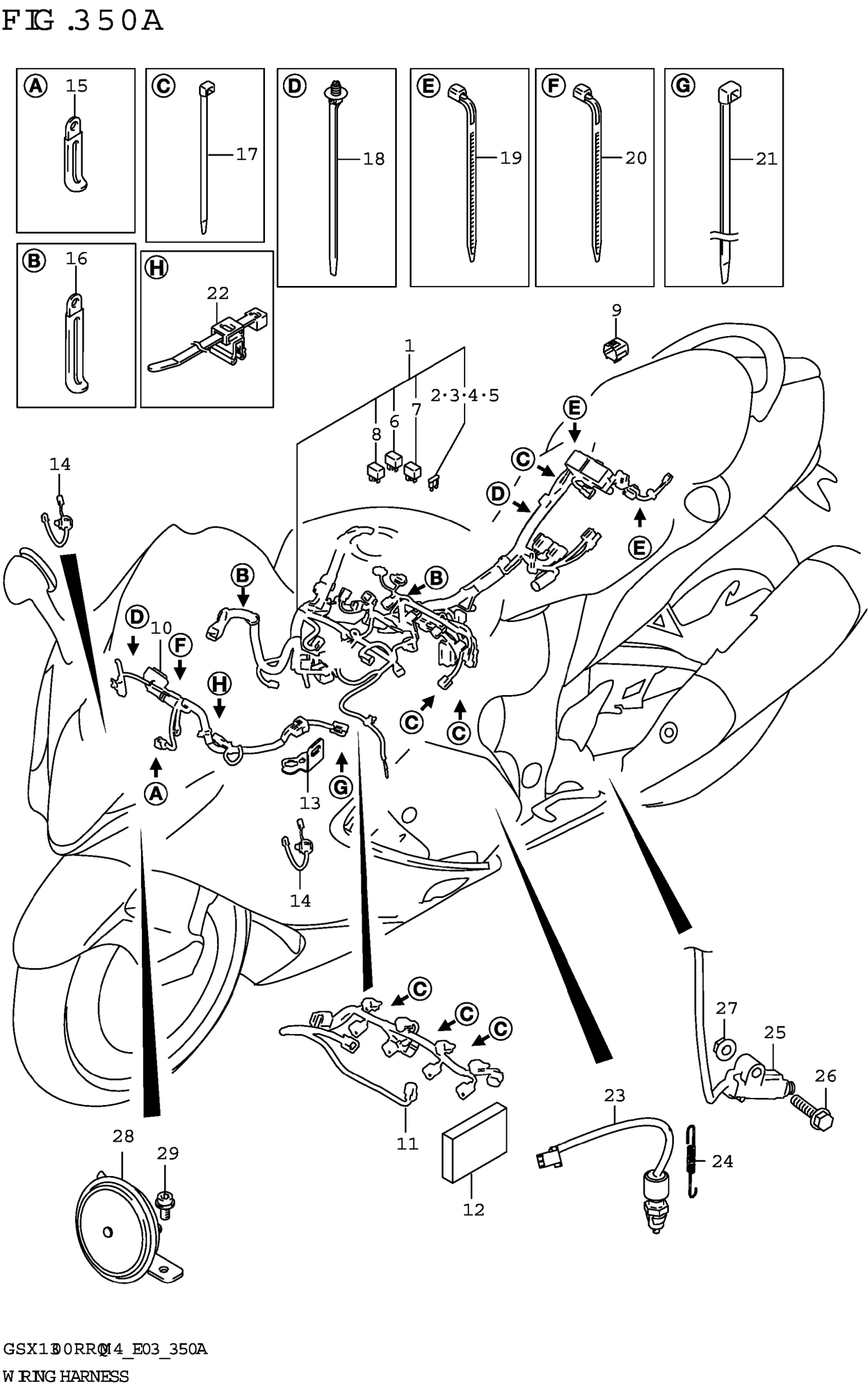

Suzuki GSX1300RRQM4 (2024) WIRING HARNESS (E33) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-10L10

$1,023.87

2

.FUSE (7.5A)

09481-07504

$1.28

3

.FUSE (10A)

09481-10504

$2.04

4

.FUSE (15A)

09481-15504

$2.57

5

.FUSE (30A)

09481-30504

$1.99

6

.RELAY ASSY | FUEL PUMP

38860-76F01

$31.02

7

.RELAY ASSY | FAN MOTOR

38860-76F01

$31.02

8

.RELAY ASSY | SUB START

38860-76F01

$31.02

9

CAP,OBD CONNECTOR

36654-28K00

$9.85

10

HARNESS,WIRING NO.2

36620-10L00

$210.13

11

HARNESS,WIRING NO.3

36630-10L00

$216.67

12

CUSHION,HARNESS WIRING

36652-10L00

$4.22

13

BRACKET,WIRING HARNESS

36672-10L00

$8.28

14

WIRE, FAN MOTOR LEAD

36852-10L00

$34.67

15

CLAMP (L:45)

09404-06429

$1.82

16

CLAMP (L:95)

09407-11401

$2.87

17

CLAMP (L:145)

09407-14407

$2.80

18

CLAMP (L:170)

09407-17403

$4.63

19

CLAMP (L:190)

09407-19401

$3.32

20

CLAMP

09407-19408

$3.80

21

CLAMP

09407-38402

$4.83

22

CLAMP

36990-10L00

$3.50

23

SWITCH ASSY,STOP LAMP

37740-10L00

$16.93

24

SPRING

09443-06012

$2.90

25

SWITCH ASSY,SIDE STAND This part replaces 37840-24F01.

37840-24F02

$66.52

26

BOLT (8X35)

09103-08357

$4.53

27

NUT

08316-1008B

$2.65

28

HORN ASSY

38500-24F40

$43.27

29

BOLT

07120-0612A

$2.50
